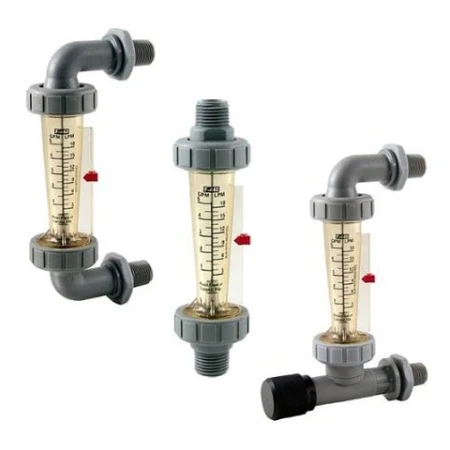

Blue And White (F-30100P) 5 - 40 GPM Flow Meter; 1" Saddle

The Blue & White F-30100P flow meter delivers accurate, real-time monitoring of flow rates from 5 to 40 GPM through a durable one-piece machined acrylic body. Built with corrosion-resistant internals and a dual-scale display showing both GPM and LPM, this 1-inch saddle mount meter is engineered for reliable performance in commercial and residential water systems.
SPECIFICATIONS

Blue & White F-30100P Flow Meter Technical Details

Model Number F-30100P
Flow Range 5 - 40 GPM (19 - 151 LPM)
Connection Size 1 inch Male NPT
Mounting Type Saddle panel mount
Body Material Machined and polished acrylic
Internal Components Corrosion and wear resistant
Display Scale Dual scale (GPM & LPM)
Construction One-piece design
INSTALLATION & USE

Mounting the F-30100P Flow Meter

  1. Select a panel mount location where the acrylic meter body is visible and accessible for monitoring flow rates during system operation.
  2. Install the saddle mounting bracket to the panel and secure the flow meter body into the bracket according to manufacturer specifications.
  3. Thread the 1 inch male NPT connections into your existing piping, ensuring proper orientation for flow direction indicated on the meter body.
  4. Pressurize the system gradually and check all connections for leaks before bringing the system to full operating pressure.
  5. Verify flow readings against expected system performance during initial startup and record baseline GPM for future reference.
COMPATIBILITY

Application Range

The Blue & White F-30100P flow meter is compatible with commercial reverse osmosis systems, filtration manifolds, irrigation systems, and any water treatment application requiring flow monitoring between 5 and 40 GPM. The 1 inch male NPT adapters fit standard threaded fittings and allow integration into existing plumbing without specialized connectors. Ideal for monitoring pre-filter flow rates, system output verification, and troubleshooting pressure or membrane performance issues in mid-sized water treatment installations.

🔧 Pro tip: Install the flow meter upstream of filters or membranes to monitor input flow and detect fouling or pressure loss early. A declining GPM reading under constant inlet pressure indicates it's time to replace filter cartridges or service the membrane.
The Blue & White F-30100P flow meter delivers accurate, real-time monitoring of flow rates from 5 to 40 GPM through a durable one-piece machined acrylic body. Built with corrosion-resistant internals and a dual-scale display showing both GPM and LPM, this 1-inch saddle mount meter is engineered for reliable performance in commercial and residential water systems.
SPECIFICATIONS

Blue & White F-30100P Flow Meter Technical Details

Model Number F-30100P
Flow Range 5 - 40 GPM (19 - 151 LPM)
Connection Size 1 inch Male NPT
Mounting Type Saddle panel mount
Body Material Machined and polished acrylic
Internal Components Corrosion and wear resistant
Display Scale Dual scale (GPM & LPM)
Construction One-piece design
INSTALLATION & USE

Mounting the F-30100P Flow Meter

  1. Select a panel mount location where the acrylic meter body is visible and accessible for monitoring flow rates during system operation.
  2. Install the saddle mounting bracket to the panel and secure the flow meter body into the bracket according to manufacturer specifications.
  3. Thread the 1 inch male NPT connections into your existing piping, ensuring proper orientation for flow direction indicated on the meter body.
  4. Pressurize the system gradually and check all connections for leaks before bringing the system to full operating pressure.
  5. Verify flow readings against expected system performance during initial startup and record baseline GPM for future reference.
COMPATIBILITY

Application Range

The Blue & White F-30100P flow meter is compatible with commercial reverse osmosis systems, filtration manifolds, irrigation systems, and any water treatment application requiring flow monitoring between 5 and 40 GPM. The 1 inch male NPT adapters fit standard threaded fittings and allow integration into existing plumbing without specialized connectors. Ideal for monitoring pre-filter flow rates, system output verification, and troubleshooting pressure or membrane performance issues in mid-sized water treatment installations.

🔧 Pro tip: Install the flow meter upstream of filters or membranes to monitor input flow and detect fouling or pressure loss early. A declining GPM reading under constant inlet pressure indicates it's time to replace filter cartridges or service the membrane.
