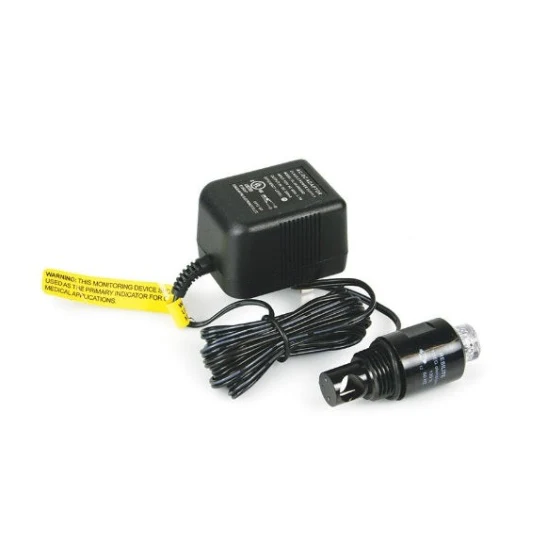

Clack (R7016P-20K) 20K OHM Test Light 110V; 1-2" MIP
Technical Details
| Model Number | R7016P-20K |
| Manufacturer | Clack Corporation |
| Resistance | 20,000 OHM |
| Voltage | 110V AC |
| Connection Size | 1/2" MIP (Male Iron Pipe) |
| Application | Electrical continuity testing |
| Primary Use | Softener control valve diagnostics |
| Thread Type | NPT male threads |
Testing Procedure
- Disconnect power to the water softener control valve before beginning any electrical testing to ensure safety.
- Thread the R7016P-20K test light into the appropriate 1/2" FIP port on the control valve or timer assembly, ensuring a snug hand-tight connection.
- Restore power to the system and observe the test light during valve operation to verify proper electrical signal transmission through the circuit.
- Note illumination patterns during each cycle phase to identify potential wiring faults or component failures in the control system.
System Applications
The Clack R7016P-20K test light is designed specifically for use with Clack brand water softener control valves and timers, including WS1, WS1.25, WS1.5, and V3000 series valve bodies. The 20K OHM resistance makes it suitable for testing standard residential 110V systems without overloading delicate control circuits. This diagnostic tool is essential for technicians servicing automatic regeneration controls, helping pinpoint electrical issues in motor-driven pistons, solenoids, and timer mechanisms. The 1/2" MIP threading fits standard test ports found on most Clack valve configurations manufactured after 2005.
