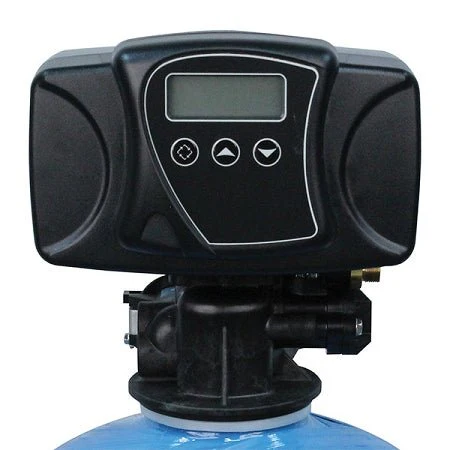

Fleck 5600 SXT 5 Cycle, Softener Meter Valve, 24 Volts, #1 Injector
Key Performance Metrics
Valve Construction & Electrical
| Valve Body Material | UV-resistant fiber-reinforced polymer |
| Injector System | #1 Injector, 1600 brine system (removable from exterior) |
| Regeneration Cycles | 5 cycles with double backwash, 180 minutes total time available |
| Meter Accuracy | ±5% accuracy between 0.25–15 GPM flow rates |
| Drain Line Connection | 1/2" NPTF (DLFC not included, see compatibility notes) |
| Brine Line Connection | 3/8" (1600 series) |
| Temperature Range | 34–110°F operating temperature |
Installation Requirements
The Fleck 5600 SXT 24V valve mounts to any 2-1/2" - 8 NPSM threaded tank with a 1.050" distributor tube and sits 7" above the tank top. This model ships without a Drain Line Flow Control (DLFC) button, which must be selected based on tank size: use 1.2 GPM for 8"×44" tanks, 1.5–2.0 GPM for 9"×48" systems, 2.4 GPM for 10"×54", 3.0 GPM for 12"×52", and 3.5–5.0 GPM for larger 13"×54" to 14"×65" vessels. The modular injector/drain assembly allows for quick servicing without removing the valve from the tank. Annual power consumption is minimal thanks to the single-motor design that handles both timekeeping and valve actuation. Replacement part number 94SV-56SXM24V.
