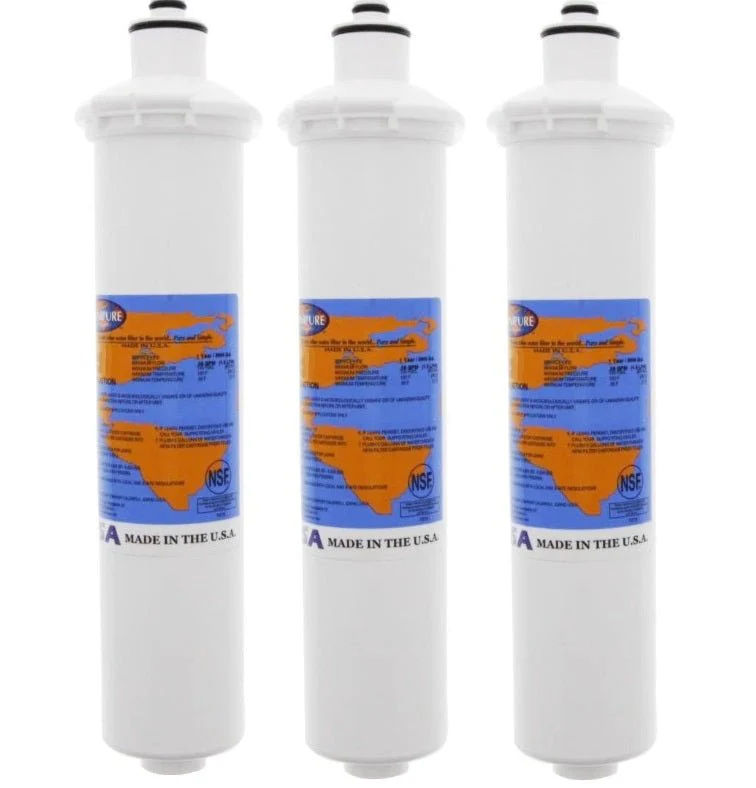

Omnipure - E5605 - 12" x 2.5" E-Series Sediment Filter - 5 Micron

The Omnipure E5605 is a 12" x 2.5" meltblown polypropylene sediment filter that captures dirt, sand, and particles down to 5 microns. Engineered with a universal cap design, this E-Series filter works with Everpure, Omnipure, and other standard permanent heads for straightforward replacement.
SPECIFICATIONS

Omnipure E5605 Technical Details

Dimensions 12" L x 2.5" W
Micron Rating 5 Micron
Flow Rate 0.5 GPM
Max Pressure 125 PSI
Max Temperature 100°F
Media Type Meltblown Polypropylene
Service Life 6 Months (typical)
Certification NSF Standard 42 Tested
INSTALLATION & USE

Replacing Your E-Series Filter

  1. Shut off water supply and relieve pressure by opening the filter housing or downstream faucet.
  2. Remove the old filter cartridge from the permanent head or housing, noting the orientation of the universal cap.
  3. Insert the Omnipure E5605 into the housing, ensuring the universal cap seats properly with the head.
  4. Close the housing, turn water supply back on, and check for leaks before returning system to full service.
  5. Mark your calendar to replace the filter in 6 months or when pressure drop indicates reduced flow.
COMPATIBILITY

Universal Cap Design

The E5605 features a universal cap compatible with Everpure, Omnipure ELF Series, and other standard permanent filter heads using 12" x 2.5" cartridges. This filter is suitable for both whole-house sediment pre-filtration and reverse osmosis system applications where 5 micron particulate removal is required. Verify your existing head accepts standard 2.5" diameter cartridges before ordering.

🔧 Pro Tip: Always flush the new filter for 3-5 minutes after installation to clear any loose carbon fines or manufacturing residue before connecting to drinking water lines or RO systems.
