Osmotik- TQ56 - Q-Series PuROTwist Replacement Encapsulated Reverse Osmosis Membrane with Built In Flow Control

Product image 1
1 / 3

Osmotik- TQ56 - Q-Series PuROTwist Replacement Encapsulated Reverse Osmosis Membrane with Built In Flow Control

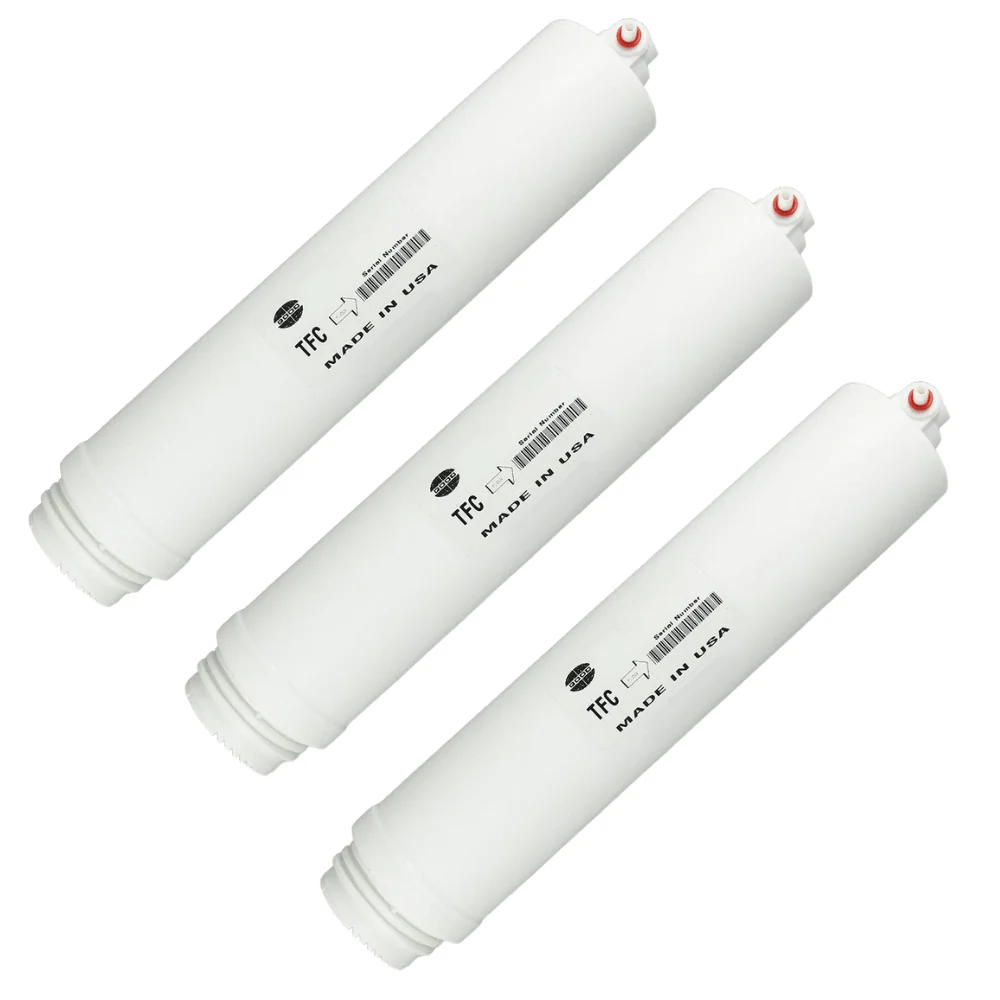

The Omnipure TQ56 Q-Series encapsulated reverse osmosis membrane delivers 50 GPD filtration with integrated flow control and check valve for PuROTwist 4000 and 3000 systems. This thin film composite membrane simplifies installation by combining three critical components into one twist-and-lock cartridge.
SPECIFICATIONS

Omnipure TQ56 Membrane Details

Model Number TQ56-50FC (Osmotik TQ56)
Daily Production 50 gallons per day (GPD)
Dimensions 12.75" length × 2.5" diameter
Membrane Type Thin Film Composite (TFM)
Built-In Components Flow restrictor and check valve
Replacement Interval Every 24 months
Connection Type Q-Series twist-lock encapsulated
Application Residential reverse osmosis systems
INSTALLATION & USE

Replacing Your Q-Series Membrane

  1. Shut off water supply to the RO system and relieve system pressure by opening the faucet until water stops flowing
  2. Twist the old TQ56 membrane counterclockwise to unlock, then pull straight out from the manifold housing
  3. Insert the new Omnipure TQ56 membrane into the housing, aligning the tabs, and twist clockwise until it locks into place
  4. Turn water supply back on and check for leaks at the connection points before returning system to service
  5. Flush the new membrane by running water through the system for 30 minutes before use
COMPATIBILITY

System Compatibility

The TQ56 membrane works with Omnipure PuROTwist 4000 and PuROTwist 3000 reverse osmosis systems, as well as any residential RO system designed for Q-Series encapsulated filters. The built-in flow restrictor is calibrated for 50 GPD production, eliminating the need for separate inline flow control components. This membrane also fits Omnipure EZ-450 and EZ-450P housings that accept Q-Series cartridges.

🔧 The integrated check valve prevents backflow that can damage the membrane, but verify your system doesn't have a redundant check valve downstream that could create excessive back pressure and reduce production capacity.
The Omnipure TQ56 Q-Series encapsulated reverse osmosis membrane delivers 50 GPD filtration with integrated flow control and check valve for PuROTwist 4000 and 3000 systems. This thin film composite membrane simplifies installation by combining three critical components into one twist-and-lock cartridge.
SPECIFICATIONS

Omnipure TQ56 Membrane Details

Model Number TQ56-50FC (Osmotik TQ56)
Daily Production 50 gallons per day (GPD)
Dimensions 12.75" length × 2.5" diameter
Membrane Type Thin Film Composite (TFM)
Built-In Components Flow restrictor and check valve
Replacement Interval Every 24 months
Connection Type Q-Series twist-lock encapsulated
Application Residential reverse osmosis systems
INSTALLATION & USE

Replacing Your Q-Series Membrane

  1. Shut off water supply to the RO system and relieve system pressure by opening the faucet until water stops flowing
  2. Twist the old TQ56 membrane counterclockwise to unlock, then pull straight out from the manifold housing
  3. Insert the new Omnipure TQ56 membrane into the housing, aligning the tabs, and twist clockwise until it locks into place
  4. Turn water supply back on and check for leaks at the connection points before returning system to service
  5. Flush the new membrane by running water through the system for 30 minutes before use
COMPATIBILITY

System Compatibility

The TQ56 membrane works with Omnipure PuROTwist 4000 and PuROTwist 3000 reverse osmosis systems, as well as any residential RO system designed for Q-Series encapsulated filters. The built-in flow restrictor is calibrated for 50 GPD production, eliminating the need for separate inline flow control components. This membrane also fits Omnipure EZ-450 and EZ-450P housings that accept Q-Series cartridges.

🔧 The integrated check valve prevents backflow that can damage the membrane, but verify your system doesn't have a redundant check valve downstream that could create excessive back pressure and reduce production capacity.
Select Production Rate
Select Choose
From $29.25

Original: $83.56

-65%
Osmotik- TQ56 - Q-Series PuROTwist Replacement Encapsulated Reverse Osmosis Membrane with Built In Flow Control—

$83.56

$29.25

Description

The Omnipure TQ56 Q-Series encapsulated reverse osmosis membrane delivers 50 GPD filtration with integrated flow control and check valve for PuROTwist 4000 and 3000 systems. This thin film composite membrane simplifies installation by combining three critical components into one twist-and-lock cartridge.
SPECIFICATIONS

Omnipure TQ56 Membrane Details

Model Number TQ56-50FC (Osmotik TQ56)
Daily Production 50 gallons per day (GPD)
Dimensions 12.75" length × 2.5" diameter
Membrane Type Thin Film Composite (TFM)
Built-In Components Flow restrictor and check valve
Replacement Interval Every 24 months
Connection Type Q-Series twist-lock encapsulated
Application Residential reverse osmosis systems
INSTALLATION & USE

Replacing Your Q-Series Membrane

  1. Shut off water supply to the RO system and relieve system pressure by opening the faucet until water stops flowing
  2. Twist the old TQ56 membrane counterclockwise to unlock, then pull straight out from the manifold housing
  3. Insert the new Omnipure TQ56 membrane into the housing, aligning the tabs, and twist clockwise until it locks into place
  4. Turn water supply back on and check for leaks at the connection points before returning system to service
  5. Flush the new membrane by running water through the system for 30 minutes before use
COMPATIBILITY

System Compatibility

The TQ56 membrane works with Omnipure PuROTwist 4000 and PuROTwist 3000 reverse osmosis systems, as well as any residential RO system designed for Q-Series encapsulated filters. The built-in flow restrictor is calibrated for 50 GPD production, eliminating the need for separate inline flow control components. This membrane also fits Omnipure EZ-450 and EZ-450P housings that accept Q-Series cartridges.

🔧 The integrated check valve prevents backflow that can damage the membrane, but verify your system doesn't have a redundant check valve downstream that could create excessive back pressure and reduce production capacity.
