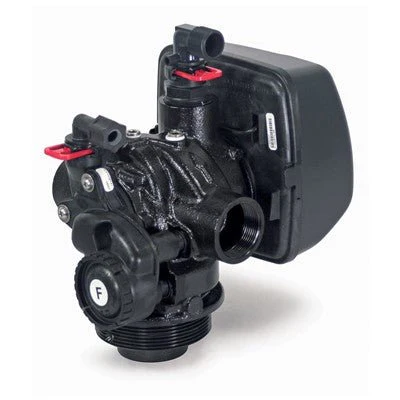

Clack (V15EEBTZ)-C-Series 1-1/2 Filter Valve
Clack V15EEBTZ C-Series 1-1/2" Filter Valve
Lead-free brass control valve engineered for mid-size commercial and industrial water treatment applications with intelligent microprocessor control and flexible regeneration programming
Built for commercial applications that demand precision and reliability
Six-Cycle Regeneration
Controlled backwash, downflow brining with slow rinse, second backwash, fast rinse, and refill sequence ensures thorough media cleaning and optimal performance cycle after cycle

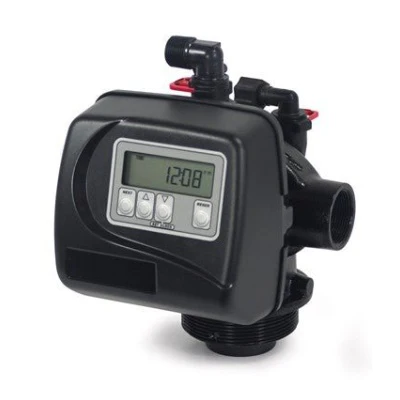

Solid State Microprocessor
Front panel displays time of day, days until regeneration, volume remaining, current flow rate, and total volume used. Four regeneration initiation methods including meter immediate, meter delayed, time clock delayed, or pressure differential
Commercial Flow Capacity
Handles 60 GPM service flow and 50 GPM backwash through 1.5" lead-free brass construction. Stainless steel meter assembly tracks usage for precision control
Reliable Power Backup
DC drive motor with 12-volt AC adapter for safe installation. Coin cell lithium battery provides 8-hour memory backup during power interruptions
Optional Double Backwash
Available double backwash feature delivers enhanced regeneration efficiency and superior media bed cleaning for high-demand applications
Application specifications

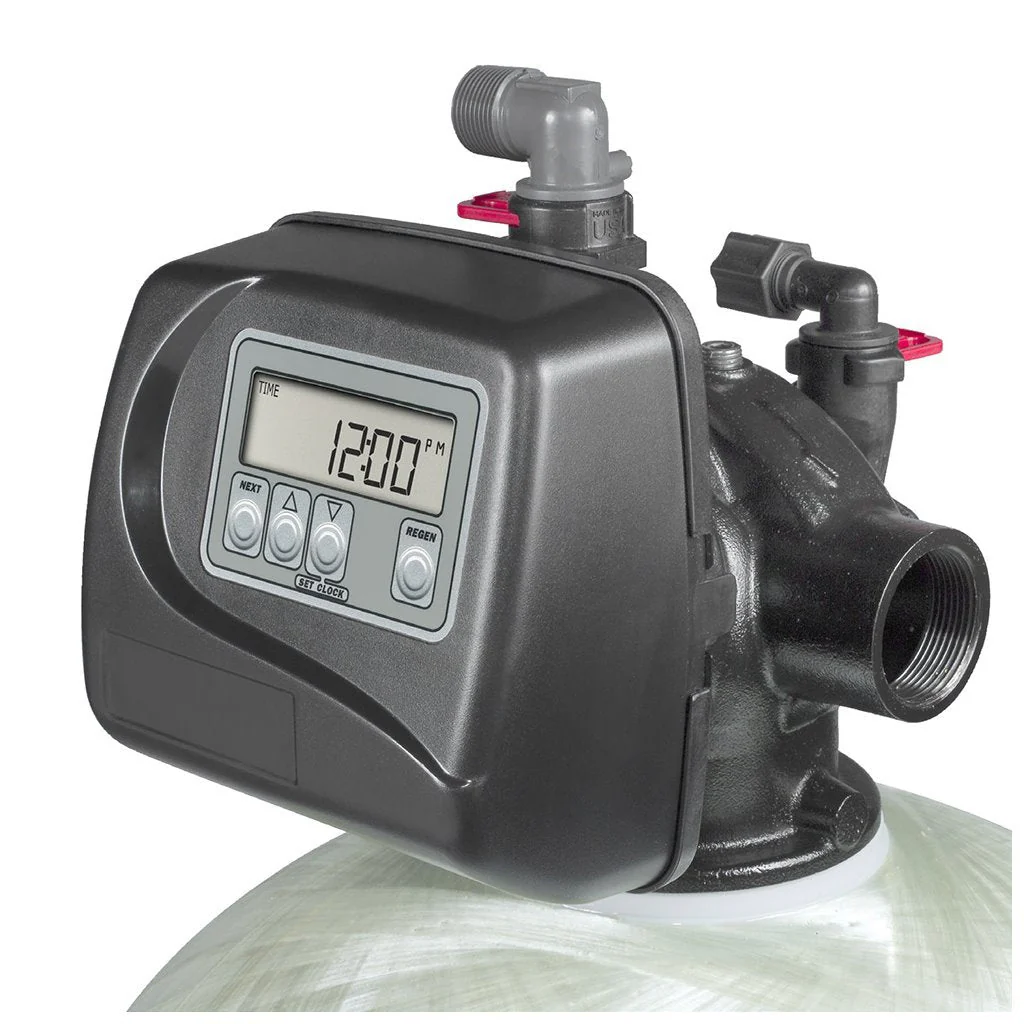

The Clack WS1.5EE control valve (model V15EEBTZ) is designed for top-mount installation on mid-size commercial and industrial softeners, carbon filters, and media filtration tanks. The 1.5" port size accommodates flow rates suitable for schools, restaurants, car washes, light manufacturing, and multi-unit residential buildings. Post-treated water regenerant refill capability allows for efficient brine mixing using softened water. Note that brine port hardware is not included and must be ordered separately based on your specific tank and system configuration.
Regeneration cycle configuration
Backwash & Brine Draw
Controlled backwash lifts and cleans media bed, followed by downflow brining with slow rinse for thorough ion exchange regeneration
Second Backwash & Fast Rinse
Optional second backwash further cleans media, then fast rinse removes excess brine and prepares system for return to service
Refill & Service
Brine tank refills with post-treated water, then valve returns to downflow service mode until next programmed regeneration
Commercial Grade
Lead-free brass construction meets NSF standards for potable water contact in commercial installations
Fully Adjustable
Programmable cycle times and regeneration triggers adapt to your specific water conditions and usage patterns
Easy Service Access
Front-mounted control panel simplifies programming and diagnostics without removing valve from tank
Data Retention
Totalizer tracks cumulative volume treated for maintenance scheduling and system performance analysis
