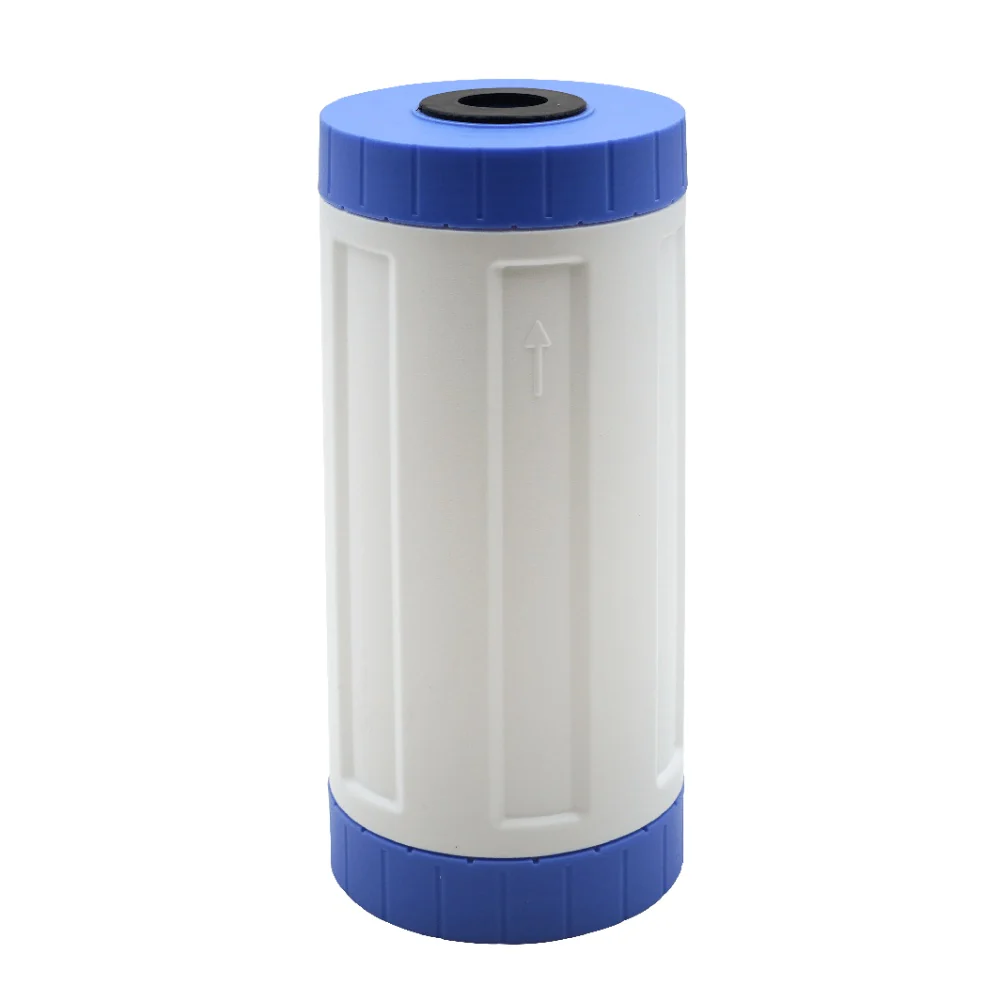

Compatible to Intelifil (IF-SM-WS010B) 10"X4.5" Big Blue Water Softening Cartridge 47,000 mg-L by IPW Industries
Technical Details
| Dimensions | 10 inch x 4.5 inch (Big Blue standard) |
| Filtration Media | Dark cation bead resin (softening grade) |
| Hardness Capacity | 47,000 mg/L total mineral removal |
| Micron Rating | 10 micron nominal |
| Temperature Range | 40°F to 100°F |
| Pressure Range | 25 PSI to 100 PSI |
| Compatible With | Intelifil IF-SM-WS010B, standard 10" Big Blue housings |
| Manufacturer | IPW Industries for Watts |
Cartridge Replacement Process
- Shut off water supply and relieve pressure from the Big Blue housing by opening a downstream faucet or using the pressure release button if equipped.
- Unscrew the housing sump using a filter wrench, remove the old cartridge, and clean the sump and O-ring with water (replace O-ring if worn or cracked).
- Insert the new IPW softening cartridge into the housing, ensuring it seats properly on the center standpipe.
- Reinstall the sump hand-tight plus a quarter turn with the wrench, then slowly turn water back on and check for leaks.
- Flush the cartridge for 3-5 minutes to remove any loose resin fines before returning to normal use.
Housing & System Fit
This cartridge is engineered as a direct replacement for the Intelifil IF-SM-WS010B and fits all standard 10 inch Big Blue filter housings with 4.5 inch diameter capacity. It works in whole-house, point-of-entry, or commercial applications where localized water softening is required without installing a traditional salt-based system. Use compensated hardness testing that accounts for all dissolved minerals in your source water to accurately estimate service life and replacement intervals. Not for use in reverse osmosis systems or applications requiring complete demineralization.
Technical Details
| Dimensions | 10 inch x 4.5 inch (Big Blue standard) |
| Filtration Media | Dark cation bead resin (softening grade) |
| Hardness Capacity | 47,000 mg/L total mineral removal |
| Micron Rating | 10 micron nominal |
| Temperature Range | 40°F to 100°F |
| Pressure Range | 25 PSI to 100 PSI |
| Compatible With | Intelifil IF-SM-WS010B, standard 10" Big Blue housings |
| Manufacturer | IPW Industries for Watts |
Cartridge Replacement Process
- Shut off water supply and relieve pressure from the Big Blue housing by opening a downstream faucet or using the pressure release button if equipped.
- Unscrew the housing sump using a filter wrench, remove the old cartridge, and clean the sump and O-ring with water (replace O-ring if worn or cracked).
- Insert the new IPW softening cartridge into the housing, ensuring it seats properly on the center standpipe.
- Reinstall the sump hand-tight plus a quarter turn with the wrench, then slowly turn water back on and check for leaks.
- Flush the cartridge for 3-5 minutes to remove any loose resin fines before returning to normal use.
Housing & System Fit
This cartridge is engineered as a direct replacement for the Intelifil IF-SM-WS010B and fits all standard 10 inch Big Blue filter housings with 4.5 inch diameter capacity. It works in whole-house, point-of-entry, or commercial applications where localized water softening is required without installing a traditional salt-based system. Use compensated hardness testing that accounts for all dissolved minerals in your source water to accurately estimate service life and replacement intervals. Not for use in reverse osmosis systems or applications requiring complete demineralization.
