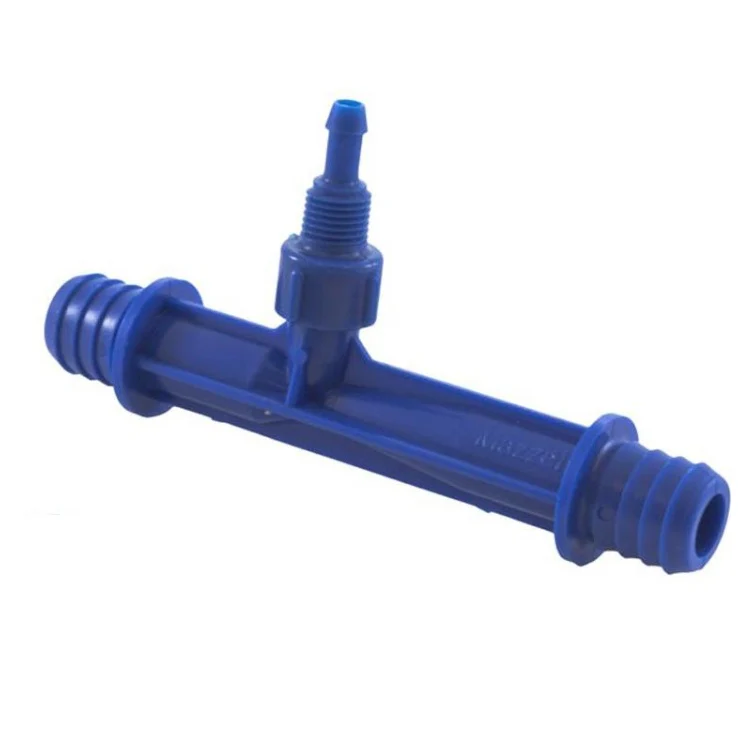

Mazzei - ISO 287 Series - 15mm Male BSPT Inlet/Outlet Connections (0.25" Barbed Suction Port Cap)
Mazzei ISO 287 Series Injector Specs
Performance & Materials
| Series | ISO 287 (15mm BSPT connections) |
| Operating Principle | Differential pressure venturi with microbubble generation |
| Vacuum Requirement | Minimal pressure differential between inlet and outlet |
| Material Options | Polypropylene (PP), PVDF, or ECTFE based on chemical compatibility |
| Thread Compatibility | 15mm Male BSPT interchangeable with 0.5" Male NPT PVDF injectors |
| Application Range | Wide pressure range with optimized suction and mixing performance |
| Microbubble Technology | Internal vanes create thousands of microbubbles for superior gas dissolution |
Where This Injector Works
The Mazzei ISO 287 Series is designed for inline chemical dosing, ozone injection, air dissolution, and fertilizer injection in water treatment, aquaculture, agriculture, and industrial process systems. The 15mm Male BSPT connections accommodate metric plumbing systems common in international installations, while the 0.25" barbed suction port allows flexible connection to chemical feed lines or gas sources. Material selection depends on your chemistry: polypropylene for general acids and alkalis, PVDF for ozone and chlorine resistance with higher temperature and pressure capabilities, or ECTFE for extreme alkaline environments above pH 10. The venturi design eliminates pump maintenance and provides consistent performance across varying flow conditions. Note that BSPT threads measure larger than their nominal size—15mm BSPT measures approximately 0.518" in actual diameter.
