Omnipure - ELF 5MSED - 12.5" x 4" ELF-Series 5 Micron Sediment Filter

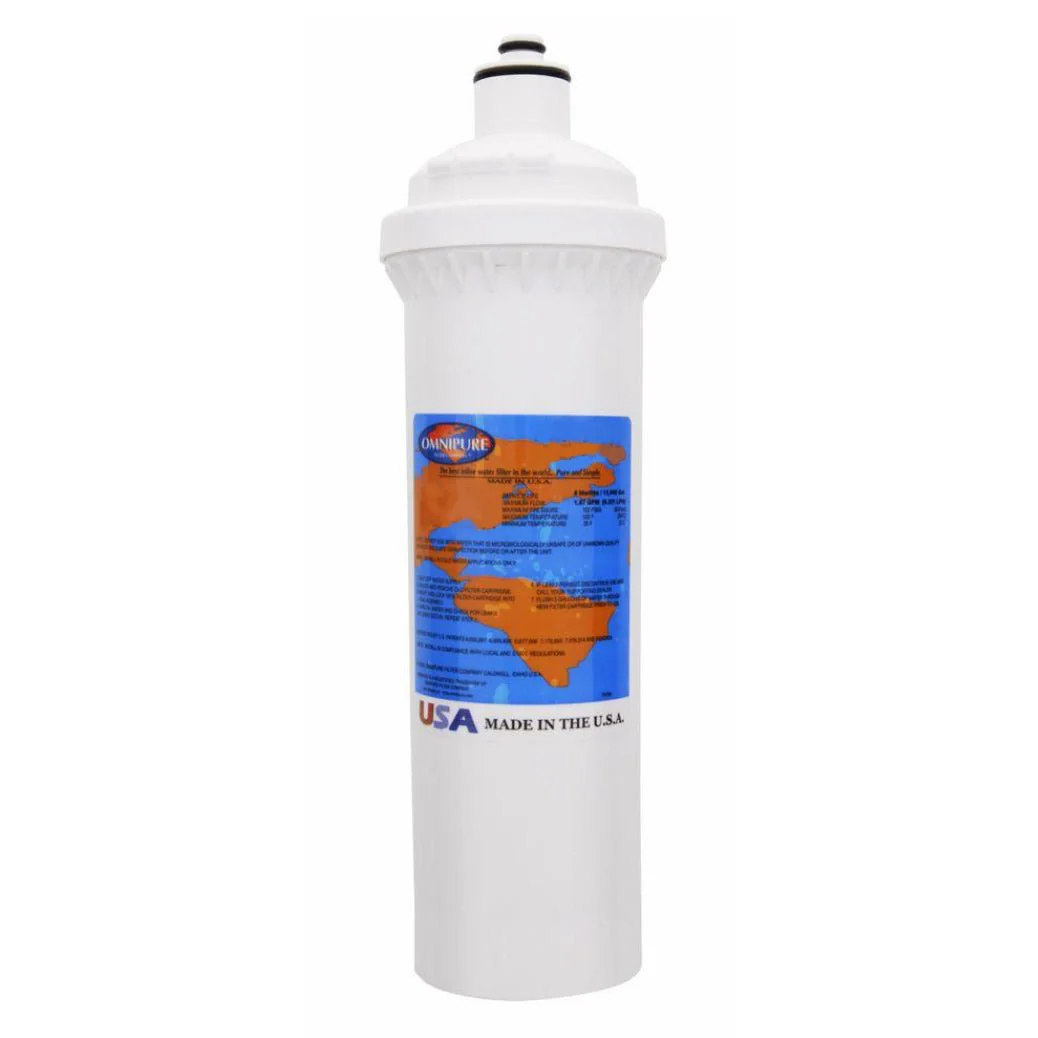

ELF-5MSED Extra-Large Format Sediment Filter
Commercial-grade 5 micron meltblown polypropylene filtration in a 12.5" x 4" bayonet-mount configuration for high-flow applications
Built for Commercial Volume
Two-Piece Design
Permanent head with bayonet-style replaceable body reduces long-term costs and simplifies maintenance in commercial installations
Meltblown Polypropylene
True depth filtration at 5 micron removes sand, silt, rust, and particulate without channeling or media migration
Extra-Large Format
12.5" length and 4" diameter provide high dirt-holding capacity for demanding food service and commercial applications
1.67 GPM Flow Rate
Handles commercial throughput at up to 125 PSI without pressure drop or performance degradation
Technical Details
| Model Number | ELF-5MSED |
| Dimensions | 12.5" L x 4" W |
| Micron Rating | 5 Micron |
| Flow Rate | 1.67 GPM |
| Max Pressure | 125 PSI |
| Max Temperature | 100°F |
| Media Type | Meltblown Polypropylene |
| Mount Style | Bayonet (replaceable body) |
System Requirements
The Omnipure ELF-5MSED requires an ELF-Series compatible housing with bayonet mount. This Extra-Large Format filter is designed for commercial RO systems, whole-house pretreatment, and food service applications. Not compatible with standard 10" or 20" housings. Verify your system uses Omnipure ELF proprietary mounting before ordering.
Replacement Schedule
Replace Filter Body
Service life depends on sediment load and flow volume. Replace when pressure drop increases or flow rate decreases noticeably
Inspect Permanent Head
Check O-rings and bayonet locking mechanism for wear or damage. Clean threads and sealing surfaces before installing new body
Commercial Grade
Engineered for food service and high-volume installations
Replaceable Body
Permanent head reduces waste and replacement costs
True 5 Micron
Consistent depth filtration without bypass or channeling
Bayonet Lock
Secure mounting without tools or threaded connections
