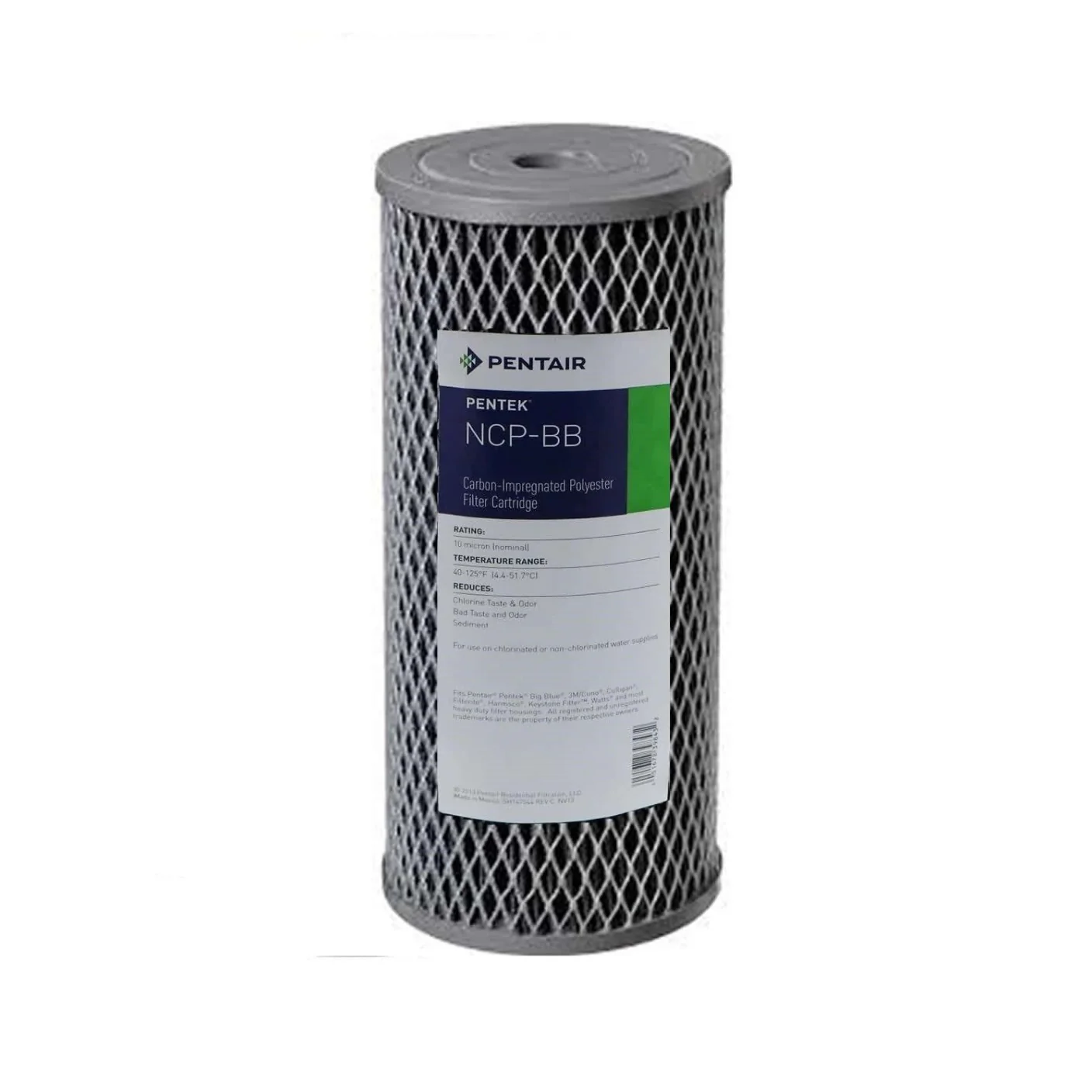

Pentek - NCP-BB - 10" x 4.5" Big Blue Pleated Carbon-Impregnated Polyproplyene Filter

Product image 1
1 / 3

Pentek - NCP-BB - 10" x 4.5" Big Blue Pleated Carbon-Impregnated Polyproplyene Filter

The Pentek NCP-BB combines sediment filtration with carbon adsorption in a single 10" x 4.5" pleated cartridge designed for Big Blue housings. This carbon-impregnated polyester filter handles chlorine taste and odor reduction while maintaining high dirt-loading capacity and low pressure drop across 500 gallons of service life.
SPECIFICATIONS

Pentek NCP-BB Technical Data

Dimensions 10" x 4.5" (9-3/4" x 4-5/8" actual)
Filter Media Carbon-impregnated pleated polyester
Housing Compatibility 10" Big Blue (4.5" diameter housings)
Flow Rate 8 GPM with 2 psi pressure drop
Filter Life 500 gallons (varies by water quality)
Temperature Rating 40°F to 125°F
End Caps Vinyl plastisol with polypropylene core
Applications Whole house, post-RO, well water, municipal
INSTALLATION & USE

Cartridge Replacement Procedure

  1. Shut off water supply and relieve pressure by opening a downstream faucet or using the housing pressure relief button if available
  2. Unscrew the Big Blue sump using a filter wrench, remove the old NCP-BB cartridge, and clean the housing interior and o-ring groove
  3. Inspect and lubricate the o-ring with food-grade silicone grease, insert the new Pentek NCP-BB cartridge, and hand-tighten the sump until snug
  4. Turn water supply back on slowly, check for leaks, and run water for 3-5 minutes to flush carbon fines and activate the filter media
COMPATIBILITY

Housing & Application Fit

The Pentek NCP-BB fits all standard 10-inch Big Blue filter housings with 4.5-inch inner diameter, including Pentek, Culligan, GE, and Omnifilter brands. The non-cellulose construction resists bacterial growth, making it suitable for both chlorinated municipal water and non-chlorinated well water systems. This cartridge excels as a whole-house polishing filter, post-reverse osmosis carbon stage, or standalone treatment for chlorine taste and odor in closed-loop applications where sediment and organics need simultaneous removal.

🔧 Pro Tip: Replace the housing o-ring every 2-3 cartridge changes to prevent leaks, and always flush the new NCP-BB for several minutes before use to clear loose carbon particles that can cause temporary water discoloration.
The Pentek NCP-BB combines sediment filtration with carbon adsorption in a single 10" x 4.5" pleated cartridge designed for Big Blue housings. This carbon-impregnated polyester filter handles chlorine taste and odor reduction while maintaining high dirt-loading capacity and low pressure drop across 500 gallons of service life.
SPECIFICATIONS

Pentek NCP-BB Technical Data

Dimensions 10" x 4.5" (9-3/4" x 4-5/8" actual)
Filter Media Carbon-impregnated pleated polyester
Housing Compatibility 10" Big Blue (4.5" diameter housings)
Flow Rate 8 GPM with 2 psi pressure drop
Filter Life 500 gallons (varies by water quality)
Temperature Rating 40°F to 125°F
End Caps Vinyl plastisol with polypropylene core
Applications Whole house, post-RO, well water, municipal
INSTALLATION & USE

Cartridge Replacement Procedure

  1. Shut off water supply and relieve pressure by opening a downstream faucet or using the housing pressure relief button if available
  2. Unscrew the Big Blue sump using a filter wrench, remove the old NCP-BB cartridge, and clean the housing interior and o-ring groove
  3. Inspect and lubricate the o-ring with food-grade silicone grease, insert the new Pentek NCP-BB cartridge, and hand-tighten the sump until snug
  4. Turn water supply back on slowly, check for leaks, and run water for 3-5 minutes to flush carbon fines and activate the filter media
COMPATIBILITY

Housing & Application Fit

The Pentek NCP-BB fits all standard 10-inch Big Blue filter housings with 4.5-inch inner diameter, including Pentek, Culligan, GE, and Omnifilter brands. The non-cellulose construction resists bacterial growth, making it suitable for both chlorinated municipal water and non-chlorinated well water systems. This cartridge excels as a whole-house polishing filter, post-reverse osmosis carbon stage, or standalone treatment for chlorine taste and odor in closed-loop applications where sediment and organics need simultaneous removal.

🔧 Pro Tip: Replace the housing o-ring every 2-3 cartridge changes to prevent leaks, and always flush the new NCP-BB for several minutes before use to clear loose carbon particles that can cause temporary water discoloration.
Select Choose
From $17.22

Original: $49.21

-65%
Pentek - NCP-BB - 10" x 4.5" Big Blue Pleated Carbon-Impregnated Polyproplyene Filter—

$49.21

$17.22

Description

The Pentek NCP-BB combines sediment filtration with carbon adsorption in a single 10" x 4.5" pleated cartridge designed for Big Blue housings. This carbon-impregnated polyester filter handles chlorine taste and odor reduction while maintaining high dirt-loading capacity and low pressure drop across 500 gallons of service life.
SPECIFICATIONS

Pentek NCP-BB Technical Data

Dimensions 10" x 4.5" (9-3/4" x 4-5/8" actual)
Filter Media Carbon-impregnated pleated polyester
Housing Compatibility 10" Big Blue (4.5" diameter housings)
Flow Rate 8 GPM with 2 psi pressure drop
Filter Life 500 gallons (varies by water quality)
Temperature Rating 40°F to 125°F
End Caps Vinyl plastisol with polypropylene core
Applications Whole house, post-RO, well water, municipal
INSTALLATION & USE

Cartridge Replacement Procedure

  1. Shut off water supply and relieve pressure by opening a downstream faucet or using the housing pressure relief button if available
  2. Unscrew the Big Blue sump using a filter wrench, remove the old NCP-BB cartridge, and clean the housing interior and o-ring groove
  3. Inspect and lubricate the o-ring with food-grade silicone grease, insert the new Pentek NCP-BB cartridge, and hand-tighten the sump until snug
  4. Turn water supply back on slowly, check for leaks, and run water for 3-5 minutes to flush carbon fines and activate the filter media
COMPATIBILITY

Housing & Application Fit

The Pentek NCP-BB fits all standard 10-inch Big Blue filter housings with 4.5-inch inner diameter, including Pentek, Culligan, GE, and Omnifilter brands. The non-cellulose construction resists bacterial growth, making it suitable for both chlorinated municipal water and non-chlorinated well water systems. This cartridge excels as a whole-house polishing filter, post-reverse osmosis carbon stage, or standalone treatment for chlorine taste and odor in closed-loop applications where sediment and organics need simultaneous removal.

🔧 Pro Tip: Replace the housing o-ring every 2-3 cartridge changes to prevent leaks, and always flush the new NCP-BB for several minutes before use to clear loose carbon particles that can cause temporary water discoloration.
