Pentek - R Series 10" x 4.5" Big Blue REUSABLE Pleated Polyester Sediment Filter

Product image 1
1 / 5

Pentek - R Series 10" x 4.5" Big Blue REUSABLE Pleated Polyester Sediment Filter

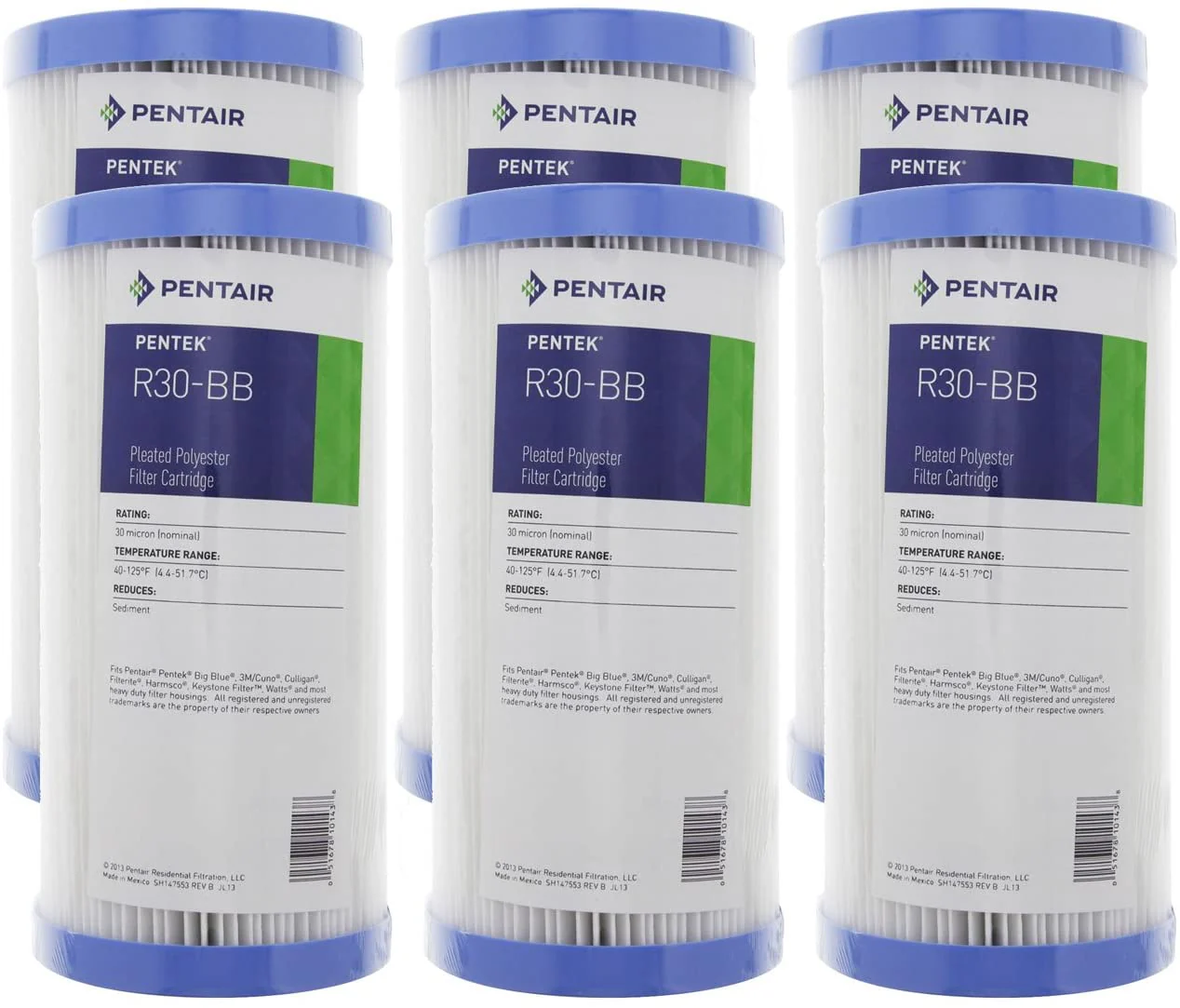

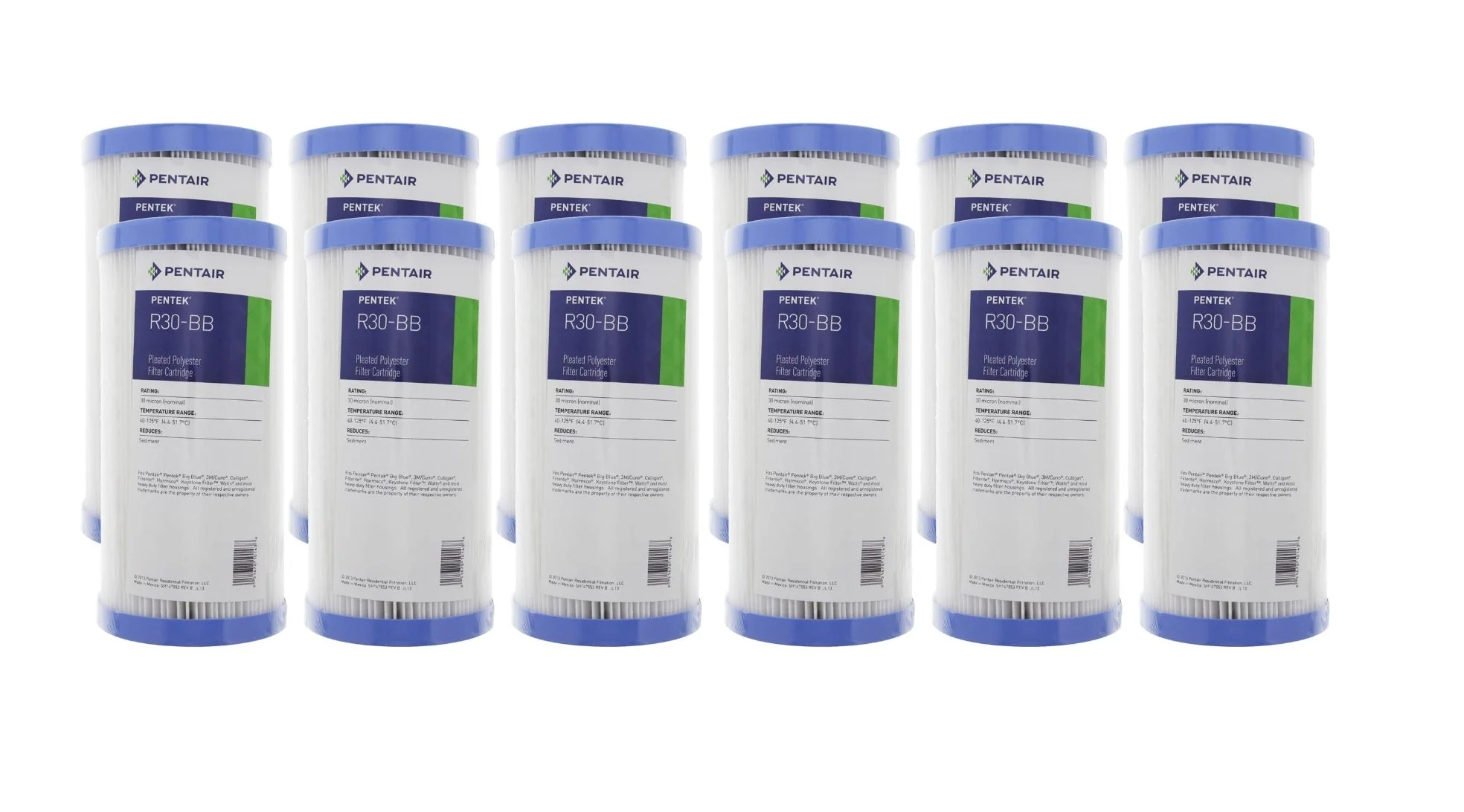

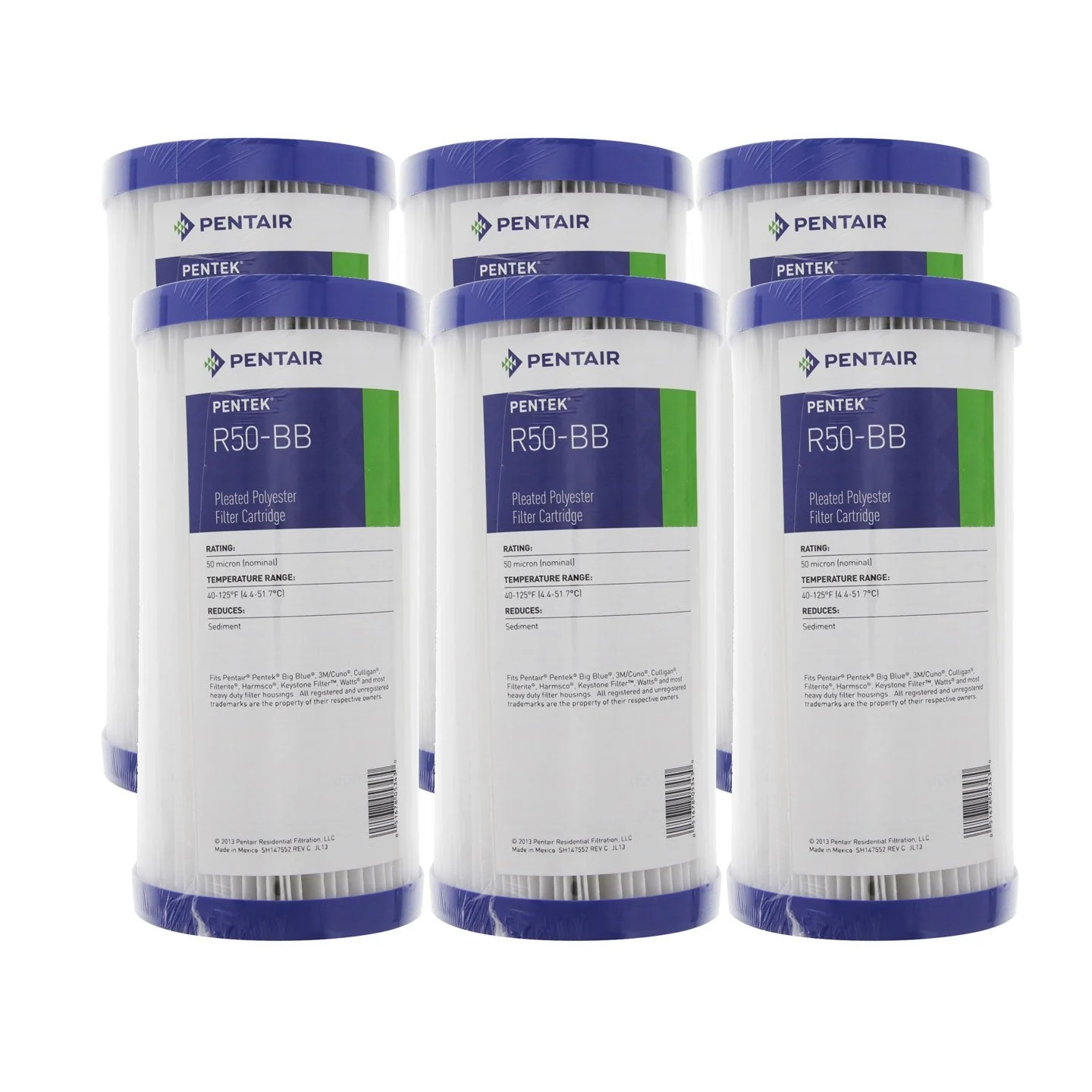

The Pentek R Series R30-BB and R50-BB deliver industrial-grade reusable sediment filtration with over 16 square feet of pleated polyester media in a 10" x 4.5" Big Blue format. Built for repeated cleaning cycles, these cartridges handle residential well water, whole-house, and commercial applications where washable filters reduce long-term operating costs.
SPECIFICATIONS

Pentek R Series Technical Details

Dimensions 10" x 4.5" (Big Blue)
Filtration Ratings 30 or 50 micron
Media Type Pleated non-woven polyester (reusable)
Surface Area 16+ square feet
Core Material Polypropylene with vinyl plastisol end caps
Temperature Range 40°F to 145°F
Pressure Drop 1 psi @ 10 GPM
Models R30-BB (30 micron), R50-BB (50 micron)
INSTALLATION & USE

Installing Your Pentek R Series Filter

  1. Shut off water supply and relieve system pressure before opening your 10" x 4.5" Big Blue housing
  2. Remove old cartridge and inspect housing sump for sediment buildup or damage to o-ring seal
  3. Insert Pentek R30-BB or R50-BB cartridge with open end facing up, ensuring proper seating against housing cap
  4. Hand-tighten housing sump, restore water pressure slowly, and check for leaks at all connection points
  5. When pressure drop increases or flow diminishes, remove cartridge and rinse with hose spray or backwash until media appears clean, then reinstall
COMPATIBILITY

Housing & Application Fit

The Pentek R Series fits all standard 10" x 4.5" Big Blue filter housings with 1" or 1.5" ports. Designed for whole-house sediment filtration, well water pretreatment, and commercial applications where washable filters reduce cartridge replacement frequency. The sonically welded seam and thermo-set vinyl plastisol end caps resist bacteria and chemical attack, making these cartridges suitable for chlorinated municipal supplies and agricultural water systems. Choose R30-BB for heavier sediment loads or R50-BB for lighter particulate capture with lower initial pressure drop.

🔧 Pro Tip: Mark your calendar to inspect reusable polyester cartridges every 30-60 days depending on sediment load. A quick rinse extends service life dramatically, but once the pleats no longer release debris easily or show visible wear, replace the cartridge rather than risk bypass flow through compromised media.
