Inline Granulated Activated Carbon Filter 10”

Product image 1

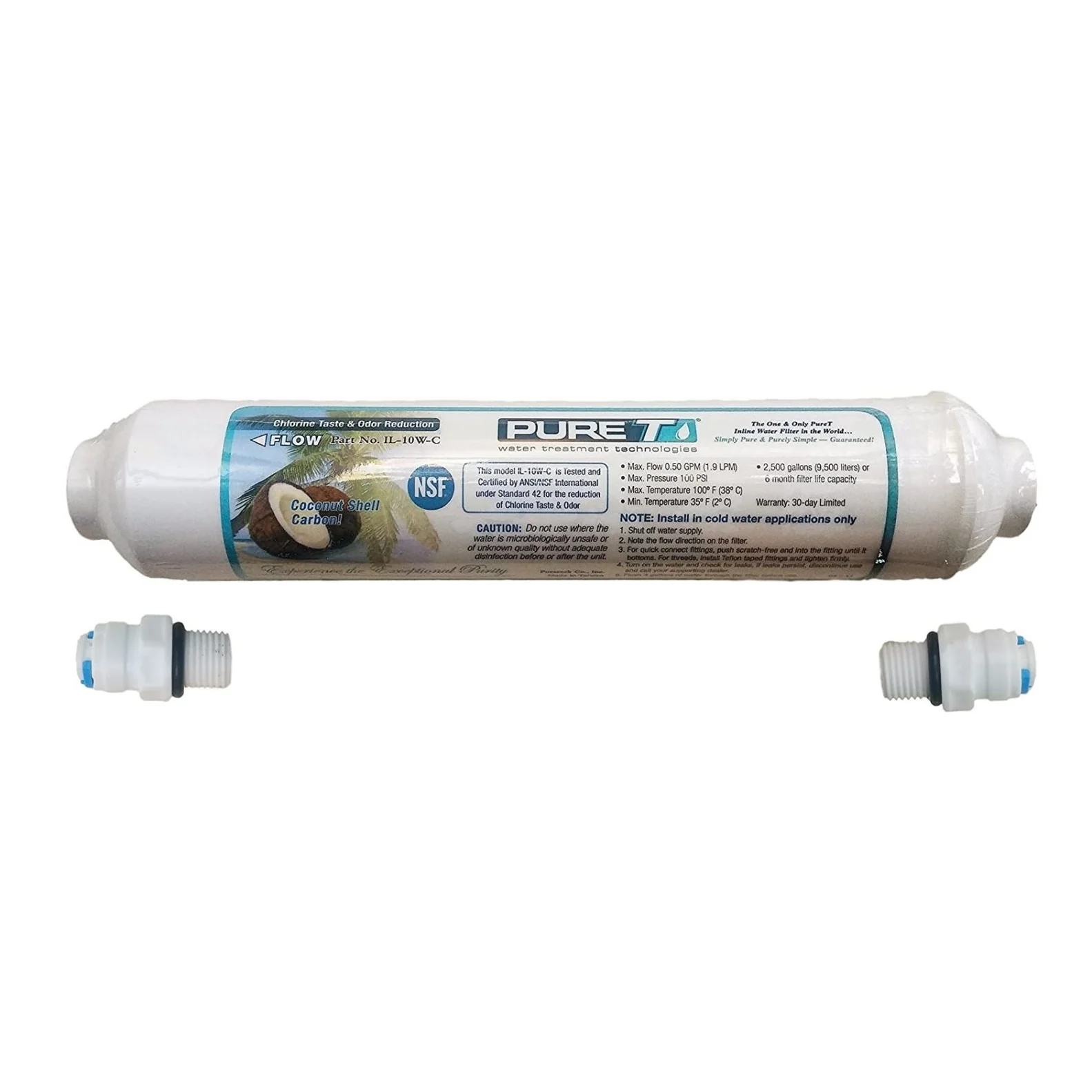

Inline Granulated Activated Carbon Filter 10”

This inline granulated activated carbon filter from Isopure Water delivers reliable taste and odor reduction using coconut shell carbon media with NSF 42 certification. Designed for reverse osmosis systems and other inline applications, it offers 2500 gallons of capacity in a compact 2" x 10" form factor.
SPECIFICATIONS

Technical Details

Dimensions 2" diameter x 10" length
Media Type Granulated Activated Carbon (GAC), coconut shell
Port Size 1/4" pipe thread (NPT)
Fittings Included 1/4" quick-connect tubing fittings (3/8" available upon request)
Capacity 2500 gallons nominal
Certification NSF 42 tested and certified
Brand IPW Industries
Application RO post-filter, inline polishing, taste and odor reduction
INSTALLATION & USE

Setup Instructions

  1. Shut off water supply and relieve system pressure before installation
  2. Thread 1/4" quick-connect fittings into both ports and hand-tighten securely
  3. Connect tubing to inlet and outlet ports, observing flow direction if marked on filter body
  4. Flush filter for 5 minutes before connecting to system or faucet to remove carbon fines
  5. Replace filter every 2500 gallons or when taste and odor reduction diminishes
COMPATIBILITY

System Integration

This inline GAC filter works with any reverse osmosis system, countertop filter, or point-of-use application using 1/4" tubing connections. Commonly installed as a post-filter stage after RO membranes to polish water and eliminate residual taste. Compatible with standard 1/4" John Guest style push-fit connectors. If your system requires 3/8" tubing, contact Isopure Water before ordering to receive the correct size fittings.

🔧 Pro tip: Install this filter vertically with the outlet port facing up to prevent air pockets and ensure consistent carbon contact. Always flush thoroughly after installation to clear loose carbon granules that can cause temporary cloudiness.
This inline granulated activated carbon filter from Isopure Water delivers reliable taste and odor reduction using coconut shell carbon media with NSF 42 certification. Designed for reverse osmosis systems and other inline applications, it offers 2500 gallons of capacity in a compact 2" x 10" form factor.
SPECIFICATIONS

Technical Details

Dimensions 2" diameter x 10" length
Media Type Granulated Activated Carbon (GAC), coconut shell
Port Size 1/4" pipe thread (NPT)
Fittings Included 1/4" quick-connect tubing fittings (3/8" available upon request)
Capacity 2500 gallons nominal
Certification NSF 42 tested and certified
Brand IPW Industries
Application RO post-filter, inline polishing, taste and odor reduction
INSTALLATION & USE

Setup Instructions

  1. Shut off water supply and relieve system pressure before installation
  2. Thread 1/4" quick-connect fittings into both ports and hand-tighten securely
  3. Connect tubing to inlet and outlet ports, observing flow direction if marked on filter body
  4. Flush filter for 5 minutes before connecting to system or faucet to remove carbon fines
  5. Replace filter every 2500 gallons or when taste and odor reduction diminishes
COMPATIBILITY

System Integration

This inline GAC filter works with any reverse osmosis system, countertop filter, or point-of-use application using 1/4" tubing connections. Commonly installed as a post-filter stage after RO membranes to polish water and eliminate residual taste. Compatible with standard 1/4" John Guest style push-fit connectors. If your system requires 3/8" tubing, contact Isopure Water before ordering to receive the correct size fittings.

🔧 Pro tip: Install this filter vertically with the outlet port facing up to prevent air pockets and ensure consistent carbon contact. Always flush thoroughly after installation to clear loose carbon granules that can cause temporary cloudiness.
Select Fitting Size
From $12.00
Inline Granulated Activated Carbon Filter 10”—
$12.00

Description

This inline granulated activated carbon filter from Isopure Water delivers reliable taste and odor reduction using coconut shell carbon media with NSF 42 certification. Designed for reverse osmosis systems and other inline applications, it offers 2500 gallons of capacity in a compact 2" x 10" form factor.
SPECIFICATIONS

Technical Details

Dimensions 2" diameter x 10" length
Media Type Granulated Activated Carbon (GAC), coconut shell
Port Size 1/4" pipe thread (NPT)
Fittings Included 1/4" quick-connect tubing fittings (3/8" available upon request)
Capacity 2500 gallons nominal
Certification NSF 42 tested and certified
Brand IPW Industries
Application RO post-filter, inline polishing, taste and odor reduction
INSTALLATION & USE

Setup Instructions

  1. Shut off water supply and relieve system pressure before installation
  2. Thread 1/4" quick-connect fittings into both ports and hand-tighten securely
  3. Connect tubing to inlet and outlet ports, observing flow direction if marked on filter body
  4. Flush filter for 5 minutes before connecting to system or faucet to remove carbon fines
  5. Replace filter every 2500 gallons or when taste and odor reduction diminishes
COMPATIBILITY

System Integration

This inline GAC filter works with any reverse osmosis system, countertop filter, or point-of-use application using 1/4" tubing connections. Commonly installed as a post-filter stage after RO membranes to polish water and eliminate residual taste. Compatible with standard 1/4" John Guest style push-fit connectors. If your system requires 3/8" tubing, contact Isopure Water before ordering to receive the correct size fittings.

🔧 Pro tip: Install this filter vertically with the outlet port facing up to prevent air pockets and ensure consistent carbon contact. Always flush thoroughly after installation to clear loose carbon granules that can cause temporary cloudiness.
