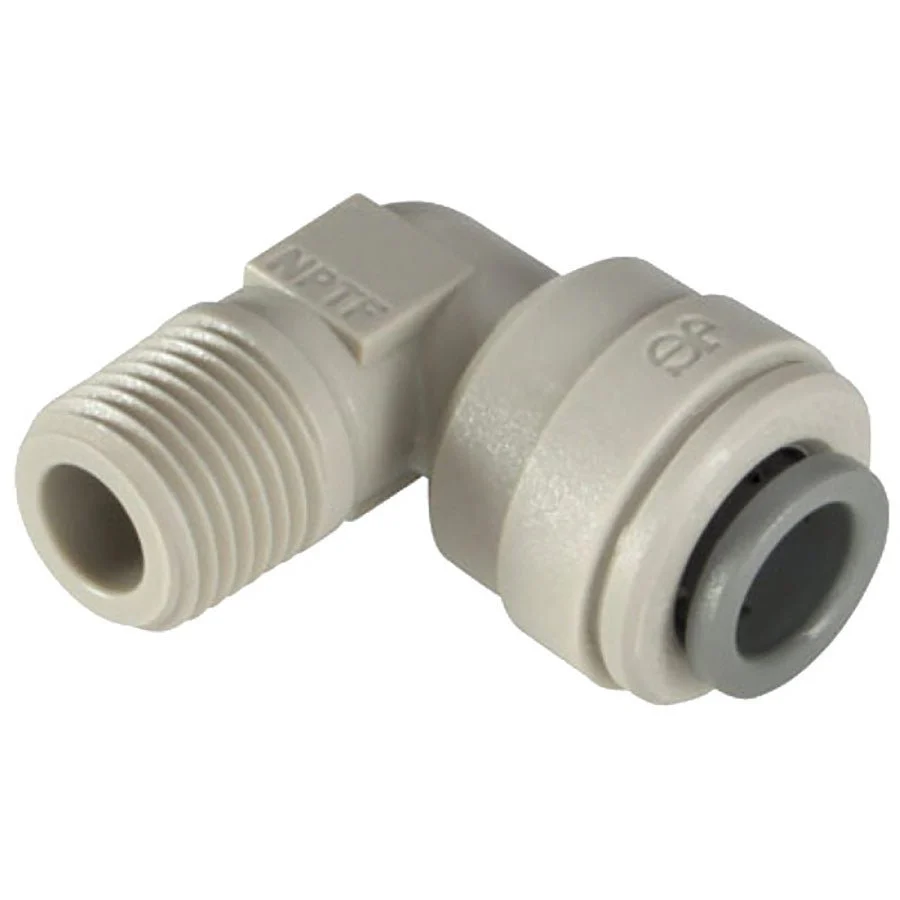

The John Guest Acetal Fixed Elbow Quick Connect Fitting delivers a reliable 90-degree pipe connection using push-fit technology that requires no tools or special training. Manufactured in the UK from food-grade acetal copolymer with nitrile O-ring seals, this fitting offers superior strength and heat resistance for potable water, air, CO2, and pneumatic applications.
SPECIFICATIONS
John Guest Acetal Fixed Elbow
Manufacturer
John Guest Speedfit
Material
Acetal Copolymer with Food-Grade Nitrile O-Ring
Connection Type
National Pipe Thread (NPT)
Installation Method
Push-Fit Quick Connect with Grip & Seal Collet
Configuration
90-Degree Fixed Elbow
Tube Compatibility
PEX, Copper, CPVC, and Plastic Pipe
Country of Origin
United Kingdom
NPT SIZING REFERENCE
Understanding National Pipe Thread Measurements
NPT Size (Fractional)
Actual Outer Diameter
1/8" NPT
0.405 inches
1/4" NPT
0.540 inches
3/8" NPT
0.675 inches
1/2" NPT
0.840 inches
COMPATIBILITY & APPLICATIONS
Approved Uses
This John Guest fixed elbow fitting is certified for potable water systems, including under-sink filtration, RO systems, refrigerator connections, and tap installations. The acetal construction provides excellent chemical resistance for food and beverage applications, CO2 beverage lines, compressed air systems, and pneumatic controls. The female NPT thread connects directly to faucets, valves, toilet fill lines, and appliances. To disconnect, simply unlock the nut, push the collet toward the body, and pull the pipe free.
💧 NPT fittings measure larger than their nominal size when measured with a ruler. A 1/4" NPT thread will actually measure approximately 0.540 inches in diameter. Always verify thread size before ordering to ensure proper fit.
