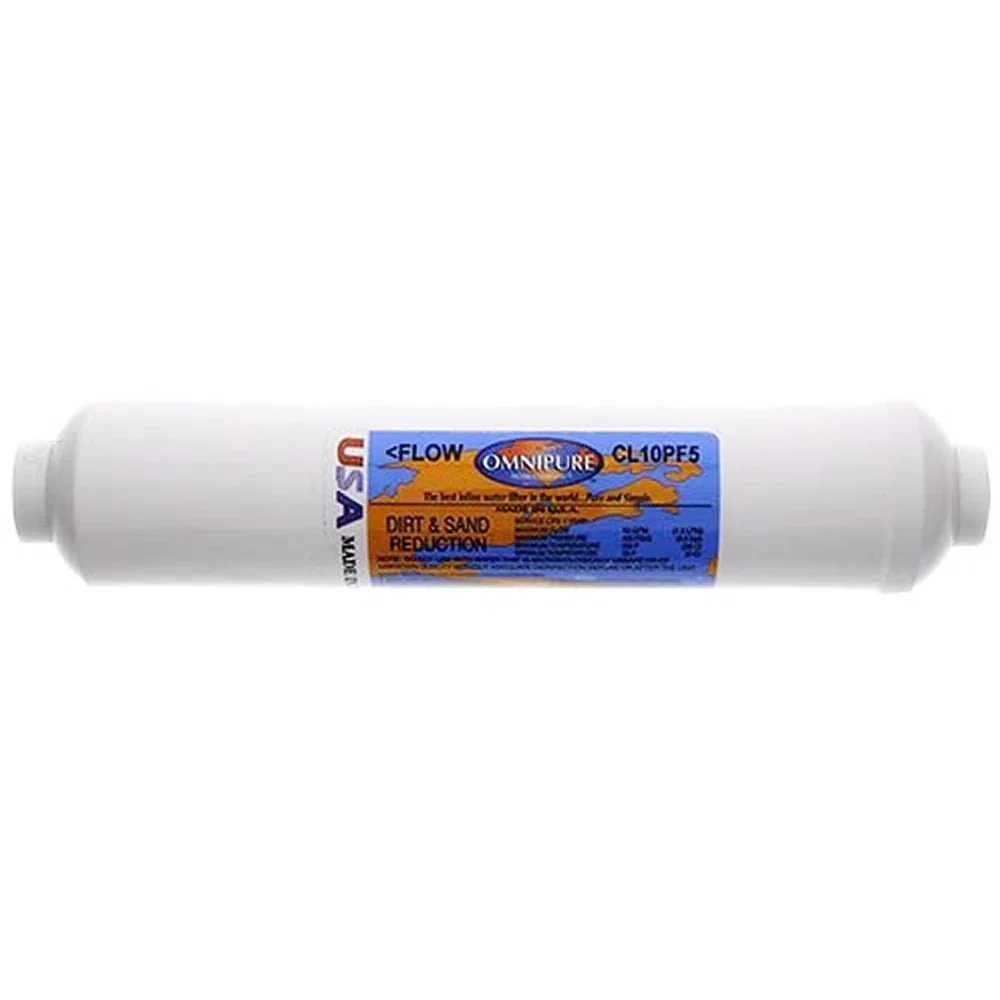

Omnipure - CL10PF5 - 10" x 2" Sediment Inline Filter - 5 Micron
CL10PF5 10" x 2" Sediment Inline Filter - 5 Micron
Meltblown polypropylene inline filter for reliable sediment removal in point-of-use and whole-house applications
Meltblown filtration for clean, sediment-free water
Meltblown Polypropylene
Thermally bonded filtration media captures dirt, sand, silt, and rust down to 5 microns without media migration
Inline Design
Compact 10" x 2" form factor installs directly in your water line with 1/8" NPT female threads on both ends
Point-of-Use Protection
0.5 GPM flow rate ideal for RO systems, ice makers, refrigerators, and targeted appliance protection
Proven Performance
Rated for 125 PSI and temperatures up to 100°F, backed by Omnipure's reputation for reliable filtration
Technical Details
| Model Number | CL10PF5 (CL10PF5-A) |
| Dimensions | 10" L x 2" W |
| Filtration Rating | 5 Micron |
| Media Type | Meltblown Polypropylene |
| Flow Rate | 0.5 GPM |
| Connection Size | 1/8" Female NPT |
| Max Pressure | 125 PSI |
| Max Temperature | 100°F |
Applications and Variants
The CL10PF5 is available in multiple thread sizes to match your plumbing configuration. The CL10PF5-A features 1/8" NPT (0.405" actual diameter), CL10PF5-B uses 1/4" NPT (0.540" actual diameter), and CL10PF5-C offers 3/8" NPT (0.675" actual diameter). Note that NPT thread sizes measure larger than their nominal designation when measured with a ruler. This filter works in RO systems, whole-house pre-filtration, ice makers, refrigerators, and any application requiring sediment reduction at the point of use.
Replacement Schedule
Standard Replacement
Replace the CL10PF5 inline filter every 6 to 12 months depending on sediment load and water quality
Pressure Drop Indicator
Replace sooner if you notice reduced flow rate or pressure drop across the filter indicating saturation
Simple Installation
Female NPT threads on both ends allow direct inline connection without housings or clips
Multi-Application
Works in RO, whole-house, and point-of-use configurations for versatile sediment control
Omnipure Quality
Manufactured by a trusted name in water filtration with consistent quality and performance
