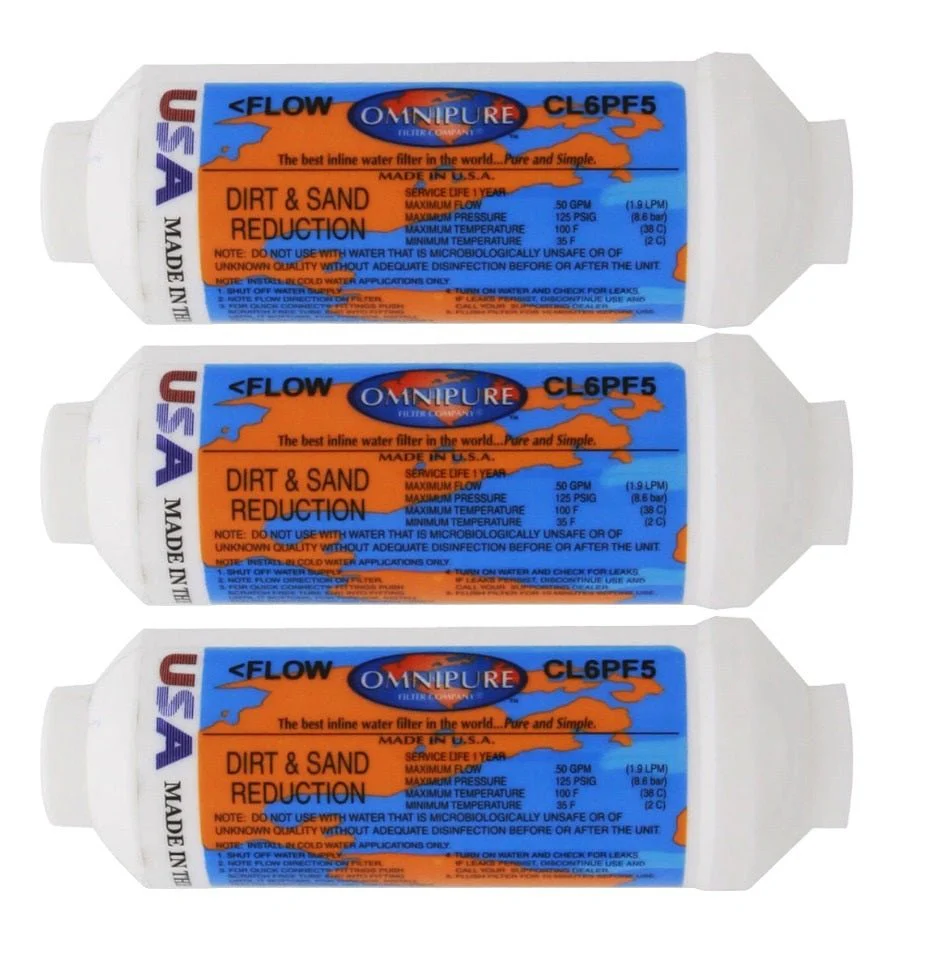

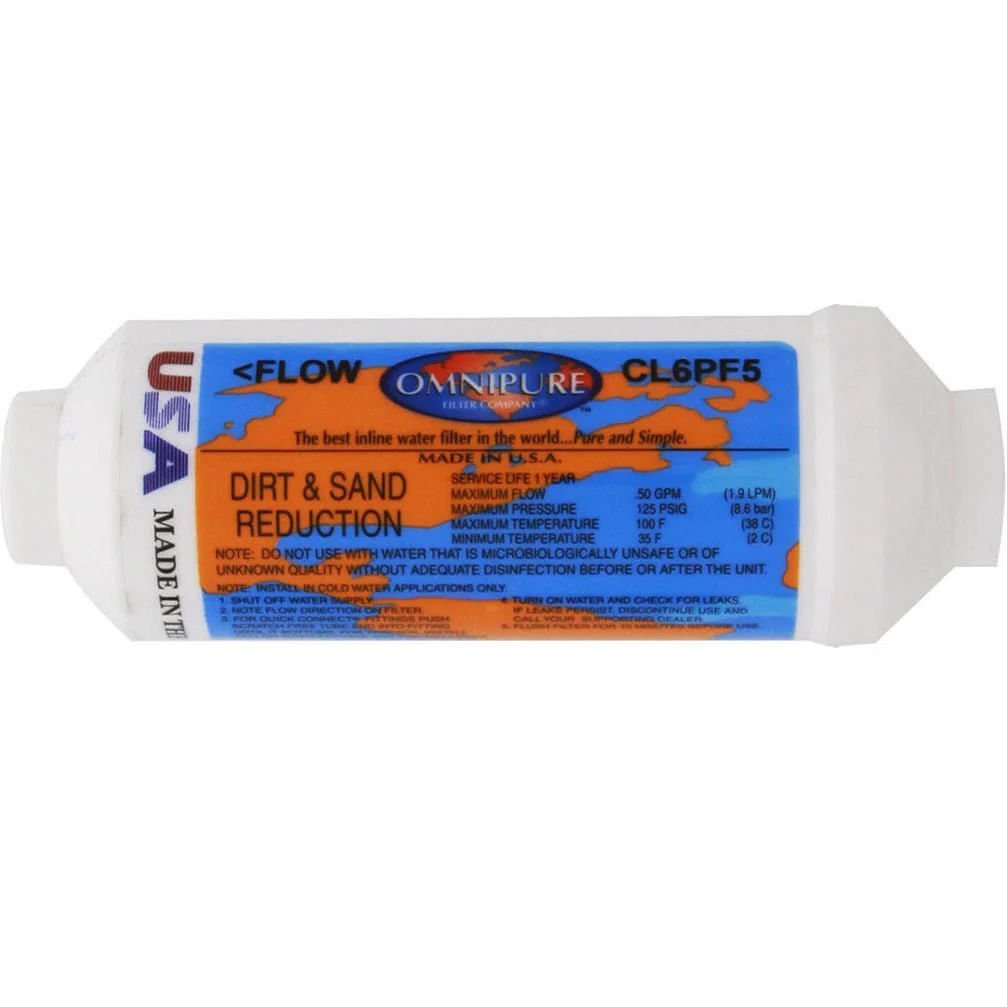

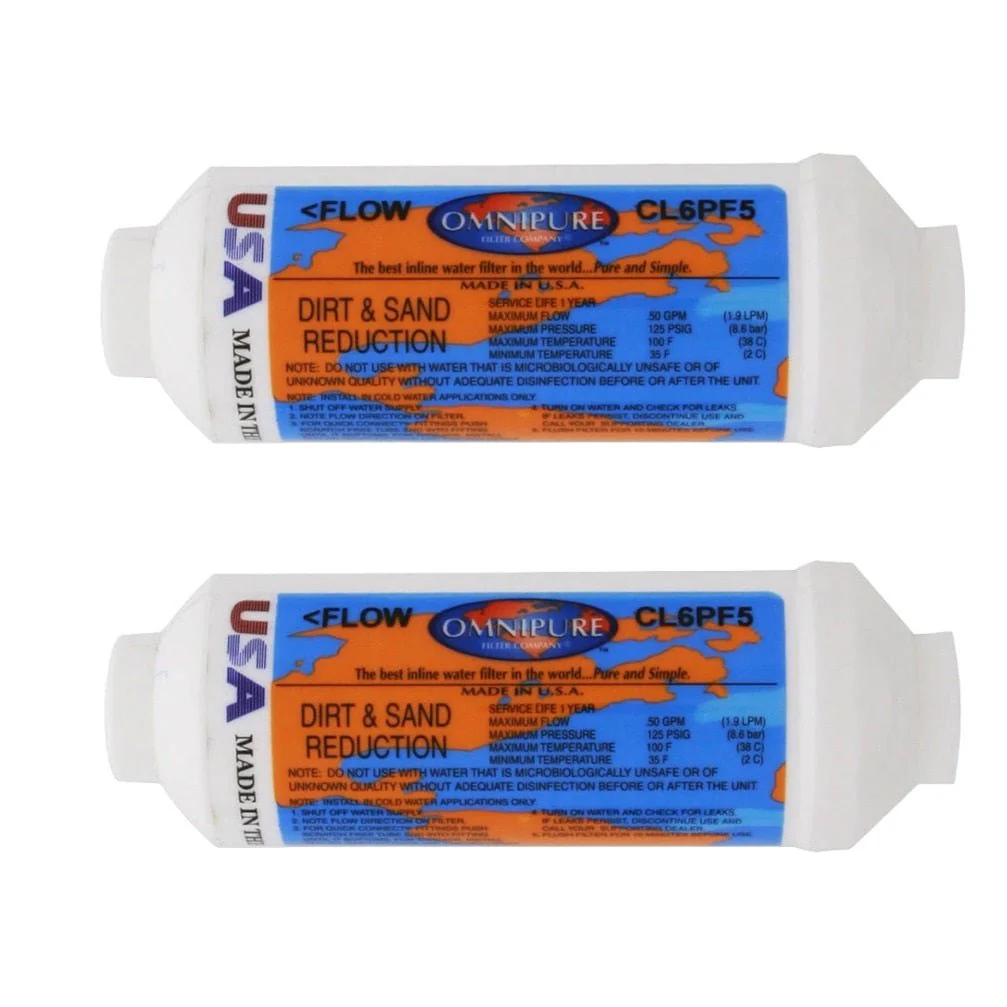

Omnipure - CL6PF5 - 6" x 2" Sediment Inline Filter - 5 Micron
CL6PF5 6" × 2" Inline Sediment Filter
Compact polypropylene depth filter for dirt, sand, and sediment removal in residential and light commercial applications
The Omnipure CL6PF5 is a workhorse inline sediment filter built for reliable pre-filtration in RO systems, under-sink installations, and whole-house applications. Its 5 micron meltblown polypropylene media provides true depth filtration, while the friction-welded body ensures a no-leak seal at pressures up to 125 PSI. Specially molded to eliminate channeling and maintain uniform flow at 0.5 GPM.
Engineered for Consistent Sediment Removal
Meltblown Polypropylene
5 micron depth filtration captures dirt, sand, silt, and sediment throughout the entire filter body, not just the surface
Friction-Welded Seal
Ultrasonically welded construction eliminates bypass and ensures a reliable, leak-free connection under pressure
Anti-Channeling Design
Specially molded to prevent water from bypassing the filter media, ensuring uniform flow and maximum contact time
Compact 6" × 2" Form
Space-saving inline design fits tight installations while still delivering robust sediment protection
125 PSI Rated
Handles municipal and well water pressures with a maximum operating pressure of 125 PSI at 100°F
Versatile Applications
Works as RO pre-filter, whole-house sediment stage, or inline protection for appliances and fixtures
Technical Details
| Model | CL6PF5 (also CL6PF5-A, CL6PF5-B, CL6PF5-C) |
| Dimensions | 6" L × 2" W |
| Micron Rating | 5 micron |
| Flow Rate | 0.5 GPM |
| Max Pressure | 125 PSI |
| Max Temperature | 100°F |
| Media Type | Meltblown polypropylene (depth filtration) |
| Connection Type | 1/4" NPT (measures 0.540" OD) |
Where the CL6PF5 Fits
The Omnipure CL6PF5 is designed for reverse osmosis pre-filtration, whole-house sediment stages, inline appliance protection, and point-of-use applications. Compatible with any system using 1/4" NPT threaded fittings. Common replacement for CL6PF5-A, CL6PF5-B, and CL6PF5-C models across residential and light commercial installations. Note: NPT threads measure larger than their nominal size—1/4" NPT measures approximately 0.540" in diameter when measured with a ruler or caliper.
Omnipure has been manufacturing reliable inline filters for decades, and the CL6PF5 continues that tradition with proven meltblown technology and solid construction.
CL6PF5 6" × 2" Inline Sediment Filter
Compact polypropylene depth filter for dirt, sand, and sediment removal in residential and light commercial applications
The Omnipure CL6PF5 is a workhorse inline sediment filter built for reliable pre-filtration in RO systems, under-sink installations, and whole-house applications. Its 5 micron meltblown polypropylene media provides true depth filtration, while the friction-welded body ensures a no-leak seal at pressures up to 125 PSI. Specially molded to eliminate channeling and maintain uniform flow at 0.5 GPM.
Engineered for Consistent Sediment Removal
Meltblown Polypropylene
5 micron depth filtration captures dirt, sand, silt, and sediment throughout the entire filter body, not just the surface
Friction-Welded Seal
Ultrasonically welded construction eliminates bypass and ensures a reliable, leak-free connection under pressure
Anti-Channeling Design
Specially molded to prevent water from bypassing the filter media, ensuring uniform flow and maximum contact time
Compact 6" × 2" Form
Space-saving inline design fits tight installations while still delivering robust sediment protection
125 PSI Rated
Handles municipal and well water pressures with a maximum operating pressure of 125 PSI at 100°F
Versatile Applications
Works as RO pre-filter, whole-house sediment stage, or inline protection for appliances and fixtures
Technical Details
| Model | CL6PF5 (also CL6PF5-A, CL6PF5-B, CL6PF5-C) |
| Dimensions | 6" L × 2" W |
| Micron Rating | 5 micron |
| Flow Rate | 0.5 GPM |
| Max Pressure | 125 PSI |
| Max Temperature | 100°F |
| Media Type | Meltblown polypropylene (depth filtration) |
| Connection Type | 1/4" NPT (measures 0.540" OD) |
Where the CL6PF5 Fits
The Omnipure CL6PF5 is designed for reverse osmosis pre-filtration, whole-house sediment stages, inline appliance protection, and point-of-use applications. Compatible with any system using 1/4" NPT threaded fittings. Common replacement for CL6PF5-A, CL6PF5-B, and CL6PF5-C models across residential and light commercial installations. Note: NPT threads measure larger than their nominal size—1/4" NPT measures approximately 0.540" in diameter when measured with a ruler or caliper.
Omnipure has been manufacturing reliable inline filters for decades, and the CL6PF5 continues that tradition with proven meltblown technology and solid construction.
Original: $11.35
-65%$11.35
$3.97Description
CL6PF5 6" × 2" Inline Sediment Filter
Compact polypropylene depth filter for dirt, sand, and sediment removal in residential and light commercial applications
The Omnipure CL6PF5 is a workhorse inline sediment filter built for reliable pre-filtration in RO systems, under-sink installations, and whole-house applications. Its 5 micron meltblown polypropylene media provides true depth filtration, while the friction-welded body ensures a no-leak seal at pressures up to 125 PSI. Specially molded to eliminate channeling and maintain uniform flow at 0.5 GPM.
Engineered for Consistent Sediment Removal
Meltblown Polypropylene
5 micron depth filtration captures dirt, sand, silt, and sediment throughout the entire filter body, not just the surface
Friction-Welded Seal
Ultrasonically welded construction eliminates bypass and ensures a reliable, leak-free connection under pressure
Anti-Channeling Design
Specially molded to prevent water from bypassing the filter media, ensuring uniform flow and maximum contact time
Compact 6" × 2" Form
Space-saving inline design fits tight installations while still delivering robust sediment protection
125 PSI Rated
Handles municipal and well water pressures with a maximum operating pressure of 125 PSI at 100°F
Versatile Applications
Works as RO pre-filter, whole-house sediment stage, or inline protection for appliances and fixtures
Technical Details
| Model | CL6PF5 (also CL6PF5-A, CL6PF5-B, CL6PF5-C) |
| Dimensions | 6" L × 2" W |
| Micron Rating | 5 micron |
| Flow Rate | 0.5 GPM |
| Max Pressure | 125 PSI |
| Max Temperature | 100°F |
| Media Type | Meltblown polypropylene (depth filtration) |
| Connection Type | 1/4" NPT (measures 0.540" OD) |
Where the CL6PF5 Fits
The Omnipure CL6PF5 is designed for reverse osmosis pre-filtration, whole-house sediment stages, inline appliance protection, and point-of-use applications. Compatible with any system using 1/4" NPT threaded fittings. Common replacement for CL6PF5-A, CL6PF5-B, and CL6PF5-C models across residential and light commercial installations. Note: NPT threads measure larger than their nominal size—1/4" NPT measures approximately 0.540" in diameter when measured with a ruler or caliper.
Omnipure has been manufacturing reliable inline filters for decades, and the CL6PF5 continues that tradition with proven meltblown technology and solid construction.
