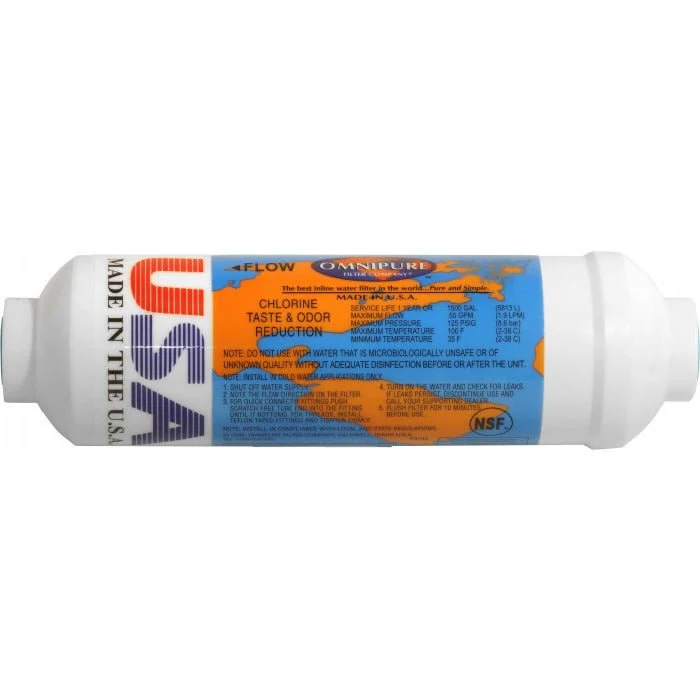

Omnipure - CL6ROT28 - 6" x 2" T40 GAC Acid Washed Coconut Inline Filter

The Omnipure CL6ROT28 inline filter uses acid-washed coconut shell granular activated carbon to reduce chlorine taste and odor in drinking water, ice machines, and reverse osmosis systems. Its friction-welded construction ensures a reliable, leak-free seal with T40 NPT threading for quick integration into existing water lines.
SPECIFICATIONS

CL6ROT28 Technical Details

Dimensions 6" L × 2" W
Media Type Acid-Washed Coconut GAC
Filtration Rating 5 Micron Nominal
Flow Rate 0.5 GPM
Service Life 1000 Gallons or 1 Year
Max Pressure 125 PSIG
Max Temperature 100°F
Connection Type 3/8" Female NPT (T40)
INSTALLATION & USE

Installation Steps

  1. Shut off water supply and relieve line pressure before installation
  2. Thread the CL6ROT28 inline onto 3/8" NPT male fittings, ensuring flow direction matches any arrow markings on the housing
  3. Hand-tighten connections, then use a wrench to snug an additional quarter turn without over-tightening
  4. Flush filter for 3-5 minutes to remove carbon fines before normal use
  5. Replace cartridge after 1000 gallons or 12 months, whichever comes first
COMPATIBILITY

Applications & Cross-Reference

The CL6ROT28 is interchangeable with T28 and T33 threaded Omnipure inline filters and fits standard 3/8" NPT plumbing connections. Commonly used in under-sink reverse osmosis systems, ice makers, water coolers, drinking fountains, and point-of-use filtration. Note that NPT sizing does not correspond to ruler measurements: a 3/8" NPT fitting measures approximately 0.675" outer diameter when measured with calipers.

🔧 Pro Tip: Granular activated carbon can settle during shipping. Tap the housing gently before installation to redistribute the media and prevent channeling, which extends filter life and maintains consistent chlorine reduction.
The Omnipure CL6ROT28 inline filter uses acid-washed coconut shell granular activated carbon to reduce chlorine taste and odor in drinking water, ice machines, and reverse osmosis systems. Its friction-welded construction ensures a reliable, leak-free seal with T40 NPT threading for quick integration into existing water lines.
SPECIFICATIONS

CL6ROT28 Technical Details

Dimensions 6" L × 2" W
Media Type Acid-Washed Coconut GAC
Filtration Rating 5 Micron Nominal
Flow Rate 0.5 GPM
Service Life 1000 Gallons or 1 Year
Max Pressure 125 PSIG
Max Temperature 100°F
Connection Type 3/8" Female NPT (T40)
INSTALLATION & USE

Installation Steps

  1. Shut off water supply and relieve line pressure before installation
  2. Thread the CL6ROT28 inline onto 3/8" NPT male fittings, ensuring flow direction matches any arrow markings on the housing
  3. Hand-tighten connections, then use a wrench to snug an additional quarter turn without over-tightening
  4. Flush filter for 3-5 minutes to remove carbon fines before normal use
  5. Replace cartridge after 1000 gallons or 12 months, whichever comes first
COMPATIBILITY

Applications & Cross-Reference

The CL6ROT28 is interchangeable with T28 and T33 threaded Omnipure inline filters and fits standard 3/8" NPT plumbing connections. Commonly used in under-sink reverse osmosis systems, ice makers, water coolers, drinking fountains, and point-of-use filtration. Note that NPT sizing does not correspond to ruler measurements: a 3/8" NPT fitting measures approximately 0.675" outer diameter when measured with calipers.

🔧 Pro Tip: Granular activated carbon can settle during shipping. Tap the housing gently before installation to redistribute the media and prevent channeling, which extends filter life and maintains consistent chlorine reduction.
