Omnipure - K5505 - 10" x 2.5" Sediment Inline Filter - 5 Micron
K5505 10" × 2.5" Sediment Inline Filter
5 micron polypropylene depth filtration for RO systems, whole-house, and point-of-use applications

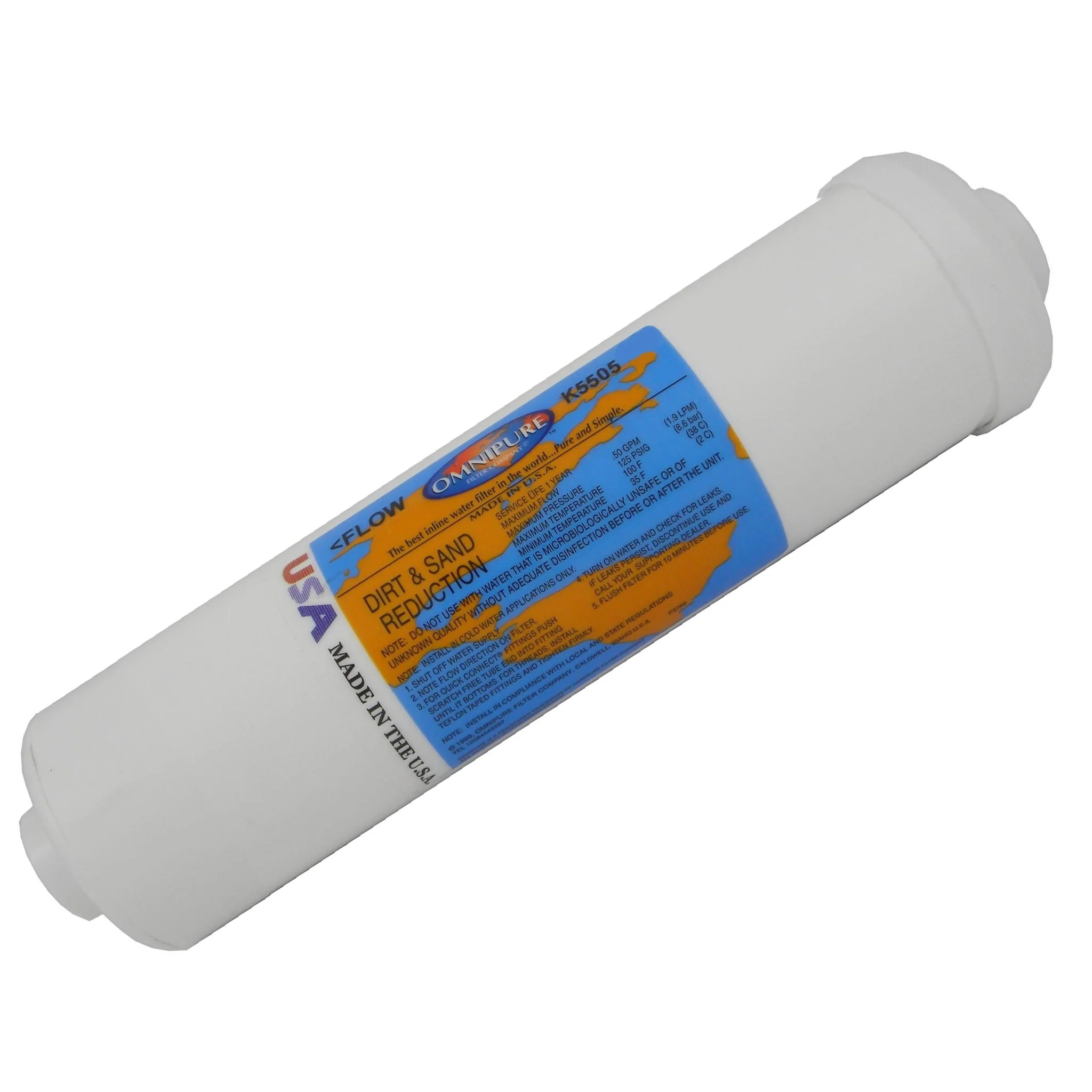

The Omnipure K5505 is a versatile sediment pre-filter designed for 5 micron removal of dirt, sand, rust, and particulate. Built with polypropylene depth filtration and available with 1/4" FPT, 1/4" QC, and 3/8" QC fittings, this inline filter integrates cleanly into reverse osmosis systems, ice makers, refrigerators, beverage equipment, and whole-house applications where sediment control is needed before finer filtration stages.
Technical Details
| Micron Rating | 5 micron |
| Dimensions | 10" L × 2.5" W |
| Flow Rate | 0.5 GPM |
| Max Pressure | 125 PSI |
| Max Temperature | 100°F |
| Fitting Options | 1/4" Quick Connect, 3/8" Quick Connect, 1/4" FPT (NPT) |
| Media Type | Meltblown polypropylene depth filter |
| Housing Type | Inline sealed cartridge |
Understanding NPT Sizing
A common point of confusion: National Pipe Thread (NPT) does not measure the same as fractional inches on a ruler. A 1/4" NPT fitting measures approximately 0.540" in actual outer diameter, not 0.25". The K5505 includes 1/4" NPT female threads, which correspond to this 0.540" standard, along with 1/4" and 3/8" quick-connect options for tool-free installation.
Where the K5505 Fits
This filter works in reverse osmosis systems, whole-house sediment filtration, ice makers, refrigerators, beverage dispensers, drinking fountains, and under-sink point-of-use systems. Compatible replacement for K5505-BB, K5505-JJ, and K5505-KK configurations. Omnipure K-Series inline filters are designed to integrate with standard 1/4" and 3/8" water line connections common in residential and light commercial installations.
Omnipure has been manufacturing inline water filters in the USA for over three decades. The K5505 is a proven sediment pre-filter used across thousands of filtration systems.
