Omnipure - K5520 - 10" x 2.5" 1 Micron Carbon Block Inline Filter

Product image 1
1 / 3

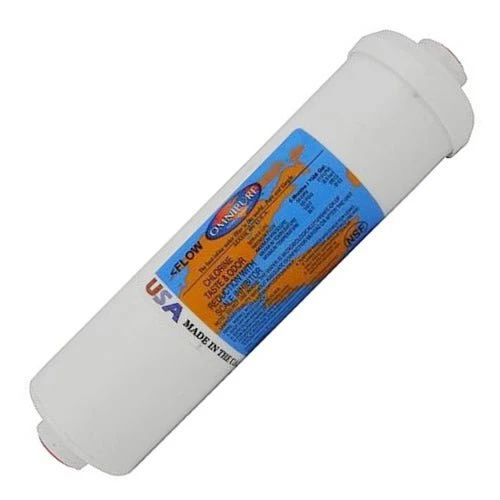

Omnipure - K5520 - 10" x 2.5" 1 Micron Carbon Block Inline Filter

The Omnipure K5520 is a 10" x 2.5" inline carbon block filter with 1 micron filtration, designed for post-RO polishing, ice makers, beverage equipment, and under-counter systems. With 1/4" FPT and 1/4" QC fittings, it removes chlorine, sediment, taste, and odor at up to 0.5 GPM.
SPECIFICATIONS

Omnipure K5520 Technical Details

Dimensions 10" L x 2.5" W
Micron Rating 1 Micron
Filtration Media Carbon Block
Flow Rate 0.5 GPM
Service Life 1 Year or 2500 Gallons
Fitting Size 1/4" FPT and 1/4" QC
Max Pressure 125 PSI
Max Temperature 100°F
INSTALLATION & USE

Installing Your K5520 Inline Filter

  1. Shut off water supply and relieve pressure from the system before installation.
  2. Connect inlet and outlet using 1/4" FPT threaded connections or 1/4" quick-connect fittings, ensuring flow direction matches any arrows on the filter housing.
  3. Turn on water supply slowly and check all connections for leaks, then flush filter for 3-5 minutes before use.
  4. Replace filter every 12 months or 2500 gallons, whichever comes first, or when flow rate decreases noticeably.
COMPATIBILITY

Where the K5520 Fits

This Omnipure K-Series filter works with reverse osmosis systems (as a post-filter), ice makers, refrigerators, beverage dispensers, drinking fountains, and under-sink filtration setups. The 1/4" FPT and QC fittings are standard in residential and light commercial applications. Note that 1/4" NPT threads measure approximately 0.540" in actual diameter, not 0.25" as measured with a ruler.

🔧 Pro Tip: When replacing your K5520, mark the installation date on the filter body with a permanent marker. Carbon block filters lose effectiveness gradually, so replacing on schedule ensures consistent chlorine and taste removal even if flow rate seems fine.
The Omnipure K5520 is a 10" x 2.5" inline carbon block filter with 1 micron filtration, designed for post-RO polishing, ice makers, beverage equipment, and under-counter systems. With 1/4" FPT and 1/4" QC fittings, it removes chlorine, sediment, taste, and odor at up to 0.5 GPM.
SPECIFICATIONS

Omnipure K5520 Technical Details

Dimensions 10" L x 2.5" W
Micron Rating 1 Micron
Filtration Media Carbon Block
Flow Rate 0.5 GPM
Service Life 1 Year or 2500 Gallons
Fitting Size 1/4" FPT and 1/4" QC
Max Pressure 125 PSI
Max Temperature 100°F
INSTALLATION & USE

Installing Your K5520 Inline Filter

  1. Shut off water supply and relieve pressure from the system before installation.
  2. Connect inlet and outlet using 1/4" FPT threaded connections or 1/4" quick-connect fittings, ensuring flow direction matches any arrows on the filter housing.
  3. Turn on water supply slowly and check all connections for leaks, then flush filter for 3-5 minutes before use.
  4. Replace filter every 12 months or 2500 gallons, whichever comes first, or when flow rate decreases noticeably.
COMPATIBILITY

Where the K5520 Fits

This Omnipure K-Series filter works with reverse osmosis systems (as a post-filter), ice makers, refrigerators, beverage dispensers, drinking fountains, and under-sink filtration setups. The 1/4" FPT and QC fittings are standard in residential and light commercial applications. Note that 1/4" NPT threads measure approximately 0.540" in actual diameter, not 0.25" as measured with a ruler.

🔧 Pro Tip: When replacing your K5520, mark the installation date on the filter body with a permanent marker. Carbon block filters lose effectiveness gradually, so replacing on schedule ensures consistent chlorine and taste removal even if flow rate seems fine.
Select Connection
Select Choose
From $10.25

Original: $29.30

-65%
Omnipure - K5520 - 10" x 2.5" 1 Micron Carbon Block Inline Filter—

$29.30

$10.25

Description

The Omnipure K5520 is a 10" x 2.5" inline carbon block filter with 1 micron filtration, designed for post-RO polishing, ice makers, beverage equipment, and under-counter systems. With 1/4" FPT and 1/4" QC fittings, it removes chlorine, sediment, taste, and odor at up to 0.5 GPM.
SPECIFICATIONS

Omnipure K5520 Technical Details

Dimensions 10" L x 2.5" W
Micron Rating 1 Micron
Filtration Media Carbon Block
Flow Rate 0.5 GPM
Service Life 1 Year or 2500 Gallons
Fitting Size 1/4" FPT and 1/4" QC
Max Pressure 125 PSI
Max Temperature 100°F
INSTALLATION & USE

Installing Your K5520 Inline Filter

  1. Shut off water supply and relieve pressure from the system before installation.
  2. Connect inlet and outlet using 1/4" FPT threaded connections or 1/4" quick-connect fittings, ensuring flow direction matches any arrows on the filter housing.
  3. Turn on water supply slowly and check all connections for leaks, then flush filter for 3-5 minutes before use.
  4. Replace filter every 12 months or 2500 gallons, whichever comes first, or when flow rate decreases noticeably.
COMPATIBILITY

Where the K5520 Fits

This Omnipure K-Series filter works with reverse osmosis systems (as a post-filter), ice makers, refrigerators, beverage dispensers, drinking fountains, and under-sink filtration setups. The 1/4" FPT and QC fittings are standard in residential and light commercial applications. Note that 1/4" NPT threads measure approximately 0.540" in actual diameter, not 0.25" as measured with a ruler.

🔧 Pro Tip: When replacing your K5520, mark the installation date on the filter body with a permanent marker. Carbon block filters lose effectiveness gradually, so replacing on schedule ensures consistent chlorine and taste removal even if flow rate seems fine.
