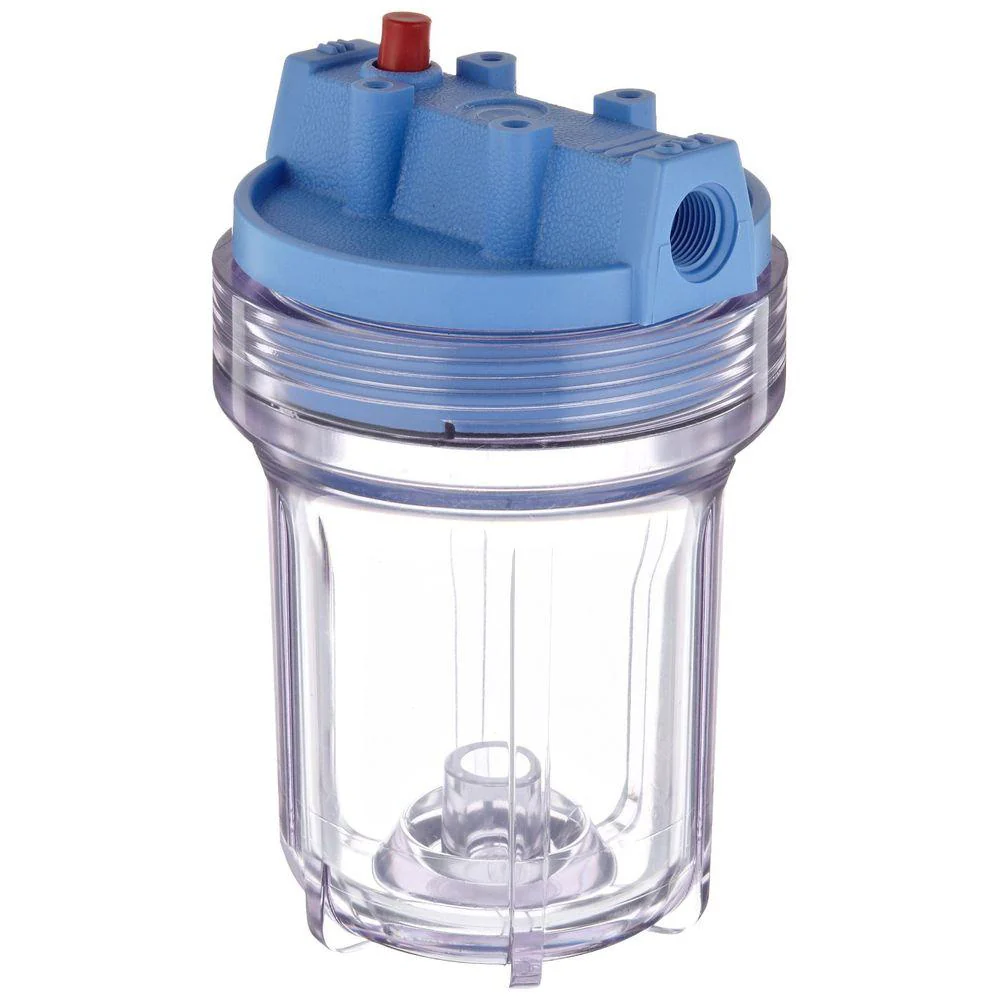

Pentek - Slim Line 5" Filter Housing - Blue Cap / Clear Sump

Product image 1

Pentek - Slim Line 5" Filter Housing - Blue Cap / Clear Sump

Pentek Slim Line Housing

5" Compact Filter Housing with 1/4" NPT Connections

Space-saving reinforced polypropylene housing for low-flow residential and commercial applications
125 PSI Max Pressure 1/4" NPT Threading FDA Compliant Clear Sump
The Pentek #5 Slim Line housing solves installation problems where standard 10" housings won't fit. Built from reinforced polypropylene with a blue cap and clear sump, it accepts any 5" x 2.5" sediment or carbon cartridge for drinking water, food service, or humidification systems.
SPECIFICATIONS

Housing Details

Filter Cartridge Size 5" x 2.5" diameter
Material Reinforced polypropylene cap and sump
Connection Type 1/4" female NPT inlet/outlet
O-Ring Buna-N (nitrile butadiene rubber)
Flow Rate 3 GPM maximum (2 PSI pressure drop)
Max Operating Pressure 125 PSI
Max Operating Temperature 125°F (51.7°C)
Compliance FDA standards for food contact
COMPATIBILITY

Cartridge Requirements

This Pentek slim line housing accepts any standard 5 inch length x 2.5 inch diameter filter cartridge, including sediment (1, 5, 10, 20, 50 micron), activated carbon block, or granular carbon (GAC) cartridges. Common applications include point-of-use drinking water filtration, ice maker supply lines, refrigerator filters, beverage equipment, humidifier protection, and aquarium water prep. The 1/4" NPT female ports work with standard brass or plastic threaded fittings and can be installed in any orientation where space is limited.

Pentek Slim Line Housing

5" Compact Filter Housing with 1/4" NPT Connections

Space-saving reinforced polypropylene housing for low-flow residential and commercial applications
125 PSI Max Pressure 1/4" NPT Threading FDA Compliant Clear Sump
The Pentek #5 Slim Line housing solves installation problems where standard 10" housings won't fit. Built from reinforced polypropylene with a blue cap and clear sump, it accepts any 5" x 2.5" sediment or carbon cartridge for drinking water, food service, or humidification systems.
SPECIFICATIONS

Housing Details

Filter Cartridge Size 5" x 2.5" diameter
Material Reinforced polypropylene cap and sump
Connection Type 1/4" female NPT inlet/outlet
O-Ring Buna-N (nitrile butadiene rubber)
Flow Rate 3 GPM maximum (2 PSI pressure drop)
Max Operating Pressure 125 PSI
Max Operating Temperature 125°F (51.7°C)
Compliance FDA standards for food contact
COMPATIBILITY

Cartridge Requirements

This Pentek slim line housing accepts any standard 5 inch length x 2.5 inch diameter filter cartridge, including sediment (1, 5, 10, 20, 50 micron), activated carbon block, or granular carbon (GAC) cartridges. Common applications include point-of-use drinking water filtration, ice maker supply lines, refrigerator filters, beverage equipment, humidifier protection, and aquarium water prep. The 1/4" NPT female ports work with standard brass or plastic threaded fittings and can be installed in any orientation where space is limited.

Select Connection Size
Select Pressure Release (PR) Button
From $10.64

Original: $30.41

-65%
Pentek - Slim Line 5" Filter Housing - Blue Cap / Clear Sump—

$30.41

$10.64

Description

Pentek Slim Line Housing

5" Compact Filter Housing with 1/4" NPT Connections

Space-saving reinforced polypropylene housing for low-flow residential and commercial applications
125 PSI Max Pressure 1/4" NPT Threading FDA Compliant Clear Sump
The Pentek #5 Slim Line housing solves installation problems where standard 10" housings won't fit. Built from reinforced polypropylene with a blue cap and clear sump, it accepts any 5" x 2.5" sediment or carbon cartridge for drinking water, food service, or humidification systems.
SPECIFICATIONS

Housing Details

Filter Cartridge Size 5" x 2.5" diameter
Material Reinforced polypropylene cap and sump
Connection Type 1/4" female NPT inlet/outlet
O-Ring Buna-N (nitrile butadiene rubber)
Flow Rate 3 GPM maximum (2 PSI pressure drop)
Max Operating Pressure 125 PSI
Max Operating Temperature 125°F (51.7°C)
Compliance FDA standards for food contact
COMPATIBILITY

Cartridge Requirements

This Pentek slim line housing accepts any standard 5 inch length x 2.5 inch diameter filter cartridge, including sediment (1, 5, 10, 20, 50 micron), activated carbon block, or granular carbon (GAC) cartridges. Common applications include point-of-use drinking water filtration, ice maker supply lines, refrigerator filters, beverage equipment, humidifier protection, and aquarium water prep. The 1/4" NPT female ports work with standard brass or plastic threaded fittings and can be installed in any orientation where space is limited.
