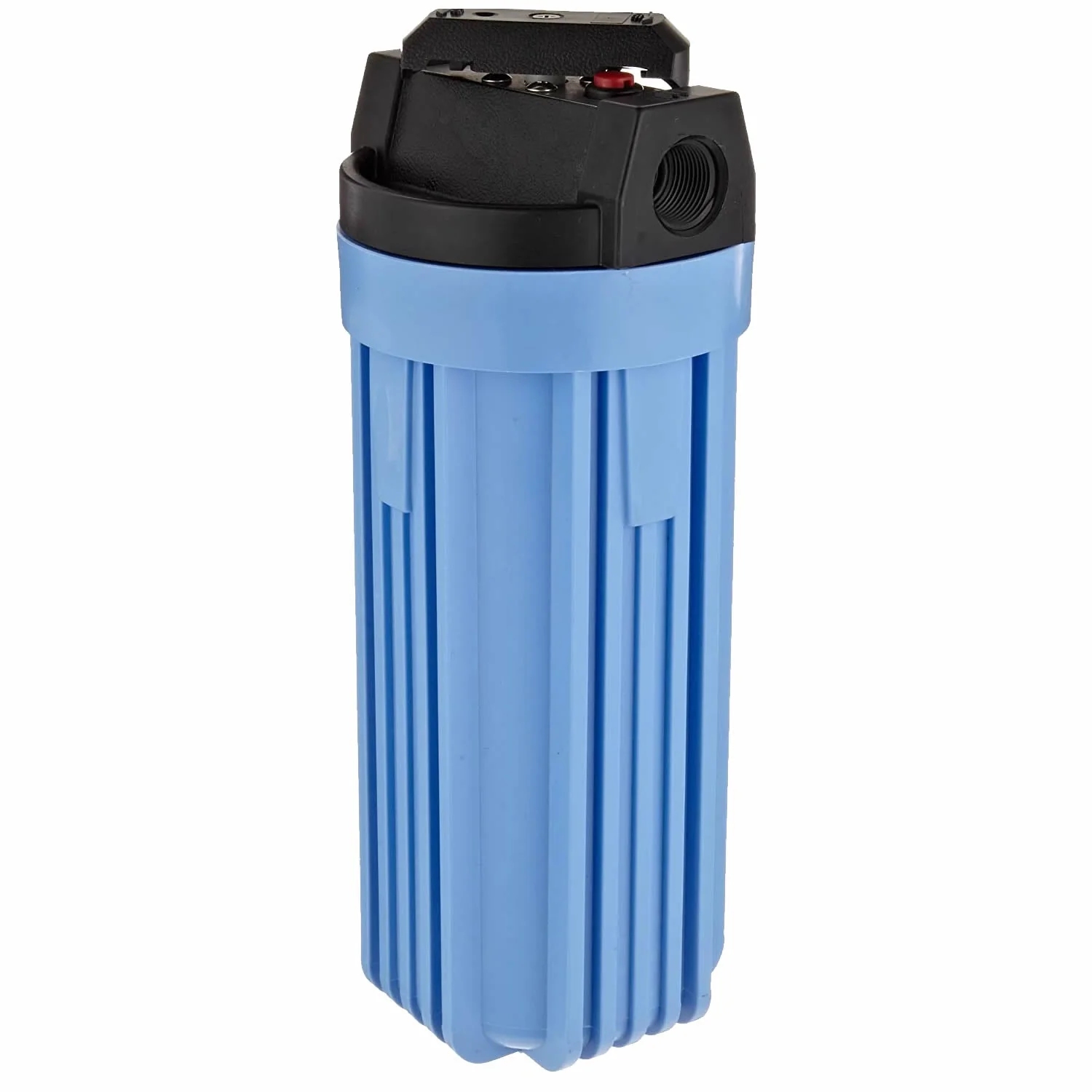

Pentek - Standard 10" Valve-In-Head Filter Housing - Black Cap / Blue Sump - 3/4" NPT
Pentek Standard 10" Valve-In-Head Housing
| Cartridge Compatibility | 10" x 2.5" diameter standard cartridges |
| Connection Size | 3/4" female NPT inlet and outlet |
| Maximum Pressure | 125 PSI |
| Maximum Temperature | 125°F (51.7°C) |
| Pressure Drop | 4 PSI at 8 GPM flow rate |
| Housing Dimensions | 12.5" H x 5.125" W |
| Materials | Reinforced polypropylene cap and sump, Buna-N O-ring |
| Features | Integrated valve, pressure relief button |
Setup and Cartridge Replacement
- Thread housing onto 3/4" NPT plumbing connections and install your choice of 10" x 2.5" sediment or carbon cartridge inside the blue sump
- Use the integrated valve to shut off both inlet and outlet ports simultaneously before cartridge changes, eliminating the need for separate shutoff valves
- Press the pressure relief button on the inlet side to release system pressure before unscrewing the sump for easier cartridge access
- Replace the cartridge according to manufacturer specifications or when flow rate decreases noticeably, ensuring the Buna-N O-ring is properly seated before reassembly
Applications and Filter Options
This Pentek valve-in-head housing accepts all standard 10-inch by 2.5-inch diameter replacement cartridges, including sediment filters for particulate removal, carbon block filters for chlorine and taste reduction, and specialty cartridges for iron, sulfur, or scale control. Suitable for residential drinking water systems, food service equipment, humidification systems, commercial beverage equipment, and light industrial process water applications. The reinforced polypropylene construction provides excellent chemical resistance for municipal and well water sources.
