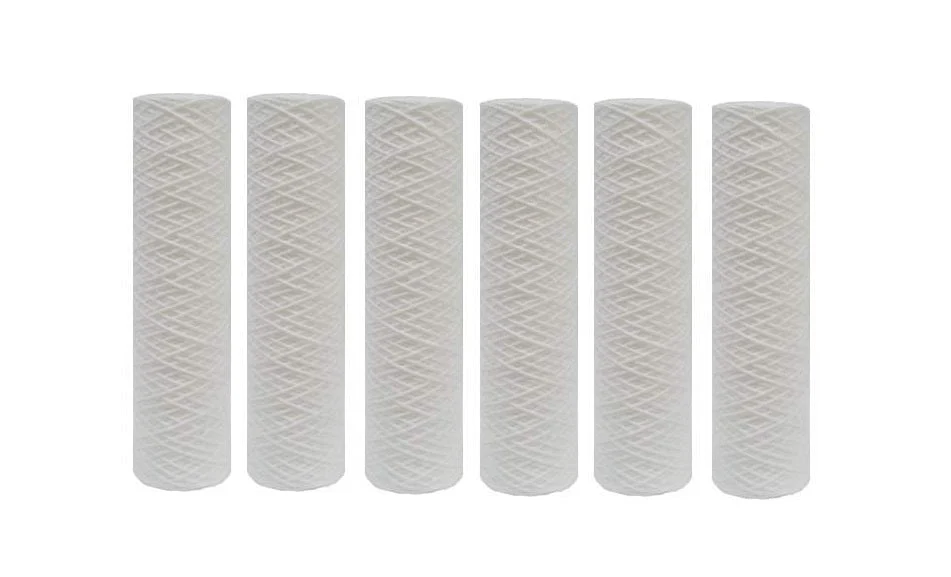

PureT - SC Series - 10" x 2.5" String Wound Cartridge Filter

Product image 1
1 / 3

PureT - SC Series - 10" x 2.5" String Wound Cartridge Filter

The PureT SC Series 10" x 2.5" String Wound Cartridge Filter delivers true depth filtration with exceptional dirt holding capacity across a wide range of micron ratings from 1 to 50 micron. Manufactured using a continuous wind process with 100% polypropylene construction, this cartridge handles aggressive chemicals, extreme pH levels, and temperatures up to 120°F with virtually no media migration.
SPECIFICATIONS

Key Performance Data

Dimensions
9-7/8" x 2.5"
Standard 10" cartridge size
Micron Options
1, 5, 10, 25, 30, 50
Wide range for any sediment load
Filter Media
Polypropylene
Chemical resistant, FDA available
Max Temperature
120°F
Suitable for most applications
Construction
One-Piece
Continuous wind process
Weight
10 oz
Lightweight, easy handling
TECHNICAL DETAILS

Construction & Performance

Filtration Type True depth filtration with graduated density
Media Migration Extremely low due to one-piece wound construction
Chemical Compatibility Concentrated acids, alkalis, strong oxidizers, corrosive fluids and gases
Microorganism Resistance Excellent resistance to bacterial growth
Disposal Easily incinerated to trace of ash
Filter Life Varies by feed water quality; 6 month replacement recommended
Core & Media Variations Multiple material combinations available for specific chemical environments
COMPATIBILITY & APPLICATIONS

Where This Filter Works

The PureT SC Series string wound cartridge is ideal for both whole house sediment filtration and pre-filtration for reverse osmosis systems. Common applications include mineral acids, organic solvents, caustic soda, plating solutions, ferric hydroxide, ethyl alcohol, zinc chloride, animal and vegetable oils, oxidizing agents, potable water, demineralized water, photographic solutions, and pre-membrane protection in RO installations. The polypropylene construction makes it suitable for aggressive industrial fluids where chemical resistance is critical, while also serving residential and commercial water treatment when sediment removal is needed before carbon or RO stages. FDA-compliant versions are available for food-grade and beverage applications.

💧 String wound filters trap sediment throughout the entire depth of the cartridge, not just on the surface, which means longer life and higher dirt holding capacity compared to surface filters. Replace when pressure drop increases significantly or every 6 months, whichever comes first.
The PureT SC Series 10" x 2.5" String Wound Cartridge Filter delivers true depth filtration with exceptional dirt holding capacity across a wide range of micron ratings from 1 to 50 micron. Manufactured using a continuous wind process with 100% polypropylene construction, this cartridge handles aggressive chemicals, extreme pH levels, and temperatures up to 120°F with virtually no media migration.
SPECIFICATIONS

Key Performance Data

Dimensions
9-7/8" x 2.5"
Standard 10" cartridge size
Micron Options
1, 5, 10, 25, 30, 50
Wide range for any sediment load
Filter Media
Polypropylene
Chemical resistant, FDA available
Max Temperature
120°F
Suitable for most applications
Construction
One-Piece
Continuous wind process
Weight
10 oz
Lightweight, easy handling
TECHNICAL DETAILS

Construction & Performance

Filtration Type True depth filtration with graduated density
Media Migration Extremely low due to one-piece wound construction
Chemical Compatibility Concentrated acids, alkalis, strong oxidizers, corrosive fluids and gases
Microorganism Resistance Excellent resistance to bacterial growth
Disposal Easily incinerated to trace of ash
Filter Life Varies by feed water quality; 6 month replacement recommended
Core & Media Variations Multiple material combinations available for specific chemical environments
COMPATIBILITY & APPLICATIONS

Where This Filter Works

The PureT SC Series string wound cartridge is ideal for both whole house sediment filtration and pre-filtration for reverse osmosis systems. Common applications include mineral acids, organic solvents, caustic soda, plating solutions, ferric hydroxide, ethyl alcohol, zinc chloride, animal and vegetable oils, oxidizing agents, potable water, demineralized water, photographic solutions, and pre-membrane protection in RO installations. The polypropylene construction makes it suitable for aggressive industrial fluids where chemical resistance is critical, while also serving residential and commercial water treatment when sediment removal is needed before carbon or RO stages. FDA-compliant versions are available for food-grade and beverage applications.

💧 String wound filters trap sediment throughout the entire depth of the cartridge, not just on the surface, which means longer life and higher dirt holding capacity compared to surface filters. Replace when pressure drop increases significantly or every 6 months, whichever comes first.
Select Micron
Select Choose
From $2.43

Original: $6.95

-65%
PureT - SC Series - 10" x 2.5" String Wound Cartridge Filter—

$6.95

$2.43

Description

The PureT SC Series 10" x 2.5" String Wound Cartridge Filter delivers true depth filtration with exceptional dirt holding capacity across a wide range of micron ratings from 1 to 50 micron. Manufactured using a continuous wind process with 100% polypropylene construction, this cartridge handles aggressive chemicals, extreme pH levels, and temperatures up to 120°F with virtually no media migration.
SPECIFICATIONS

Key Performance Data

Dimensions
9-7/8" x 2.5"
Standard 10" cartridge size
Micron Options
1, 5, 10, 25, 30, 50
Wide range for any sediment load
Filter Media
Polypropylene
Chemical resistant, FDA available
Max Temperature
120°F
Suitable for most applications
Construction
One-Piece
Continuous wind process
Weight
10 oz
Lightweight, easy handling
TECHNICAL DETAILS

Construction & Performance

Filtration Type True depth filtration with graduated density
Media Migration Extremely low due to one-piece wound construction
Chemical Compatibility Concentrated acids, alkalis, strong oxidizers, corrosive fluids and gases
Microorganism Resistance Excellent resistance to bacterial growth
Disposal Easily incinerated to trace of ash
Filter Life Varies by feed water quality; 6 month replacement recommended
Core & Media Variations Multiple material combinations available for specific chemical environments
COMPATIBILITY & APPLICATIONS

Where This Filter Works

The PureT SC Series string wound cartridge is ideal for both whole house sediment filtration and pre-filtration for reverse osmosis systems. Common applications include mineral acids, organic solvents, caustic soda, plating solutions, ferric hydroxide, ethyl alcohol, zinc chloride, animal and vegetable oils, oxidizing agents, potable water, demineralized water, photographic solutions, and pre-membrane protection in RO installations. The polypropylene construction makes it suitable for aggressive industrial fluids where chemical resistance is critical, while also serving residential and commercial water treatment when sediment removal is needed before carbon or RO stages. FDA-compliant versions are available for food-grade and beverage applications.

💧 String wound filters trap sediment throughout the entire depth of the cartridge, not just on the surface, which means longer life and higher dirt holding capacity compared to surface filters. Replace when pressure drop increases significantly or every 6 months, whichever comes first.
