Omnipure (K5630) K-Series Silver Imp. Carbon Inline 2.5" X 12" SIC CARBON INLINE 1/4" FPT

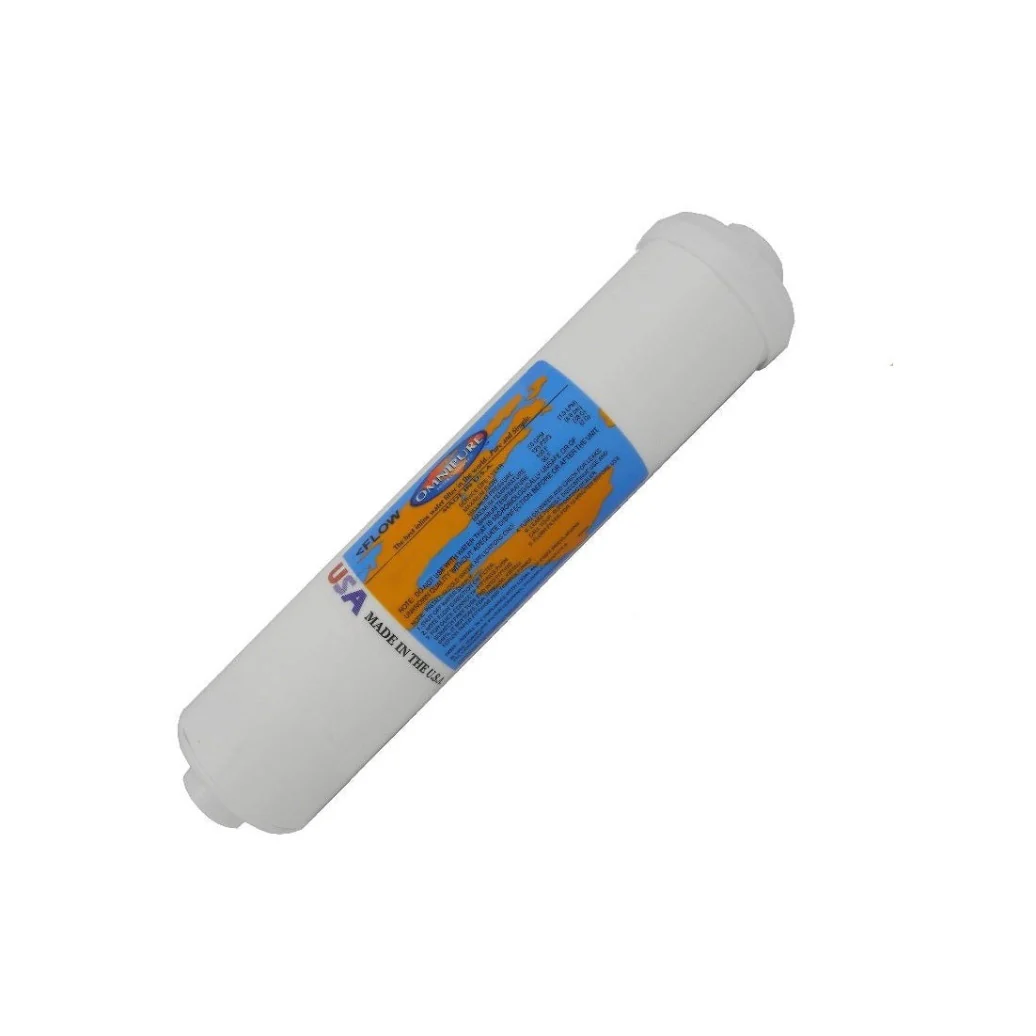

Product image 1

Omnipure (K5630) K-Series Silver Imp. Carbon Inline 2.5" X 12" SIC CARBON INLINE 1/4" FPT

The Omnipure K5630 is a silver-impregnated carbon block inline filter designed for point-of-use reverse osmosis systems and drinking water applications. This 2.5" x 12" cartridge delivers reliable chlorine taste and odor reduction with built-in bacteriostatic protection in a compact inline format.
SPECIFICATIONS

Omnipure K5630 Technical Details

Model Number K5630
Series Omnipure K-Series
Dimensions 2.5" diameter x 12" length
Media Type Silver-impregnated carbon block (SIC)
Connection Type 1/4" Female Pipe Thread (FPT) both ends
Configuration Inline filter cartridge
Primary Application RO post-filter or polishing stage
Service Life 12 months or per taste/odor degradation
INSTALLATION & USE

How to Install the K5630

  1. Shut off water supply and relieve system pressure before installation
  2. Thread 1/4" tubing connectors into both FPT ports on the K5630 cartridge using Teflon tape for secure seal
  3. Mount the inline filter in your RO system's post-filter position or as a final polishing stage before the faucet
  4. Flush the carbon block for 5 minutes after installation to remove carbon fines and activate the media
  5. Replace every 12 months or when you notice taste or odor returning to your water
COMPATIBILITY

Where the K5630 Works Best

The Omnipure K5630 is compatible with standard reverse osmosis systems that use inline post-filters with 1/4" connections. It works as a polishing filter after the RO membrane to remove residual taste and odor, or as a standalone inline carbon filter for refrigerators, ice makers, and drinking water dispensers. The silver-impregnated carbon provides bacteriostatic properties that help prevent bacterial growth inside the filter during its service life. This filter is designed for municipal or well water sources that have already passed through sediment and RO membrane filtration.

🔧 Pro tip: Always install carbon block filters with flow direction following the arrow on the housing (if marked). For inline cartridges like the K5630, the water typically flows through the outer carbon block toward the inner core, so confirm your system's flow path matches the filter's intended orientation for maximum contact time and filtration efficiency.
The Omnipure K5630 is a silver-impregnated carbon block inline filter designed for point-of-use reverse osmosis systems and drinking water applications. This 2.5" x 12" cartridge delivers reliable chlorine taste and odor reduction with built-in bacteriostatic protection in a compact inline format.
SPECIFICATIONS

Omnipure K5630 Technical Details

Model Number K5630
Series Omnipure K-Series
Dimensions 2.5" diameter x 12" length
Media Type Silver-impregnated carbon block (SIC)
Connection Type 1/4" Female Pipe Thread (FPT) both ends
Configuration Inline filter cartridge
Primary Application RO post-filter or polishing stage
Service Life 12 months or per taste/odor degradation
INSTALLATION & USE

How to Install the K5630

  1. Shut off water supply and relieve system pressure before installation
  2. Thread 1/4" tubing connectors into both FPT ports on the K5630 cartridge using Teflon tape for secure seal
  3. Mount the inline filter in your RO system's post-filter position or as a final polishing stage before the faucet
  4. Flush the carbon block for 5 minutes after installation to remove carbon fines and activate the media
  5. Replace every 12 months or when you notice taste or odor returning to your water
COMPATIBILITY

Where the K5630 Works Best

The Omnipure K5630 is compatible with standard reverse osmosis systems that use inline post-filters with 1/4" connections. It works as a polishing filter after the RO membrane to remove residual taste and odor, or as a standalone inline carbon filter for refrigerators, ice makers, and drinking water dispensers. The silver-impregnated carbon provides bacteriostatic properties that help prevent bacterial growth inside the filter during its service life. This filter is designed for municipal or well water sources that have already passed through sediment and RO membrane filtration.

🔧 Pro tip: Always install carbon block filters with flow direction following the arrow on the housing (if marked). For inline cartridges like the K5630, the water typically flows through the outer carbon block toward the inner core, so confirm your system's flow path matches the filter's intended orientation for maximum contact time and filtration efficiency.
$9.36

Original: $26.75

-65%
Omnipure (K5630) K-Series Silver Imp. Carbon Inline 2.5" X 12" SIC CARBON INLINE 1/4" FPT—

$26.75

$9.36
