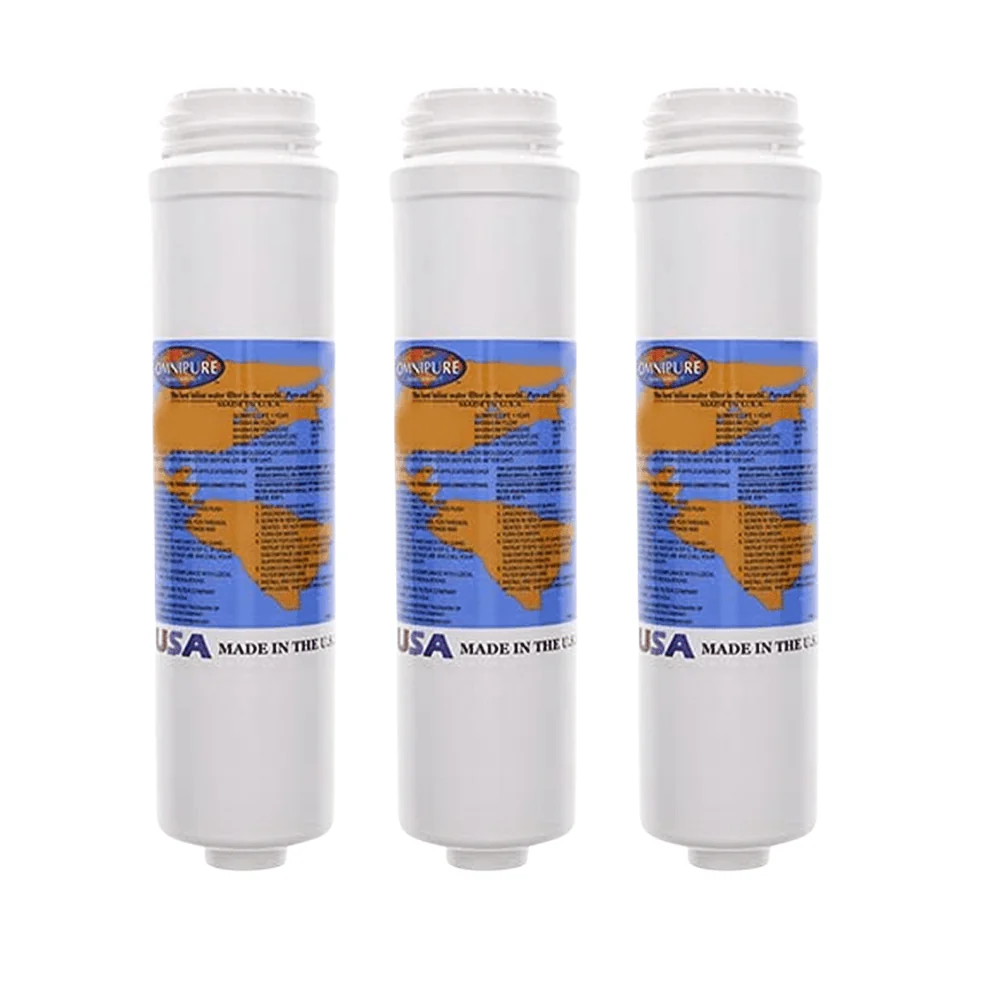

Omnipure - Q5505 - 10" x 2.5" Q-Series Twist Off Sediment Filter 5 Micron
Q5505 10" x 2.5" Twist Off Sediment Filter
5 micron melt-blown polypropylene cartridge with integrated Twist Tap valve technology for RO systems, under-sink, and beverage equipment
The Omnipure Q5505 combines proven melt-blown sediment filtration with the convenience of Twist Tap valve technology, which automatically shuts off water flow when the filter body is disconnected from the head. Built for 5 micron particulate removal, this filter handles dirt, sand, and sediment across a range of residential and light commercial applications with a service life of 3000 gallons or 1 year.
Why the Q5505 Works
Twist Tap Valve
Integrated in-head valve system stops water flow when filter body is removed, preventing spills during cartridge changes
Polypropylene Depth Media
Melt-blown construction captures sediment throughout the filter depth for higher dirt-holding capacity and longer service life
5 Micron Rating
Removes fine sand, silt, dirt, and rust particles down to 5 microns, protecting downstream filters and equipment
Q-Series Compatibility
Designed for use with existing Omnipure Q-Series heads in 1/4" Quick-Connect, 1/4" NPT, or 3/8" NPT configurations
Robust Operating Range
Rated to 125 PSIG and 100°F, suitable for most residential and commercial water systems with 0.5 GPM flow rate
Standard 10" Form Factor
2.5" diameter by 10" length fits typical under-sink housings and compact equipment installations
Technical Details
| Model Number | Q5505 |
| Dimensions | 10" L x 2.5" W |
| Micron Rating | 5 Micron |
| Media Type | Melt-Blown Polypropylene |
| Flow Rate | 0.5 GPM |
| Service Life | 3000 Gallons or 1 Year |
| Max Pressure | 125 PSIG |
| Max Temperature | 100°F |
| Connection Type | Q-Series Twist Off (Requires Existing Q-Series Head) |
Where It Fits
The Omnipure Q5505 is a replacement cartridge that requires an existing Omnipure Q-Series head (available separately in 1/4" Quick-Connect, 1/4" NPT female, or 3/8" NPT female thread configurations). Compatible applications include reverse osmosis pre-filtration, under-sink drinking water systems, ice makers, refrigerators, beverage dispensers, drinking fountains, and whole-house sediment filtration stages. Part of the Q55xx series, this filter provides sediment protection across residential and light commercial installations.
Omnipure Q-Series filters are manufactured to NSF standards and trusted by water treatment professionals across North America.
