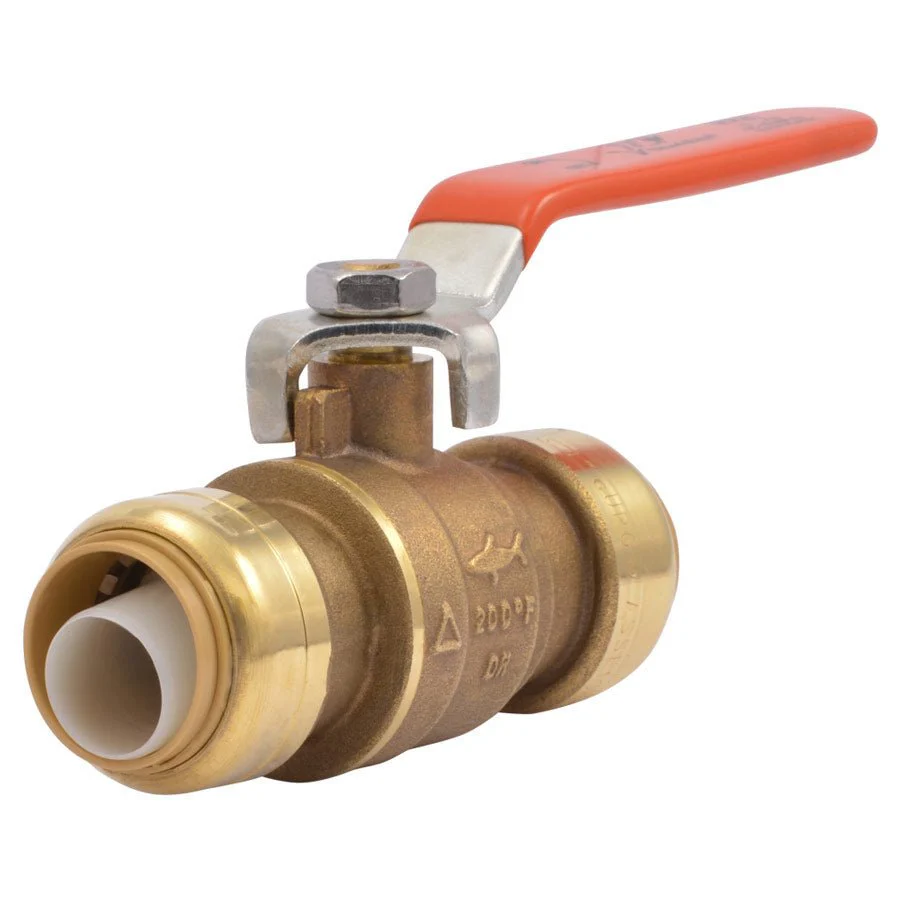

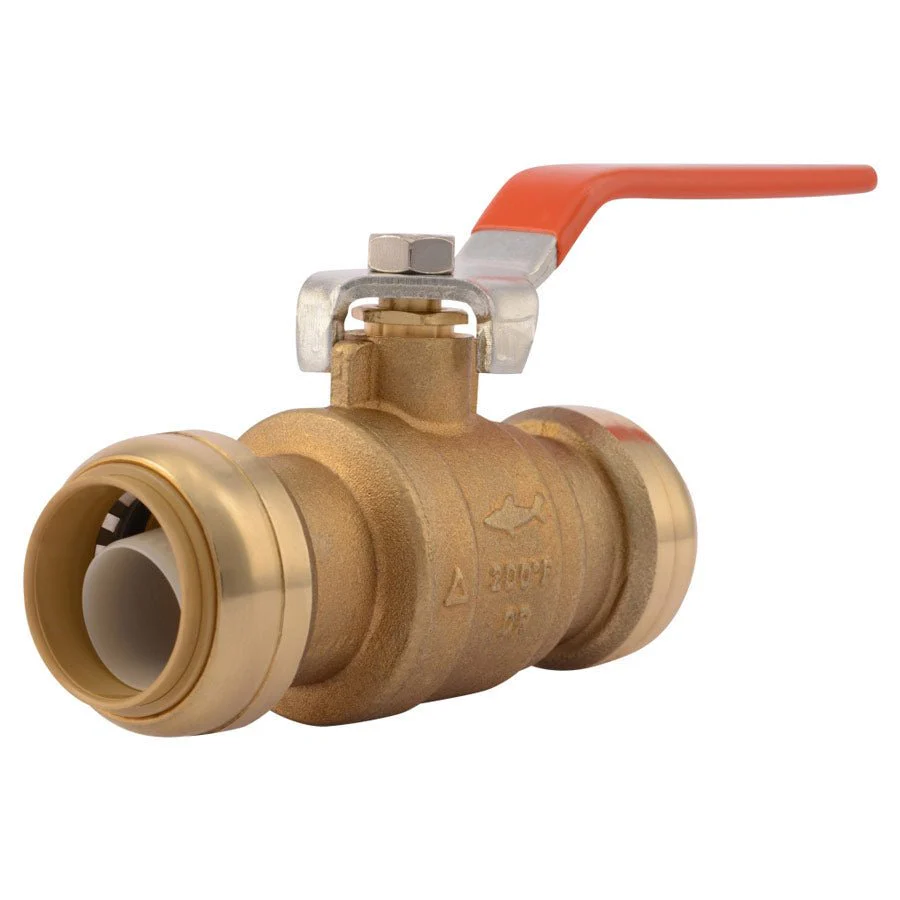

SharkBite-Ball Valve
The SharkBite Ball Valve delivers tool-free installation with push-to-connect technology that works on copper, PEX, CPVC, and PE-RT pipe. This quarter-turn shutoff valve eliminates soldering, clamping, and gluing for faster potable water and hydronic heating installations.
SPECIFICATIONS
SharkBite Ball Valve Technical Details
| Manufacturer | SharkBite |
| Valve Type | Quarter-turn ball valve |
| Connection Method | Push-to-connect (push-fit) |
| Compatible Pipe Types | Copper, PEX, CPVC, PE-RT |
| Application | Potable water, hydronic heating systems |
| Installation Tools Required | None (tool-free push connection) |
| Rotation After Install | Yes, valve body rotates for accessibility |
| Certifications | Approved for potable water use |
INSTALLATION & USE
How to Install the SharkBite Ball Valve
- Cut pipe squarely and deburr the outside edge completely to prevent damage to the O-ring seal.
- Mark the pipe at the insertion depth specified for your pipe size, then push the SharkBite valve firmly onto the pipe until it reaches the depth mark.
- Rotate the valve body to the desired position for easy handle access, then test the connection by turning water on slowly.
- Operate the quarter-turn handle to verify smooth open and closed positions before putting the system into full service.
COMPATIBILITY
Pipe & System Compatibility
The SharkBite Ball Valve connects to copper, PEX, CPVC, and PE-RT pipe in any combination without adapters or transition fittings. Suitable for both potable water distribution systems and closed-loop hydronic heating applications. The push-fit connection forms a watertight seal immediately upon installation, with no cure time or additional securing required.
🔧 Pro Tip: After pushing the valve onto the pipe, give it a firm tug to confirm the grab ring has engaged. The ability to rotate the valve body after installation makes it easier to position the handle for accessibility in cramped mechanical rooms or under-sink applications.
The SharkBite Ball Valve delivers tool-free installation with push-to-connect technology that works on copper, PEX, CPVC, and PE-RT pipe. This quarter-turn shutoff valve eliminates soldering, clamping, and gluing for faster potable water and hydronic heating installations.
SPECIFICATIONS
SharkBite Ball Valve Technical Details
| Manufacturer | SharkBite |
| Valve Type | Quarter-turn ball valve |
| Connection Method | Push-to-connect (push-fit) |
| Compatible Pipe Types | Copper, PEX, CPVC, PE-RT |
| Application | Potable water, hydronic heating systems |
| Installation Tools Required | None (tool-free push connection) |
| Rotation After Install | Yes, valve body rotates for accessibility |
| Certifications | Approved for potable water use |
INSTALLATION & USE
How to Install the SharkBite Ball Valve
- Cut pipe squarely and deburr the outside edge completely to prevent damage to the O-ring seal.
- Mark the pipe at the insertion depth specified for your pipe size, then push the SharkBite valve firmly onto the pipe until it reaches the depth mark.
- Rotate the valve body to the desired position for easy handle access, then test the connection by turning water on slowly.
- Operate the quarter-turn handle to verify smooth open and closed positions before putting the system into full service.
COMPATIBILITY
Pipe & System Compatibility
The SharkBite Ball Valve connects to copper, PEX, CPVC, and PE-RT pipe in any combination without adapters or transition fittings. Suitable for both potable water distribution systems and closed-loop hydronic heating applications. The push-fit connection forms a watertight seal immediately upon installation, with no cure time or additional securing required.
🔧 Pro Tip: After pushing the valve onto the pipe, give it a firm tug to confirm the grab ring has engaged. The ability to rotate the valve body after installation makes it easier to position the handle for accessibility in cramped mechanical rooms or under-sink applications.
Select Size
From $17.09
Original: $48.83
-65%SharkBite-Ball Valve—
$48.83
$17.09Description
The SharkBite Ball Valve delivers tool-free installation with push-to-connect technology that works on copper, PEX, CPVC, and PE-RT pipe. This quarter-turn shutoff valve eliminates soldering, clamping, and gluing for faster potable water and hydronic heating installations.
SPECIFICATIONS
SharkBite Ball Valve Technical Details
| Manufacturer | SharkBite |
| Valve Type | Quarter-turn ball valve |
| Connection Method | Push-to-connect (push-fit) |
| Compatible Pipe Types | Copper, PEX, CPVC, PE-RT |
| Application | Potable water, hydronic heating systems |
| Installation Tools Required | None (tool-free push connection) |
| Rotation After Install | Yes, valve body rotates for accessibility |
| Certifications | Approved for potable water use |
INSTALLATION & USE
How to Install the SharkBite Ball Valve
- Cut pipe squarely and deburr the outside edge completely to prevent damage to the O-ring seal.
- Mark the pipe at the insertion depth specified for your pipe size, then push the SharkBite valve firmly onto the pipe until it reaches the depth mark.
- Rotate the valve body to the desired position for easy handle access, then test the connection by turning water on slowly.
- Operate the quarter-turn handle to verify smooth open and closed positions before putting the system into full service.
COMPATIBILITY
Pipe & System Compatibility
The SharkBite Ball Valve connects to copper, PEX, CPVC, and PE-RT pipe in any combination without adapters or transition fittings. Suitable for both potable water distribution systems and closed-loop hydronic heating applications. The push-fit connection forms a watertight seal immediately upon installation, with no cure time or additional securing required.
🔧 Pro Tip: After pushing the valve onto the pipe, give it a firm tug to confirm the grab ring has engaged. The ability to rotate the valve body after installation makes it easier to position the handle for accessibility in cramped mechanical rooms or under-sink applications.
