SharkBite-(U139LF) 3/4" × 1" MNPT Reducing Male Connector

Product image 1

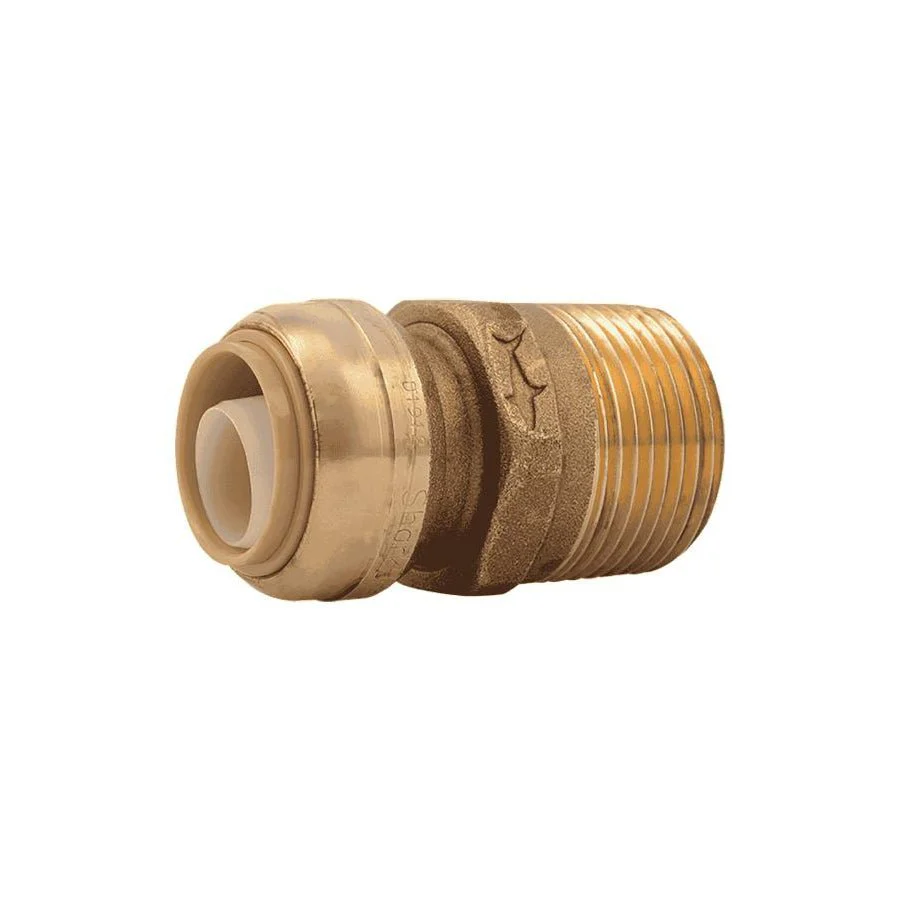

SharkBite-(U139LF) 3/4" × 1" MNPT Reducing Male Connector

The SharkBite U139LF 3/4" × 1" MNPT Reducing Male Connector delivers tool-free push-to-connect installation on one end and standard male pipe thread on the other, bridging modern push-fit systems with traditional threaded fixtures. Compatible with copper, PEX, CPVC, PE-RT, and HDPE, this lead-free brass fitting handles potable water and radiant heating applications up to 200°F and 200 psi.
SPECIFICATIONS

SharkBite U139LF Technical Details

Model Number U139LF
Connection Type 3/4" Push-Fit × 1" MNPT
Material Lead-Free Brass (DZR)
Pipe Compatibility Copper, PEX, CPVC, PE-RT, HDPE
Max Temperature 200°F
Max Pressure 200 PSI
Certifications NSF/ANSI 61, Lead-Free Compliant
Application Potable Water, Radiant Heating
INSTALLATION & USE

How to Install the SharkBite U139LF

  1. Cut pipe square and deburr the end. Measure and mark insertion depth on pipe (refer to SharkBite depth chart).
  2. Push the pipe firmly into the push-fit end until it reaches the internal tube stop. No tools, solder, or glue required.
  3. Apply pipe thread sealant or Teflon tape to the 1" male threads and hand-tighten into the female threaded fitting or adapter.
  4. Pressurize the system and inspect for leaks. Use SharkBite disconnect clip or disconnect tongs to remove if needed.
COMPATIBILITY

Pipe and Application Compatibility

The SharkBite U139LF reducing male connector works with 3/4" copper (CTS), PEX (all types), CPVC, PE-RT, and HDPE pipe on the push-fit end, and threads into any standard 1" female pipe thread (FPT) fitting. Suitable for potable water distribution, hydronic heating systems, and behind-the-wall or underground installations where permanent, code-compliant connections are required without access panels.

🔧 Pro Tip: Always use a SharkBite deburring tool and check for pipe roundness before insertion. Oval or burred pipes compromise the O-ring seal and can cause slow leaks under pressure.
The SharkBite U139LF 3/4" × 1" MNPT Reducing Male Connector delivers tool-free push-to-connect installation on one end and standard male pipe thread on the other, bridging modern push-fit systems with traditional threaded fixtures. Compatible with copper, PEX, CPVC, PE-RT, and HDPE, this lead-free brass fitting handles potable water and radiant heating applications up to 200°F and 200 psi.
SPECIFICATIONS

SharkBite U139LF Technical Details

Model Number U139LF
Connection Type 3/4" Push-Fit × 1" MNPT
Material Lead-Free Brass (DZR)
Pipe Compatibility Copper, PEX, CPVC, PE-RT, HDPE
Max Temperature 200°F
Max Pressure 200 PSI
Certifications NSF/ANSI 61, Lead-Free Compliant
Application Potable Water, Radiant Heating
INSTALLATION & USE

How to Install the SharkBite U139LF

  1. Cut pipe square and deburr the end. Measure and mark insertion depth on pipe (refer to SharkBite depth chart).
  2. Push the pipe firmly into the push-fit end until it reaches the internal tube stop. No tools, solder, or glue required.
  3. Apply pipe thread sealant or Teflon tape to the 1" male threads and hand-tighten into the female threaded fitting or adapter.
  4. Pressurize the system and inspect for leaks. Use SharkBite disconnect clip or disconnect tongs to remove if needed.
COMPATIBILITY

Pipe and Application Compatibility

The SharkBite U139LF reducing male connector works with 3/4" copper (CTS), PEX (all types), CPVC, PE-RT, and HDPE pipe on the push-fit end, and threads into any standard 1" female pipe thread (FPT) fitting. Suitable for potable water distribution, hydronic heating systems, and behind-the-wall or underground installations where permanent, code-compliant connections are required without access panels.

🔧 Pro Tip: Always use a SharkBite deburring tool and check for pipe roundness before insertion. Oval or burred pipes compromise the O-ring seal and can cause slow leaks under pressure.
$10.04

Original: $28.69

-65%
SharkBite-(U139LF) 3/4" × 1" MNPT Reducing Male Connector—

$28.69

$10.04

Description

The SharkBite U139LF 3/4" × 1" MNPT Reducing Male Connector delivers tool-free push-to-connect installation on one end and standard male pipe thread on the other, bridging modern push-fit systems with traditional threaded fixtures. Compatible with copper, PEX, CPVC, PE-RT, and HDPE, this lead-free brass fitting handles potable water and radiant heating applications up to 200°F and 200 psi.
SPECIFICATIONS

SharkBite U139LF Technical Details

Model Number U139LF
Connection Type 3/4" Push-Fit × 1" MNPT
Material Lead-Free Brass (DZR)
Pipe Compatibility Copper, PEX, CPVC, PE-RT, HDPE
Max Temperature 200°F
Max Pressure 200 PSI
Certifications NSF/ANSI 61, Lead-Free Compliant
Application Potable Water, Radiant Heating
INSTALLATION & USE

How to Install the SharkBite U139LF

  1. Cut pipe square and deburr the end. Measure and mark insertion depth on pipe (refer to SharkBite depth chart).
  2. Push the pipe firmly into the push-fit end until it reaches the internal tube stop. No tools, solder, or glue required.
  3. Apply pipe thread sealant or Teflon tape to the 1" male threads and hand-tighten into the female threaded fitting or adapter.
  4. Pressurize the system and inspect for leaks. Use SharkBite disconnect clip or disconnect tongs to remove if needed.
COMPATIBILITY

Pipe and Application Compatibility

The SharkBite U139LF reducing male connector works with 3/4" copper (CTS), PEX (all types), CPVC, PE-RT, and HDPE pipe on the push-fit end, and threads into any standard 1" female pipe thread (FPT) fitting. Suitable for potable water distribution, hydronic heating systems, and behind-the-wall or underground installations where permanent, code-compliant connections are required without access panels.

🔧 Pro Tip: Always use a SharkBite deburring tool and check for pipe roundness before insertion. Oval or burred pipes compromise the O-ring seal and can cause slow leaks under pressure.
