Watts-FPP-5-10-222 Flow-Max HP Series Pleated Sediment Filter, 10 IN x 2.5 IN With 222/Flat End Cap, 5 Micron

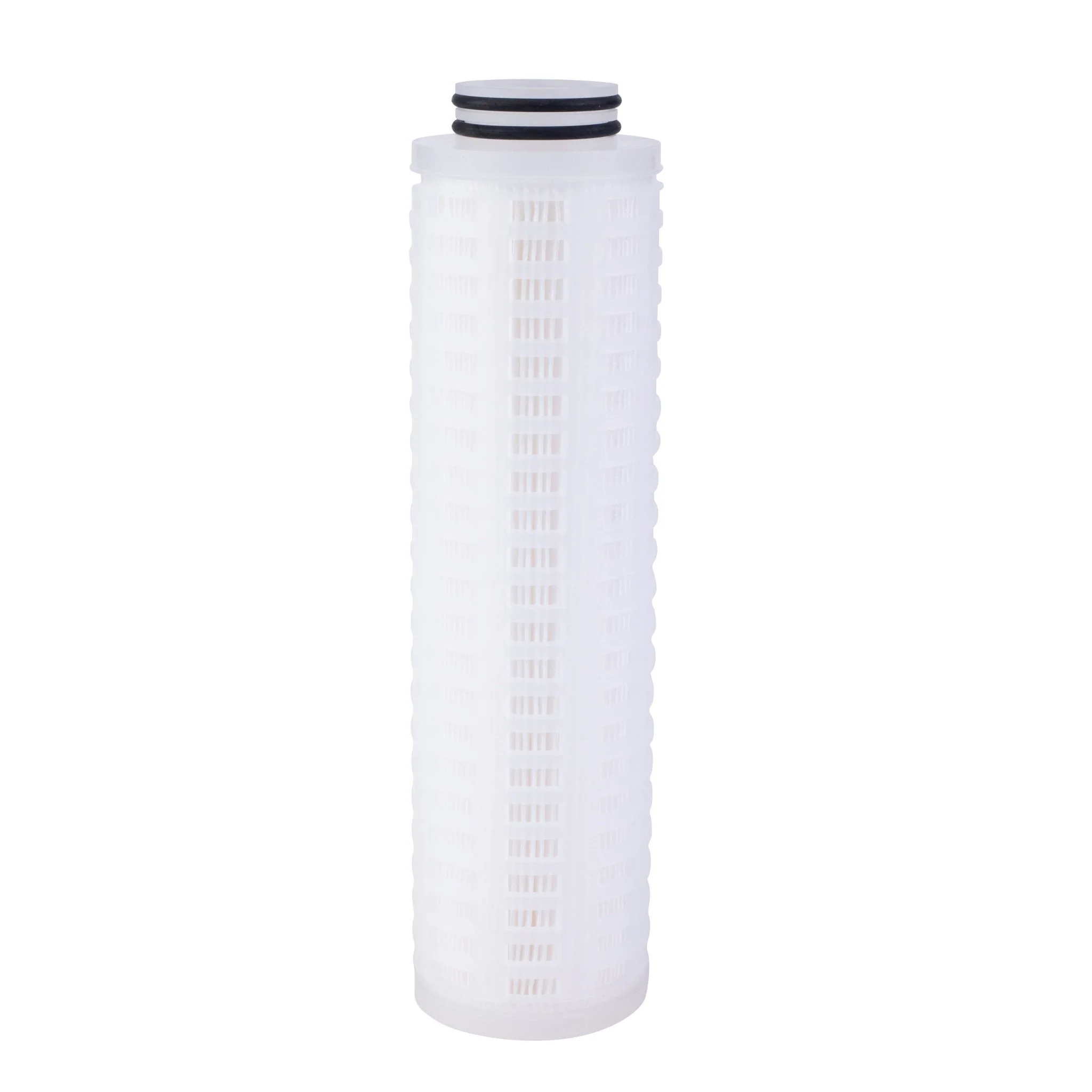

Product image 1

Watts-FPP-5-10-222 Flow-Max HP Series Pleated Sediment Filter, 10 IN x 2.5 IN With 222/Flat End Cap, 5 Micron

The Watts FPP-5-10-222 Flow-Max HP Series delivers professional-grade sediment filtration with 5 micron pleated polypropylene media engineered for superior dirt holding capacity and extended service life. This 10 x 2.5 inch cartridge features 222/flat end caps and 99.98% removal efficiency, making it ideal for whole-house systems, reverse osmosis pre-filtration, and food-grade applications.
SPECIFICATIONS

Watts FPP-5-10-222 Technical Details

Model Number Watts FPP-5-10-222
Dimensions 10 inches x 2.5 inches
Micron Rating 5 micron (99.98% efficiency)
Media Type 100% polypropylene pleated synthetic
End Cap Style 222/Flat end cap configuration
Temperature Range 40°F to 175°F (4.4°C to 79.4°C)
Max Pressure Differential 130 psiD collapse, 35 psiD change-out
Compliance FDA 174.5, 177.1520, 177.1630 (food contact)
INSTALLATION & USE

Filter Replacement Procedure

  1. Shut off water supply and depressurize the system by opening a downstream faucet before removing the filter housing sump
  2. Remove the old cartridge and inspect the housing o-ring for wear or damage, replacing if necessary with food-grade silicone lubricant applied
  3. Insert the Watts FPP-5-10-222 cartridge into the Flow-Max housing, ensuring the 222/flat end caps are properly seated at both ends
  4. Hand-tighten the housing sump, restore water pressure slowly, and check for leaks around the housing cap seal
  5. Monitor pressure differential and replace the cartridge when flow decreases noticeably or pressure differential reaches 35 psiD
COMPATIBILITY

System Requirements

The Watts FPP-5-10-222 is designed specifically for Flow-Max filter housings that accommodate 10 x 2.5 inch cartridges with 222/flat end cap configurations. Compatible with whole-house filtration systems, reverse osmosis pre-filtration stages, and food and beverage processing applications where FDA-compliant materials are required. The pleated construction provides significantly greater surface area than wound or spun sediment filters, resulting in lower pressure drop and longer intervals between filter changes. This cartridge is suitable for well water, municipal water, and commercial applications requiring reliable 5 micron sediment removal.

🔧 Pro tip: Track your pressure differential with a gauge installed before and after the filter housing. Replacing the cartridge at 30-35 psiD instead of waiting for visible flow reduction will prevent strain on downstream components like RO membranes and extend overall system life.
The Watts FPP-5-10-222 Flow-Max HP Series delivers professional-grade sediment filtration with 5 micron pleated polypropylene media engineered for superior dirt holding capacity and extended service life. This 10 x 2.5 inch cartridge features 222/flat end caps and 99.98% removal efficiency, making it ideal for whole-house systems, reverse osmosis pre-filtration, and food-grade applications.
SPECIFICATIONS

Watts FPP-5-10-222 Technical Details

Model Number Watts FPP-5-10-222
Dimensions 10 inches x 2.5 inches
Micron Rating 5 micron (99.98% efficiency)
Media Type 100% polypropylene pleated synthetic
End Cap Style 222/Flat end cap configuration
Temperature Range 40°F to 175°F (4.4°C to 79.4°C)
Max Pressure Differential 130 psiD collapse, 35 psiD change-out
Compliance FDA 174.5, 177.1520, 177.1630 (food contact)
INSTALLATION & USE

Filter Replacement Procedure

  1. Shut off water supply and depressurize the system by opening a downstream faucet before removing the filter housing sump
  2. Remove the old cartridge and inspect the housing o-ring for wear or damage, replacing if necessary with food-grade silicone lubricant applied
  3. Insert the Watts FPP-5-10-222 cartridge into the Flow-Max housing, ensuring the 222/flat end caps are properly seated at both ends
  4. Hand-tighten the housing sump, restore water pressure slowly, and check for leaks around the housing cap seal
  5. Monitor pressure differential and replace the cartridge when flow decreases noticeably or pressure differential reaches 35 psiD
COMPATIBILITY

System Requirements

The Watts FPP-5-10-222 is designed specifically for Flow-Max filter housings that accommodate 10 x 2.5 inch cartridges with 222/flat end cap configurations. Compatible with whole-house filtration systems, reverse osmosis pre-filtration stages, and food and beverage processing applications where FDA-compliant materials are required. The pleated construction provides significantly greater surface area than wound or spun sediment filters, resulting in lower pressure drop and longer intervals between filter changes. This cartridge is suitable for well water, municipal water, and commercial applications requiring reliable 5 micron sediment removal.

🔧 Pro tip: Track your pressure differential with a gauge installed before and after the filter housing. Replacing the cartridge at 30-35 psiD instead of waiting for visible flow reduction will prevent strain on downstream components like RO membranes and extend overall system life.
$46.83

Original: $133.81

-65%
Watts-FPP-5-10-222 Flow-Max HP Series Pleated Sediment Filter, 10 IN x 2.5 IN With 222/Flat End Cap, 5 Micron—

$133.81

$46.83

Description

The Watts FPP-5-10-222 Flow-Max HP Series delivers professional-grade sediment filtration with 5 micron pleated polypropylene media engineered for superior dirt holding capacity and extended service life. This 10 x 2.5 inch cartridge features 222/flat end caps and 99.98% removal efficiency, making it ideal for whole-house systems, reverse osmosis pre-filtration, and food-grade applications.
SPECIFICATIONS

Watts FPP-5-10-222 Technical Details

Model Number Watts FPP-5-10-222
Dimensions 10 inches x 2.5 inches
Micron Rating 5 micron (99.98% efficiency)
Media Type 100% polypropylene pleated synthetic
End Cap Style 222/Flat end cap configuration
Temperature Range 40°F to 175°F (4.4°C to 79.4°C)
Max Pressure Differential 130 psiD collapse, 35 psiD change-out
Compliance FDA 174.5, 177.1520, 177.1630 (food contact)
INSTALLATION & USE

Filter Replacement Procedure

  1. Shut off water supply and depressurize the system by opening a downstream faucet before removing the filter housing sump
  2. Remove the old cartridge and inspect the housing o-ring for wear or damage, replacing if necessary with food-grade silicone lubricant applied
  3. Insert the Watts FPP-5-10-222 cartridge into the Flow-Max housing, ensuring the 222/flat end caps are properly seated at both ends
  4. Hand-tighten the housing sump, restore water pressure slowly, and check for leaks around the housing cap seal
  5. Monitor pressure differential and replace the cartridge when flow decreases noticeably or pressure differential reaches 35 psiD
COMPATIBILITY

System Requirements

The Watts FPP-5-10-222 is designed specifically for Flow-Max filter housings that accommodate 10 x 2.5 inch cartridges with 222/flat end cap configurations. Compatible with whole-house filtration systems, reverse osmosis pre-filtration stages, and food and beverage processing applications where FDA-compliant materials are required. The pleated construction provides significantly greater surface area than wound or spun sediment filters, resulting in lower pressure drop and longer intervals between filter changes. This cartridge is suitable for well water, municipal water, and commercial applications requiring reliable 5 micron sediment removal.

🔧 Pro tip: Track your pressure differential with a gauge installed before and after the filter housing. Replacing the cartridge at 30-35 psiD instead of waiting for visible flow reduction will prevent strain on downstream components like RO membranes and extend overall system life.
