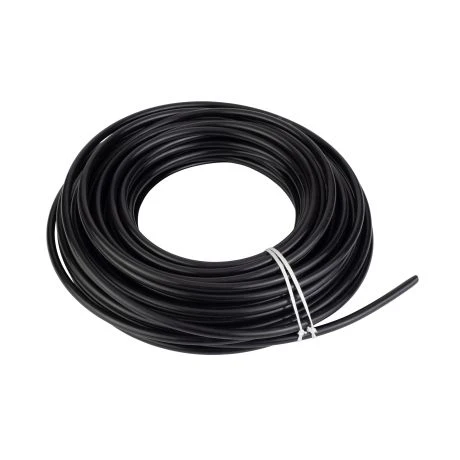

Watts-I8080 Polyethylene Tubing, 1/2" IN OD, 100 FT, Black Low Density
Watts-I8080 Technical Details
| Model Number | Watts-I8080 |
| Tubing Size | 1/2" OD (Outside Diameter) |
| Length | 100 FT Roll |
| Material | Low Density Polyethylene (LDPE) |
| Color | Black |
| Max Working Pressure | 180 PSI at 70°F |
| Compliance | Virgin Non-Toxic FDA Materials |
| Chemical Resistance | Solvents, Acids, Alkalis, Fuels |
Working with Polyethylene Tubing
- Measure and cut tubing to required length using a sharp tubing cutter for clean, square edges
- Inspect cut ends for any deformation or debris and trim if necessary to ensure proper seal with compression fittings
- Insert tubing fully into push-fit or compression fittings, ensuring it seats past the O-ring for a leak-free connection
- Pressure test the system slowly, checking all connection points before reaching full operating pressure
Common Applications
The Watts-I8080 tubing works with standard 1/2" OD compression fittings, push-to-connect fittings, and barbed connections commonly found in reverse osmosis systems, water softeners, refrigerator ice makers, water coolers, misting systems, and point-of-use filtration equipment. The odorless and tasteless properties make it ideal for potable water distribution, while its chemical resistance extends use to light commercial and industrial fluid transfer applications within the rated pressure and temperature ranges.
Watts-I8080 Technical Details
| Model Number | Watts-I8080 |
| Tubing Size | 1/2" OD (Outside Diameter) |
| Length | 100 FT Roll |
| Material | Low Density Polyethylene (LDPE) |
| Color | Black |
| Max Working Pressure | 180 PSI at 70°F |
| Compliance | Virgin Non-Toxic FDA Materials |
| Chemical Resistance | Solvents, Acids, Alkalis, Fuels |
Working with Polyethylene Tubing
- Measure and cut tubing to required length using a sharp tubing cutter for clean, square edges
- Inspect cut ends for any deformation or debris and trim if necessary to ensure proper seal with compression fittings
- Insert tubing fully into push-fit or compression fittings, ensuring it seats past the O-ring for a leak-free connection
- Pressure test the system slowly, checking all connection points before reaching full operating pressure
Common Applications
The Watts-I8080 tubing works with standard 1/2" OD compression fittings, push-to-connect fittings, and barbed connections commonly found in reverse osmosis systems, water softeners, refrigerator ice makers, water coolers, misting systems, and point-of-use filtration equipment. The odorless and tasteless properties make it ideal for potable water distribution, while its chemical resistance extends use to light commercial and industrial fluid transfer applications within the rated pressure and temperature ranges.
