Harmsco- PP-975-0.2-DOE 10" x 2.5" High-Efficiency Pleated Polypropylene DOE 0.2 Micron Filter

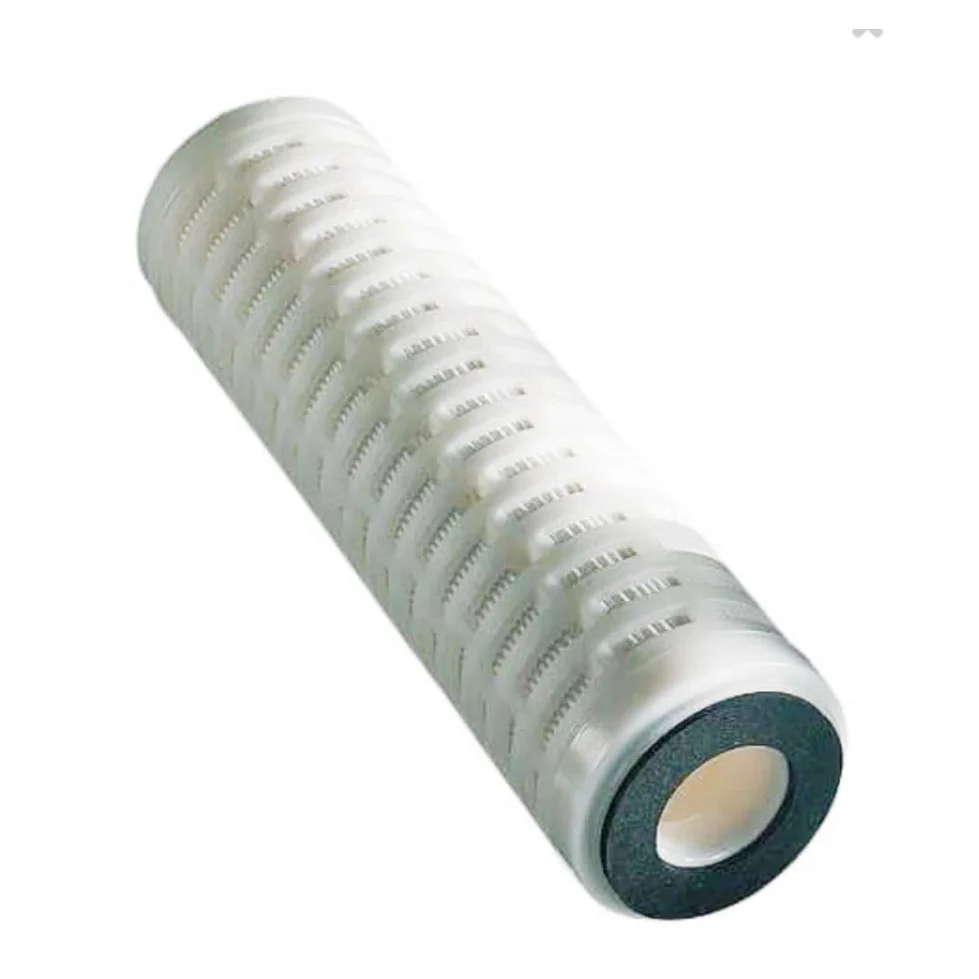

Product image 1

Harmsco- PP-975-0.2-DOE 10" x 2.5" High-Efficiency Pleated Polypropylene DOE 0.2 Micron Filter

The Harmsco PP-975-0.2-DOE is a high-efficiency pleated polypropylene filter engineered for demanding applications where sub-micron filtration matters. With 0.2 micron absolute filtration and gradient density construction, this 10" x 2.5" DOE cartridge delivers superior contaminant removal for pharmaceutical, food processing, semiconductor, and high-purity water systems.
SPECIFICATIONS

Harmsco PP-975-0.2-DOE Technical Details

Micron Rating 0.2 micron (absolute)
Dimensions 10" length x 2.5" outer diameter
End Configuration Double Open End (DOE)
Filter Media Pleated polypropylene microfiber (gradient density)
Flow Rate 2 to 3 GPM
Maximum Temperature 122°F (50°C)
Gasket Material Buna N O-ring
Compliance FDA compliant, all components biologically safe
INSTALLATION & USE

Installing Your Harmsco Pleated Filter

  1. Turn off water supply and relieve system pressure before opening the filter housing.
  2. Remove old cartridge and clean the housing sump with a mild sanitizing solution. Inspect the housing O-ring and replace if worn.
  3. Insert the Harmsco PP-975-0.2-DOE cartridge into the housing, ensuring both end caps seat properly in the DOE configuration.
  4. Hand-tighten the housing cap, restore water pressure slowly, and check for leaks around all seals.
  5. Replace the cartridge when differential pressure reaches 25 psid or flow rate diminishes noticeably.
COMPATIBILITY

Housing & System Compatibility

This 10" x 2.5" DOE cartridge fits standard 10-inch filter housings designed for double open end configurations, including Pentek, Harmsco, and compatible third-party housings. Ideal for pre-filtration ahead of RO membranes, high-purity process water systems, pharmaceutical manufacturing lines, and semiconductor fabrication equipment. The all-polypropylene construction makes it suitable for whole-house sediment filtration, food and beverage production, and any application requiring FDA-compliant materials and absolute 0.2 micron removal of particulates, bacteria, and cysts.

🔧 Pro tip: Monitor differential pressure with a gauge to replace this cartridge at 25 psid, not by time alone. The pleated design offers higher dirt-holding capacity than spun or string-wound filters, but fine 0.2 micron media loads faster in high-sediment conditions—tracking pressure drop ensures you're changing it at the right moment for both performance and economy.
The Harmsco PP-975-0.2-DOE is a high-efficiency pleated polypropylene filter engineered for demanding applications where sub-micron filtration matters. With 0.2 micron absolute filtration and gradient density construction, this 10" x 2.5" DOE cartridge delivers superior contaminant removal for pharmaceutical, food processing, semiconductor, and high-purity water systems.
SPECIFICATIONS

Harmsco PP-975-0.2-DOE Technical Details

Micron Rating 0.2 micron (absolute)
Dimensions 10" length x 2.5" outer diameter
End Configuration Double Open End (DOE)
Filter Media Pleated polypropylene microfiber (gradient density)
Flow Rate 2 to 3 GPM
Maximum Temperature 122°F (50°C)
Gasket Material Buna N O-ring
Compliance FDA compliant, all components biologically safe
INSTALLATION & USE

Installing Your Harmsco Pleated Filter

  1. Turn off water supply and relieve system pressure before opening the filter housing.
  2. Remove old cartridge and clean the housing sump with a mild sanitizing solution. Inspect the housing O-ring and replace if worn.
  3. Insert the Harmsco PP-975-0.2-DOE cartridge into the housing, ensuring both end caps seat properly in the DOE configuration.
  4. Hand-tighten the housing cap, restore water pressure slowly, and check for leaks around all seals.
  5. Replace the cartridge when differential pressure reaches 25 psid or flow rate diminishes noticeably.
COMPATIBILITY

Housing & System Compatibility

This 10" x 2.5" DOE cartridge fits standard 10-inch filter housings designed for double open end configurations, including Pentek, Harmsco, and compatible third-party housings. Ideal for pre-filtration ahead of RO membranes, high-purity process water systems, pharmaceutical manufacturing lines, and semiconductor fabrication equipment. The all-polypropylene construction makes it suitable for whole-house sediment filtration, food and beverage production, and any application requiring FDA-compliant materials and absolute 0.2 micron removal of particulates, bacteria, and cysts.

🔧 Pro tip: Monitor differential pressure with a gauge to replace this cartridge at 25 psid, not by time alone. The pleated design offers higher dirt-holding capacity than spun or string-wound filters, but fine 0.2 micron media loads faster in high-sediment conditions—tracking pressure drop ensures you're changing it at the right moment for both performance and economy.
