Omnipure - E5386 - 6" x 2.5" E-Series GAC & 2 oz. Phosphate - Scale Inhibitor - Filter

Product image 1
1 / 3

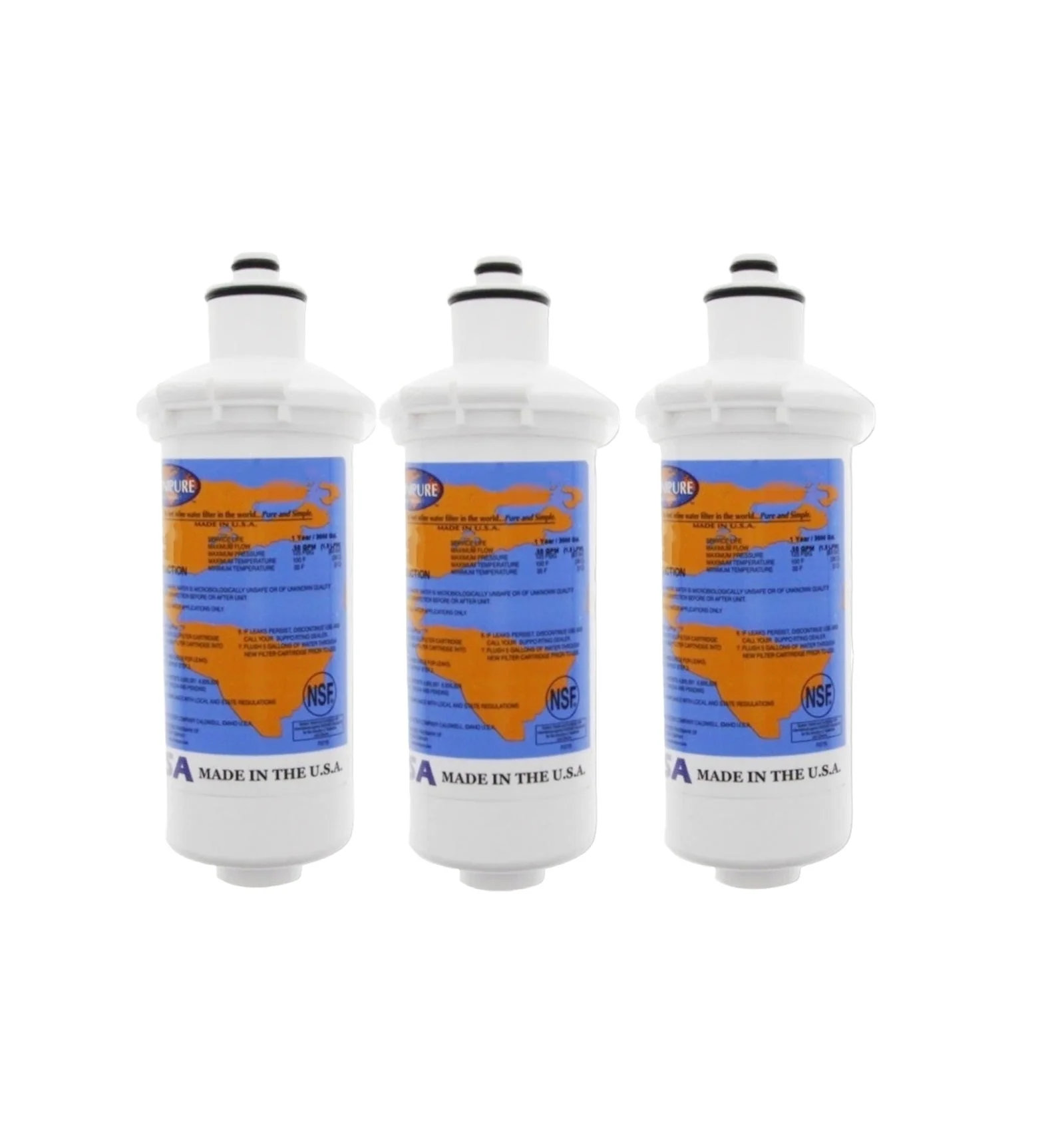

Omnipure - E5386 - 6" x 2.5" E-Series GAC & 2 oz. Phosphate - Scale Inhibitor - Filter

The Omnipure E5386 combines granular activated carbon filtration with 2 oz. of polyphosphate scale inhibitor in a compact 6" x 2.5" inline cartridge designed for point-of-use applications and RO pre-filtration. With twist-on fittings and a straightforward design, this E-Series filter addresses chlorine taste, odor, and scale formation in a single cartridge rated for up to 1000 gallons or 6 months of service.
SPECIFICATIONS

Omnipure E5386 Technical Details

Model Number E5386
Dimensions 6" L x 2.5" W
Filtration Media GAC with Polyphosphate Scale Inhibitor
Flow Rate 0.5 GPM
Service Life 1000 gallons or 6 months
Maximum Pressure 125 PSI
Maximum Temperature 100°F
Connection Type Twist-on fittings
INSTALLATION & USE

Filter Installation Process

  1. Shut off water supply and relieve system pressure before removing the old cartridge
  2. Align the new E5386 cartridge with the filter housing and twist clockwise until the cartridge seats firmly into the cap
  3. Turn water supply back on slowly and check all connections for leaks
  4. Flush the filter for 3-5 minutes to remove carbon fines and activate the polyphosphate media
  5. Replace the cartridge every 6 months or after 1000 gallons, whichever comes first
COMPATIBILITY

Application & System Fit

The Omnipure E5386 is designed for Omnipure E-Series inline filter housings and systems that accommodate 6" x 2.5" proprietary cartridges with twist-on connections. This filter works well as a pre-filter in reverse osmosis systems, under-sink applications, ice makers, and beverage equipment where both chlorine reduction and scale inhibition are required. The polyphosphate media helps protect downstream components from lime scale buildup in areas with moderate to hard water. Verify housing compatibility with 6-inch E-Series cartridges before ordering.

🔧 Pro Tip: If you're installing this filter upstream of an RO membrane, the polyphosphate scale inhibitor will help extend membrane life in hard water areas, but remember that polyphosphate itself should not contact the membrane directly—install at least one additional carbon or sediment stage between the E5386 and the RO membrane.
The Omnipure E5386 combines granular activated carbon filtration with 2 oz. of polyphosphate scale inhibitor in a compact 6" x 2.5" inline cartridge designed for point-of-use applications and RO pre-filtration. With twist-on fittings and a straightforward design, this E-Series filter addresses chlorine taste, odor, and scale formation in a single cartridge rated for up to 1000 gallons or 6 months of service.
SPECIFICATIONS

Omnipure E5386 Technical Details

Model Number E5386
Dimensions 6" L x 2.5" W
Filtration Media GAC with Polyphosphate Scale Inhibitor
Flow Rate 0.5 GPM
Service Life 1000 gallons or 6 months
Maximum Pressure 125 PSI
Maximum Temperature 100°F
Connection Type Twist-on fittings
INSTALLATION & USE

Filter Installation Process

  1. Shut off water supply and relieve system pressure before removing the old cartridge
  2. Align the new E5386 cartridge with the filter housing and twist clockwise until the cartridge seats firmly into the cap
  3. Turn water supply back on slowly and check all connections for leaks
  4. Flush the filter for 3-5 minutes to remove carbon fines and activate the polyphosphate media
  5. Replace the cartridge every 6 months or after 1000 gallons, whichever comes first
COMPATIBILITY

Application & System Fit

The Omnipure E5386 is designed for Omnipure E-Series inline filter housings and systems that accommodate 6" x 2.5" proprietary cartridges with twist-on connections. This filter works well as a pre-filter in reverse osmosis systems, under-sink applications, ice makers, and beverage equipment where both chlorine reduction and scale inhibition are required. The polyphosphate media helps protect downstream components from lime scale buildup in areas with moderate to hard water. Verify housing compatibility with 6-inch E-Series cartridges before ordering.

🔧 Pro Tip: If you're installing this filter upstream of an RO membrane, the polyphosphate scale inhibitor will help extend membrane life in hard water areas, but remember that polyphosphate itself should not contact the membrane directly—install at least one additional carbon or sediment stage between the E5386 and the RO membrane.
