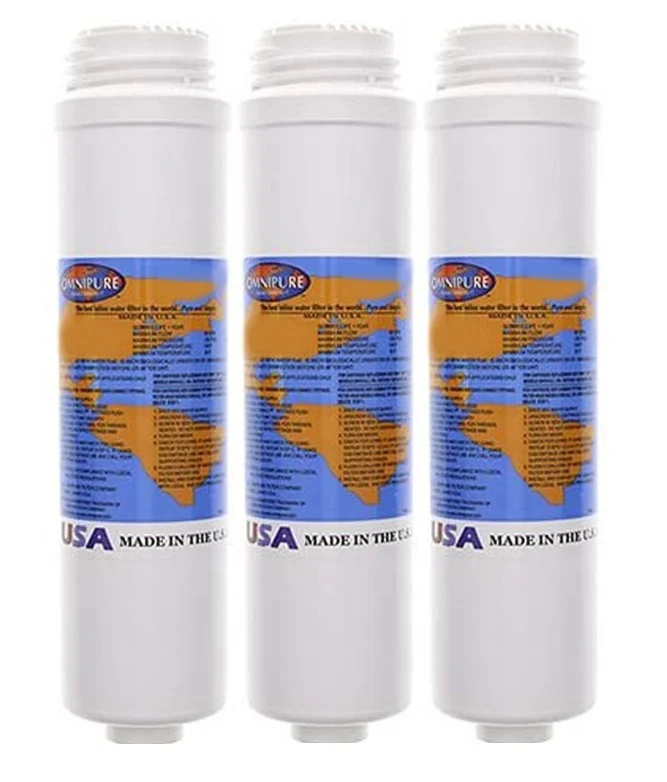

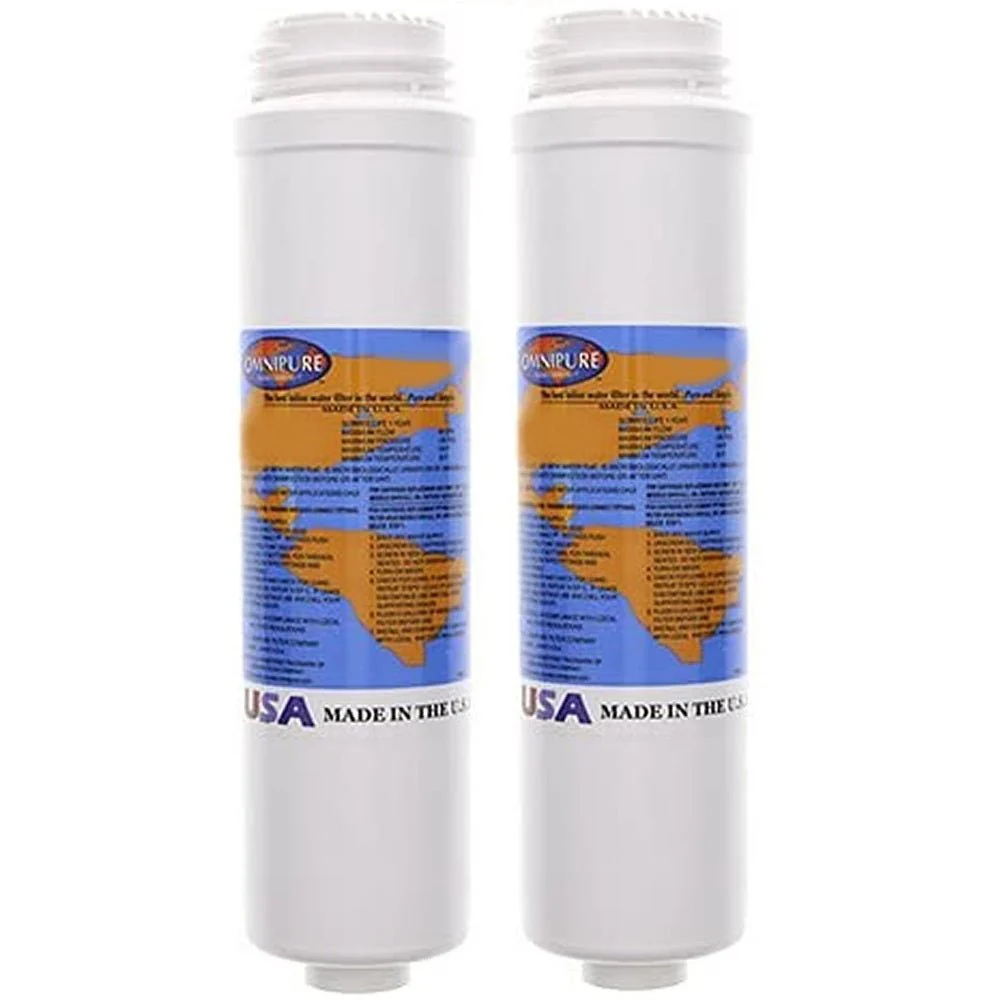

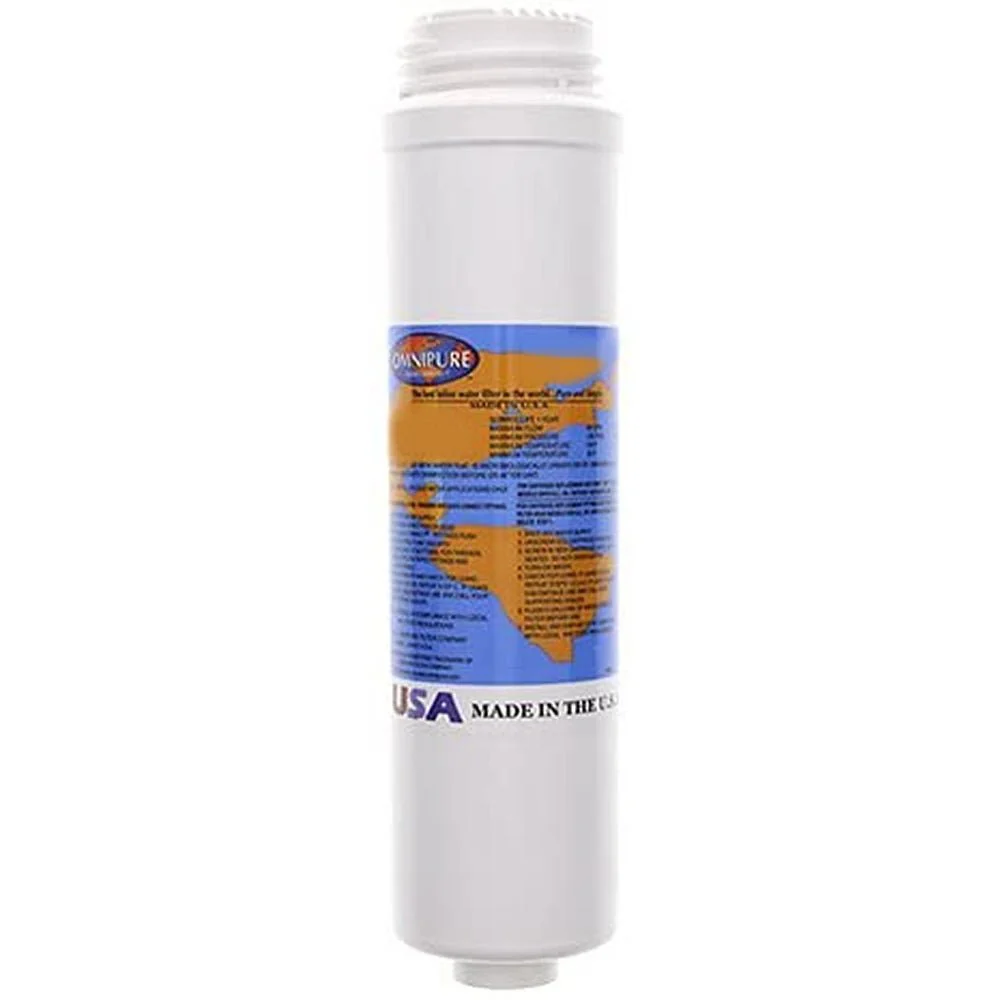

Omnipure - Q5528 - 10" x 2.5" Q-Series Twist Off T28 GAC Filter
Omnipure Q5528 Filter Details
| Model Number | Omnipure Q5528 |
| Dimensions | 10" L × 2.5" W |
| Filtration Media | Granular Activated Carbon (GAC) |
| Media Volume | 28.6 cubic inches |
| Flow Rate | 0.5 GPM |
| Service Life | 1 year or 2,000 gallons |
| Maximum Pressure | 125 PSI |
| Maximum Temperature | 100°F |
Replacing Your Q5528 Cartridge
- Turn off water supply to your system or appliance before beginning filter replacement.
- Grip the filter body and twist counterclockwise to disconnect from the Q-Series head. The T28 Twist Tap valve will automatically stop water flow during removal.
- Align the new Q5528 filter body with the Q-Series head and twist clockwise until hand-tight and fully seated.
- Turn water supply back on and check all connections for leaks. Run water for 2-3 minutes to flush the new carbon media.
Where the Q5528 Works
This is a replacement cartridge for existing Omnipure Q-Series systems and requires a compatible Q-Series head with T28 connection. Q-Series heads are available with 1/4" quick-connect fittings, 1/4" NPT female threads, or 3/8" NPT female threads. Common applications include under-sink filtration systems, reverse osmosis pre-filtration, refrigerators, ice makers, drinking fountains, and commercial beverage equipment. The Q5528 will not fit standard 10-inch housings or other filter series.
Omnipure Q5528 Filter Details
| Model Number | Omnipure Q5528 |
| Dimensions | 10" L × 2.5" W |
| Filtration Media | Granular Activated Carbon (GAC) |
| Media Volume | 28.6 cubic inches |
| Flow Rate | 0.5 GPM |
| Service Life | 1 year or 2,000 gallons |
| Maximum Pressure | 125 PSI |
| Maximum Temperature | 100°F |
Replacing Your Q5528 Cartridge
- Turn off water supply to your system or appliance before beginning filter replacement.
- Grip the filter body and twist counterclockwise to disconnect from the Q-Series head. The T28 Twist Tap valve will automatically stop water flow during removal.
- Align the new Q5528 filter body with the Q-Series head and twist clockwise until hand-tight and fully seated.
- Turn water supply back on and check all connections for leaks. Run water for 2-3 minutes to flush the new carbon media.
Where the Q5528 Works
This is a replacement cartridge for existing Omnipure Q-Series systems and requires a compatible Q-Series head with T28 connection. Q-Series heads are available with 1/4" quick-connect fittings, 1/4" NPT female threads, or 3/8" NPT female threads. Common applications include under-sink filtration systems, reverse osmosis pre-filtration, refrigerators, ice makers, drinking fountains, and commercial beverage equipment. The Q5528 will not fit standard 10-inch housings or other filter series.
Original: $22.34
-65%$22.34
$7.82Description
Omnipure Q5528 Filter Details
| Model Number | Omnipure Q5528 |
| Dimensions | 10" L × 2.5" W |
| Filtration Media | Granular Activated Carbon (GAC) |
| Media Volume | 28.6 cubic inches |
| Flow Rate | 0.5 GPM |
| Service Life | 1 year or 2,000 gallons |
| Maximum Pressure | 125 PSI |
| Maximum Temperature | 100°F |
Replacing Your Q5528 Cartridge
- Turn off water supply to your system or appliance before beginning filter replacement.
- Grip the filter body and twist counterclockwise to disconnect from the Q-Series head. The T28 Twist Tap valve will automatically stop water flow during removal.
- Align the new Q5528 filter body with the Q-Series head and twist clockwise until hand-tight and fully seated.
- Turn water supply back on and check all connections for leaks. Run water for 2-3 minutes to flush the new carbon media.
Where the Q5528 Works
This is a replacement cartridge for existing Omnipure Q-Series systems and requires a compatible Q-Series head with T28 connection. Q-Series heads are available with 1/4" quick-connect fittings, 1/4" NPT female threads, or 3/8" NPT female threads. Common applications include under-sink filtration systems, reverse osmosis pre-filtration, refrigerators, ice makers, drinking fountains, and commercial beverage equipment. The Q5528 will not fit standard 10-inch housings or other filter series.
